Honeywell IT-3200
POSMarket SKU: Z2359
This product has been replaced by the . If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

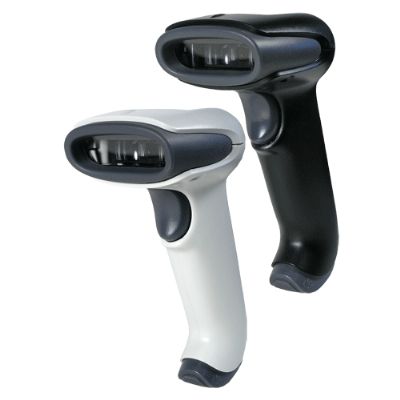

3200 delivers quality linear barcode scanning and user friendly ergonomics, combined in a solution that's affordable and dependable for a wide variety of applications. Whether you're automating a pen and paper process, or require a high-quality yet cost effective barcode scanner to replace your existing devices, the 3200 is an ideal solution.
Product Overview
- High Performance Hand Held Linear Imaging Scanner
- 100% Solid State Construction, No moving parts!
- Excellent tolerance to lateral hand motion, makes it much easier to use
- Bright Sharp Aiming Line
- Fast Decoding Rate
- Used Indoors and Outdoors in Bright Sunlight
- Programmable Optical and Audible Read Confirmation
- Exceptional Read Performance even on poorly printed or damaged barcodes
- Improved ability to read degraded and damaged bar-codes
- Powerful, Flexible Architecture
- Fully Programmable
- Hands Free Stand available
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Manufacturer | Honeywell, Inc. | |
| INPUT DEVICE | ||
| Connectivity Technology | wired | |
| TTL Decoding | decoded | |
| OK Notification | LED indicator, beeper | |
| PRINTER | ||
| Barcodes | China Post, Codabar, Code 11, Code 128, Code 3 of 9, Code 93, EAN/JAN, GS1 DataBar, Interleaved 2 of 5, Matrix 2 of 5, UPC | |
| BARCODE | ||
| Interface Type | USB | |
| Interface | USB | |
| Light Source Wave Length | 630 nm | |
| Barcodes | China Post, Codabar, Code 11, Code 128, Code 3 of 9, Code 93, EAN/JAN, GS1 DataBar, Interleaved 2 of 5, Matrix 2 of 5, UPC | |
| Print Contrast Signal (PCS) | 30% | |
| Max Working Distance | 9.8 in | |
| Skew (Degrees) | 55 | |
| Pitch (Degrees) | 55 | |
| Minimum Bar Width | 4 mil | |
| Features | Global Trade Item Number (GTIN), triggered | |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, GS1 DataBar, Codabar, Code 128, Code 11, Code 3 of 9, UPC, Interleaved 2 of 5, China Post | |
| Scan Mode | Single-pass | |
| OK Notification | Beeper, LED indicator | |
| Scan Speed | 200 scan / sec | |
| Connectivity Technology | Wired | |
| Scan Element Type | Linear imager - red LED | |
| TTL Decoding | Decoded | |
| MISCELLANEOUS | ||
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, EMC, UL 94 V-0, Sunrise 2005 | |
| Color | ivory | |
| Color Category | beige | |
| POWER | ||
| Electric Current Required | 235 mA (operating), 86 mA (standby) | |
| Electric Current Required | 235 mA (operating), 86 mA (standby) | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 0 - 95% | |
| Min Operating Temperature | 32 Degree F | |
| Max Operating Temperature | 122 Degree F | |
| MANUFACTURER WARRANTY | ||
| Type | 2 years warranty | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | handheld | |
| Scan Mode | single-pass | |
| Scan Element Type | linear imager | |
| Scan Speed | 200 scan/sec | |
| Lamp / Light Source Type | red LED | |
| HEADER | ||
| Brand | Honeywell | |
| Product Line | Honeywell | |
| Model | 3200 | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS & WEIGHT | ||
| Width | 2.7 in | |
| Depth | 3.7 in | |
| Height | 6 in | |
| Weight | 5.04 oz | |
| INTERFACE REQUIRED | ||
| Type | USB | |
| Total Qty | 1 | |
| CABLE DETAILS | ||
| Type | USB cable | |
| Included Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 5.04 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| SERVICE & SUPPORT | ||
| Type | 2 years warranty | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 4 ft to concrete | |
| SERVICE & SUPPORT DETAILS | ||
| Type | limited warranty | |
| Full Contract Period | 2 years | |
| GENERAL | ||
| Manufacturer | Honeywell, Inc. | |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
Honeywell IT3200 Datasheet | 301KB | Download |
