POSMarket SKU: Z8682

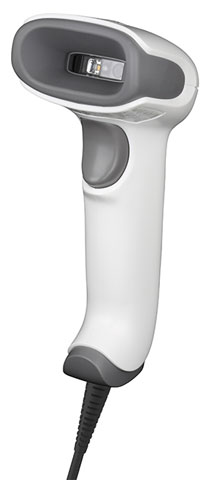

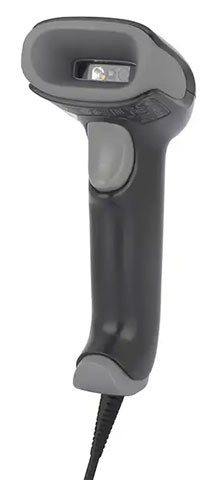

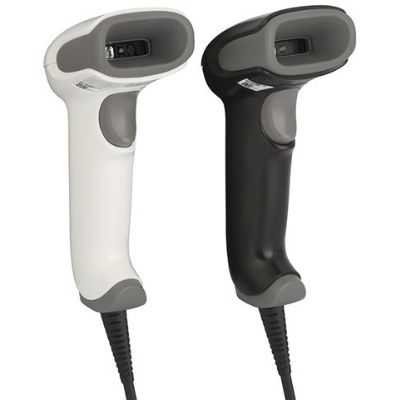

Honeywell designed the Voyager Extreme Performance XP 1470 series scanner for in-store retail workflows that require a highly accurate 1D/2D scanning solution in a durable form factor. Trust it for industry leading scanning capability on traditional barcodes and digital screens, even on damaged and difficult-to-read codes.
Dimensions | 62mm x 169mm x 82mm |
Input Voltage | 4.0V DC to 5.5V DC |
Operating Power | 2 W (400 mA @ 5V DC) |
Standby Power | 0.45 W (90 mA @ 5V DC) |
Host System Interfaces | USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485) |
Electrostatic Discharge (ESD) (Scanners and Cradles) | +/- 8 kV indirect coupling plane, +/- 15 kV direct air |
Humidity | Up to 95% relative humidity, non-condensing |
Drop | Designed to withstand 30 1.8 m (6 ft) drops to concrete |
Tumble | Designed to withstand 1,000 tumbles from 0.5 m (1.64 ft) |
Environmental Sealing | IP40 |
Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
Scan Pattern | Area Image (1040 x 720 pixel array) |
Motion Tolerance | 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus |
Scan Angle | Horizontal: 39.2 degrees nominal Vertical: 27.4 degrees nominal |
Roll, Pitch, Skew | +/- 180 degrees, +/- 65 degrees, +/- 70 degrees |
Barcode Types | Reads standard 1D, PDF, 2D, and DotCode symbologies |
Note | Decode capabilities dependent on configuration. |
Warranty | 3-year factory warranty |
Decode Ranges | 5 mil Code 39: 20 mm-205 mm (0.8 in-8.1 in) 13 mil UPC:18 mm - 400 mm (0.7 in -15.8 in) 6.7 mil PDF417: 15 mm -185 mm (0.6 in -7.3 in) 10 mil DM: 10 mm - 165 mm (0.4 in - 6.5 in) 20 mil QR: 5 mm €“ 325 mm (0.2 in - 12.8 in) |
Model | Description | Price | Stock | |
---|---|---|---|---|
1470G2D-2USB-1-R | 1470G USB Kit. Includes 2D Scanner, USB Interface Cable (1.5M) and Flexible Hands Free Presentation Stand, Black | $153.07 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Honeywell Software license EASYGS1 | Software EasyGS1 license key for Xenon, Vuquest,1602g, Voyager 14xxG | $183.43 | View Product |
Honeywell Edge Service Addon Scanner Adv Exch | Edge Service, Advanced Exchange, Scanner | $37.95 | View Product |
Honeywell Edge Service Addon Scanner Accessory 1y | Edge Service Addon Scanner Accessory 1y | $7.59 | View Product |
Honeywell Edge Service Gold 1470 5d 5y | Edge Service Gold 1470 5d 5y | $73.37 | View Product |
Honeywell STAND 15CM BLK VOYAGER 1250 1450 1470 | STAND 15CM BLK VOYAGER 1250/1450/1470 | $45.54 | View Product |
Honeywell Dock Crg Batt 4-Bay Voyager Granit Xenon | Dock Crg Batt 4-Bay Voyager/Granit/Xenon | $531.30 | View Product |
Honeywell PSU 5.2V | Psu 5.2V 1a 1200/1470/1950/7120/9590 Etc | $63.25 | View Product |
Filename | Size | ||
---|---|---|---|
![]() |
Voyager XP 1470G Brochure | 546KB | Download |
![]() |
Voyager XP 1470G User Guide | 3MB | Download |
![]() |
Voyager XP 1470G Quick Start Guide | 890KB | Download |
