HP Linear Barcode Scanner II

$CALL

POSMarket SKU: Z7489

Z1Z36AA: HP 1D Linear Imager, USB interface

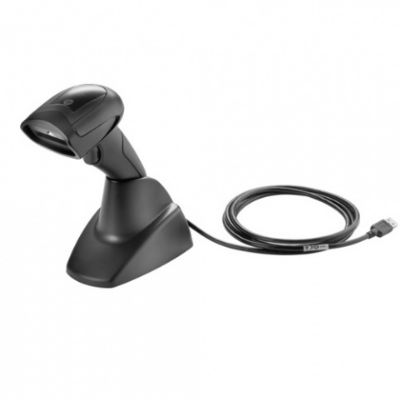

Deliver an efficient customer experience with the handheld HP Linear Barcode Scanner II which reads common 1D barcodes including barcodes from mobile devices and keeps your associates comfortable with an ergonomic design that can be used by hand or set it in the stand for presentation use.

Product Rating
Product Overview
Compatible with print and digital codes
Quickly scan common 1D barcodes, GS1 DataBar linear codes, and barcodes on mobile devices with a long depth of field (DOF) and wide field of view (FOV) that reads longer 1D barcodes at a closer distance. Intuitive feedback confirms a successful read.

Scan on the move
Help ensure accurate scans from mobile devices and on conveyor belts during checkout with enhanced motion-tolerance technology.

Comfortable to use
Use by hand with the redesigned ergonomic grip, or set it in the stand for fixed-location scanning.

Simple to set up
Plug the attached USB cable into your retail system. The extended 6.5 foot length gives you room to maneuver to hard-to-reach barcodes.

Supported by HP
Rest easy that your IT investment is supported by a three-year standard limited warranty.

What's in the box
HP Linear Barcode Scanner II, Scanner Stand, USB Cable.
Product Specifications
Linear Imager Linear Imager
Light source LEDs (RED) 610 - 650 nm
Read Rate 400 reads/sec
Nominal working distanceDepth of Field Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
Print contrast 25% minimum reflectance
Roll (tilt) ± 45°
Pitch ± 65°
Skew ± 70°
1D decode symbologiesCODE 39
CODE 93
CODE 128
EAN-8 EAN-13
GS1 DataBar Expanded
GS1 Databar Omni-directional
UPC-A UPC-E
PDF417
ABC CODABAR
Codabar CODE 11
CODE 32
CODE 39 CIP
CODE 39 Trioptic
Follet 2 of 5
GS1 DataBar Limited
Industrial 2 of 5
Interleaved 2 of 5
ISBT 128
MSI
Plessey
Standard 2 of 5
China Postal
Dimensions (W x D x H) 6.4 x 3.6 x 1.6 in (16.3 x 9.1 x 4.1 cm)
WeightApproximately 5.3 ounces (150 g)
Cable length6.5 ft. (1.9 m)
ColorHP Black
Cable USB
Temperature
Operating32 to 122 °F (0 to 50 °C)
Storage/transport -40 to 158 °F (-40 to 70 °C)
Humidity (non-condensing) 90%
Current Operating (Typical): 140mA @ 5VDC Standby/Idle (Typical): 50mA@5VDC
Input Voltage 4.75 to 14 VDC +/-10%
Drivers Windows UBB HID-KB and OPOS & JPOS (via USB-COM mode drivers)
Compatible with:
Windows Windows 10 IoT Enterprise for Retail (64-bit)
Windows 10 Pro (64-bit)
Windows Embedded Industry 8.1 Pro Retail (64-bit)
Windows 7 Professional (32-bit and 64-bit)
Windows Embedded POS Ready 7 (32-bit and 64-bit)
Windows Embedded POS Ready 2009
Windows 8.1 Professional (64-bit)
LinuxRed Hat/CentOS 5 and 6 (32-bit and 64-bit)
Suse Linux Enterprise POS 11 (32-bit and 64-bit)
Ubuntu 12.04, 14.04 (32-bit and 64-bit)
Agency Certifications C-Tick, KCC, BSMI, VCCI, CSA, CE, FCC
Option Kit Contents HP Linear Barcode Scanner II, Scanner Stand, USB Cable.
ModelDescriptionPriceStock
Z1Z36AA HP 1D Linear Imager, USB interface $CALL
Call
ModelDescriptionPrices From
HP Care Pack Next Business Day Hardware Support, Hardware Only 5 year onsite next business day warranty, Dekstop PC only. $204.60 View Product
HP Care Pack Priority Access Plus Service HP Priority Access Plus Service provides all features of HP Priority Access Service such as direct access to highly skilled remote support agents and a globally consistent experience available in over 60 countries and more than 20 languages. $99.00 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document HP Linear Barcode Scanner II QuickSpecs 542KB Download
