Newland HR20
POSMarket SKU: Z20450
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The HR20 is specifically developed to provide a cost-effective data capture solution that allows customers to enjoy the capabilities of a 2D scanner for the price of a 1D scanner. This without making any compromises on scan performance, ergonomics or design.
Product Overview
The HR20 is specifically developed to provide a cost-effective data capture solution that allows customers to enjoy the capabilities of a 2D scanner for the price of a 1D scanner. This without making any compromises on scan performance, ergonomics or design.
Elegant appearance.
Blending ergonomics and aesthetics in its design, the HR20 ensures operator comfort and productivity for intensive handheld scanning. The scanner looks great at any point of sale and is ideal for applications that require both scanning from paper and screen, like mobile payment or customer loyalty.
Durable construction.
The HR20 has an IP42 rating and is drop resistant up to 1.5m. Its durable housing guarantees optimal protection.
Outstanding performance.
Equipped with Newland’s third-generation decoder chip, the HR20 can effortlessly capture high-density, high volume and distorted barcodes printed on paper or displayed on a screen.

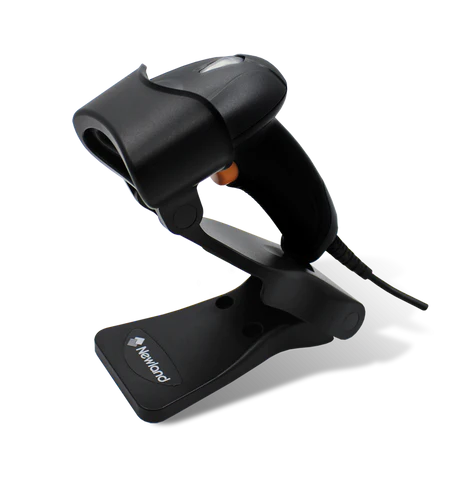

Foldable smart stand available.
A foldable smart stand is available either as an accessory or as a set that includes both the scanner and stand.
Application scenarios.
Point of sale/retail, product traceability, track & trace, healthcare, inventory management, ticket / voucher management, general office automation.
Product Specifications
| Image Sensor | 640×480 CMOS |
| Illumination | White LED |
| Resolution | =3mil |
| Scan Angle | Pitch: ±55°, Skew: ±55°, Roll: 360° |
| Min. Symbol Contrast | 20% |
| Field of View | Horizontal 45°, Vertical 34° |
| Aiming | Red LED (625nm) |
| Dimensions (L×W×H) | 145×101×68mm |
| Weight | 111g |
| Notification | Beep, LED |
| Interfaces | RS-232, USB |
| Operating Voltage | 5VDC±5% |
| Rated Power Consumption | 950mW (typical) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| ESD | ±15 KV (air discharge); ±8 KV (direct discharge) |
| Drop | 1.2m |
| Sealing | IP42 |
| Certificates & Protection | FCC Part15 Class B, CE EMC Class B, RoHS |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NLS369-10090 | 2D SCANNER WITH 2M STRAIGHT USB CABLE FOLDABLE STAND BLACK HOUSING SMART VERSION 640*480 | $115.50 | Add to Cart | |
| NLS369-10080 | 2D SCANNER WITH 2M STRAIGHT USB CABLE BLACK HOUSING SMART VERSION 640*480 CPU RED DOT AIMING | $103.13 | Add to Cart |
