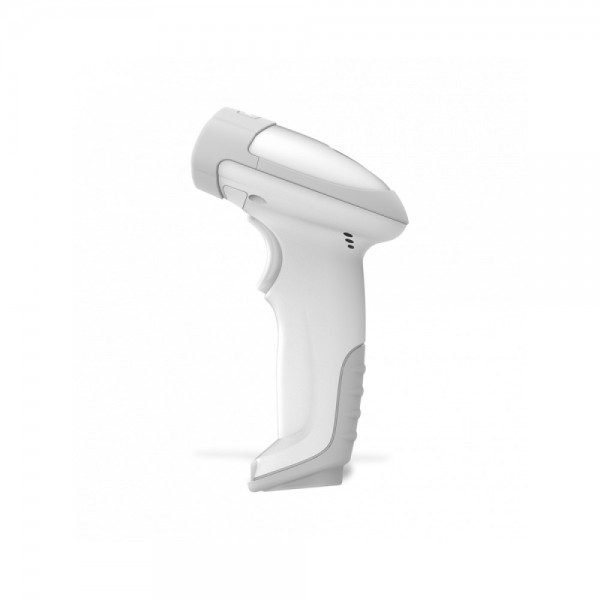

Newland HR32-HC
POSMarket SKU: Z20447
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The HR3280-HC in a housing created with nSHIELD Antimicrobial agent, features a disinfectant-ready enclosure purpose-built to resist the harmful effects of harsh cleaning agents commonly used in healthcare environments and minimize the spread of infectious diseases.
Product Overview
The HR3280-HC in a housing created with nSHIELD™*Antimicrobial agent, features a disinfectant-ready enclosure purpose-built to resist the harmful effects of harsh cleaning agents commonly used in healthcare environments and minimize the spread of infectious diseases.
Ergonomic Design for Clinician
Blending ergonomic and aesthetics in its design, the HR3280-HC not only ensures operator comfort and productivity for intensive hand-held scanning but also meets the aesthetic needs of the healthcare environments.
Humanized Illumination
The HR3280-HC can be set white and red led according to different workplaces. Not only relieving the visual fatigue but also improving working efficiency.
Outstanding Performance
Includes core-technology, which is independently designed and manufactured by Newland Auto-ID. The HR3280-HC can effortlessly capture high-density, high volume and distorted barcodes printed on paper or displayed on a screen.
Powerful Data Editing Function
The HR3280-HC allows customizing scanned data with ease and provides supporting software to address diverse application needs.
Product Specifications
| Image Sensor | 1280×800 (megapixel) CMOS |
| Illumination | Red LED/ White LED |
| Resolution | =3mil |
| Scan Angle | Pitch: ±55°, Skew: ±55°, Roll: 360° |
| Min. Symbol Contrast | 25% |
| Field of View | Horizontal 39°, Vertical 24° |
| Aiming | Green LED |
| Dimensions (L×W×H) | 159.0×113.5×73.3mm |
| Weight | 162g |
| Notification | Beep, LED |
| Rated Power Consumption | 1289.6mW (typical) |
| Interfaces | RS-232, USB |
| Operating Voltage | 5VDC±5% |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| ESD | ±15 KV (air discharge); ±8 KV (contact discharge) |
| Drop | 1.5m |
| Sealing | IP42 |
| Approved Cleaners | Disinfectant Ready. Refer to the user guide for the list of approved cleaners. |
| Certificates & Protection | FCC Part15 Class B, CE EMC Class B, RoHS |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NLS369-10030 | BT 2D IMAGER IP42 HEALTHCARE VERSION 2M USB CABLE POWER ADAPTER TWO-POSITION CHARGING/TRANSMITTER | $455.13 | Add to Cart | |
| NLS369-10020 | 2D IMAGER HEALTH CARE DISINFECTANT READY HOUSING BLUETOOTH COLOR WHITE INCL 2M STRAIGHT USB CABLE | $224.13 | Add to Cart |
Product Accessories
Product Downloads
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
