POSMarket SKU: Z20451
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

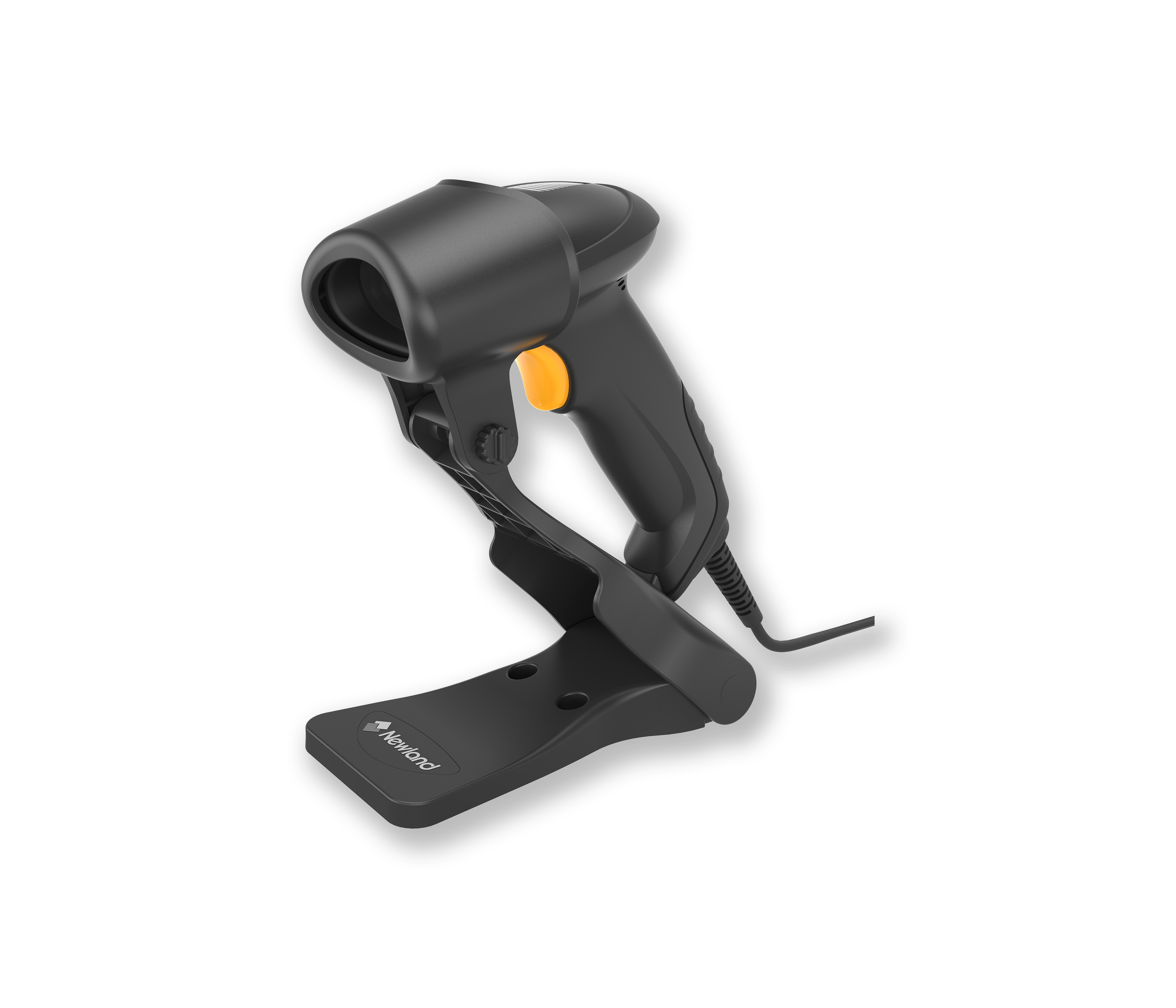

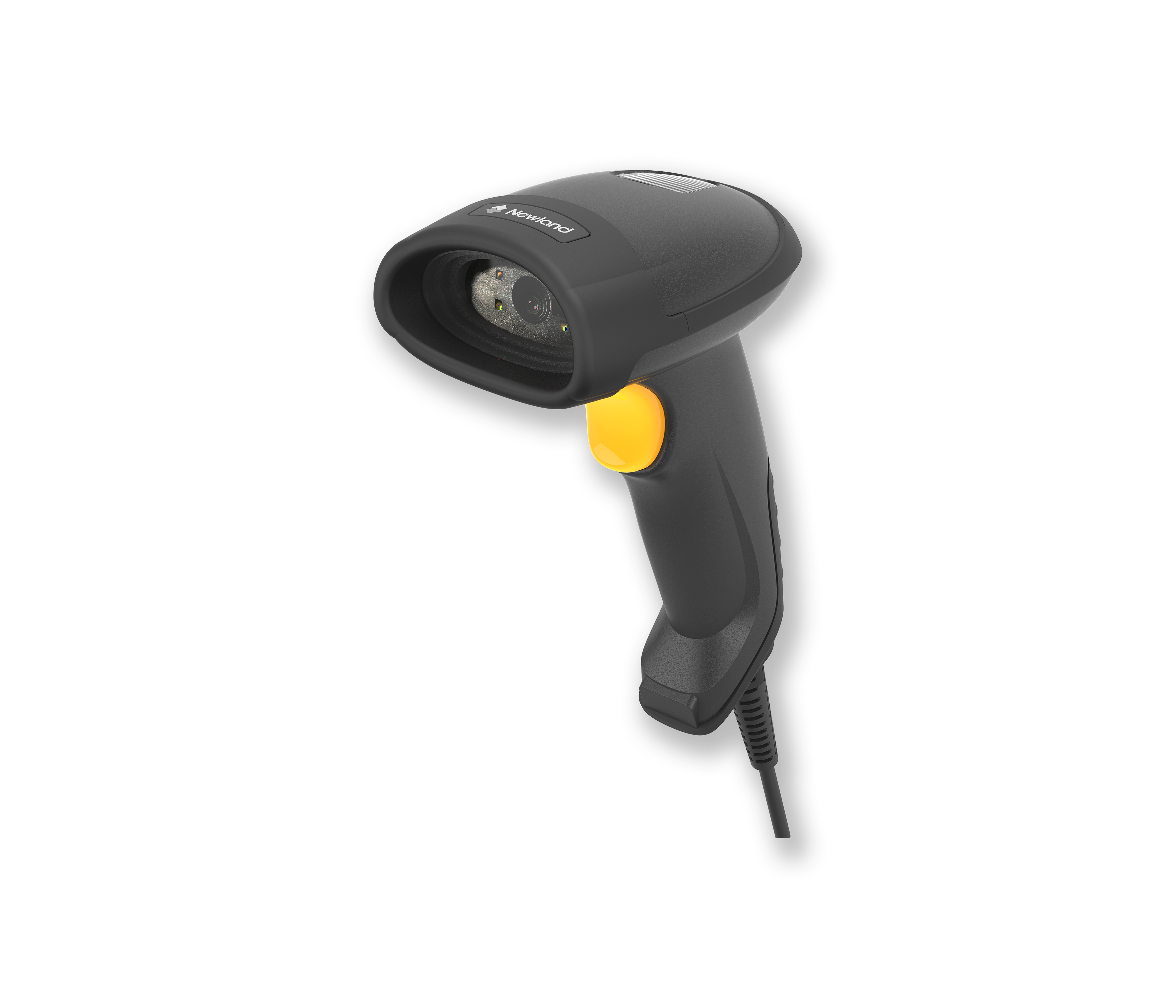

The HR32 Marlin Corded is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high resolution codes, with impressive speed and ease.
| 1D | All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. |
| 2D | All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode. |
| Image Sensor | CMOS 1280 x 800 |
| Illumination | Red LED (625±10 nm) / White LED |
| Aiming | Green LED |
| Scan Modes | Trigger (Level, Pulse), Sense, Continuous Mode |
| Scan Rate | 60 frames per second |
| Depth of Field EAN 13 (13mil) | 45-510mm |
| Depth of Field Code 39 (5mil) | 75-220mm |
| Depth of Field PDF417 (6.67mil) | 70-215mm |
| Depth of Field DataMatrix (10mil) | 50-220mm |
| Depth of Field QR (15mil) | 20-330mm |
| Processor | 1GHz, X1500 |
| Minimal Print Contrast | 25% |
| Scan Angle Roll | 360° |
| Scan Angle Pitch | ±55° |
| Scan Angle Skew | ±55° |
| Field of View Horizontal | 39° |
| Field of View Vertical | 24° |
| Dimensions (mm) | 113.5(W) × 73.3(D) × 159.0(H) |
| Weight | 162g |
| Material | PC, ABS |
| Buttons | Trigger |
| Interfaces | RS-232, USB |
| Notifications | Beep, LED indicator |
| Input Voltage | 5VDC ± 5% |
| Current @ 5VDC Operating | 238.2mA (typical), 260.5mA (max.) |
| Current @ 5VDC Standby | 71.3mA |
| Power Consumption | 1289.6mW (typical) |
| Power Supply Input | DC5V, 1.5A |
| Power Supply Output | AC100~240V, 50~60Hz |
| Ambient Light | 0 ~ 100000 lux (natural light) |
| Operating Temperature | -20? to 60? (-4°F to 140°F) |
| Storage Temperature | -40? to 70? (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| Electro Static Discharge (ESD) | ±15 kV (air discharge), ±8 kV (direct discharge) |
| Drop | 1.5m |
| IP Rating | IP42 |
| Configuration Tools | EasySet |
| Hardware | CE, FCC, RoHS, IEC62471, KC |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| NLS369-10130 | BLUETOOTH SCANNER 2D IMAGER IP42 INCL CABLE (USB) CHARGING STAND BLUETOOTH DONGLE | $327.25 | Add to Cart | |
| NLS369-10110 | AREA IMAGER HANDHELD READER WITH 2M STRAIGHT RS232 CABLE POWER ADAPTER BLACK HOUSING | $185.63 | Add to Cart | |
| NLS369-10100 | AREA IMAGER HANDHELD READER WITH 3M COILED USB CABLE BLACK HOUSING | $154.00 | Add to Cart |
