POSMarket SKU: Z4560
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

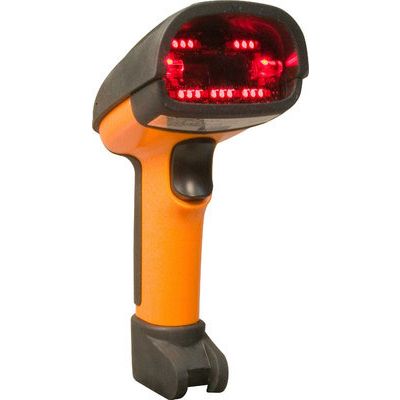

The Metrologic MS1890 Focus separates itself with patented Code Select technology which allows the imager to capture up to seven barcodes in a single flash and then decode them in any pre-determined order. TotalFreedom an open system architecture is also available with the MS1890 Focus. Total Freedom offers unlimited possibilities for developing value-added custom application modules embedded directly into the imager instead of the host system. For image-capture applications the MS1890 Focus provides a wide array of outputs by combining a high-resolution imaging sensor with a powerful processor. With its arsenal of features and an all inclusive kit the MS1890 Focus is the all-in-one scanner built to meet the needs of any demanding environment.
GENERAL | ||
Packaged Quantity | 1 | |
Type | Barcode scanner - handheld | |
Manufacturer | Honeywell, Inc. | |
POWER DEVICE | ||
Power Consumption Operational | 2 Watt | |
INPUT DEVICE | ||
Connectivity Technolog | ywired | |
TTL Decoding | decoded | |
OK Notification | LED indicator, beeper | |
PRINTER | ||
Barcodes | Aztec code, Data Matrix, EAN-UCC Composite, GS1 DataBar, MaxiCode, MicroPDF417, PDF417, QR code | |
BARCODE | ||
Interface Type | USB | |
Scan Field Width | 1.93 in - 10.39 in | |
Interface | USB | |
Light Source Wave Length | 645 nm | |
Barcodes | Aztec code, Data Matrix, EAN-UCC Composite, GS1 DataBar, MaxiCode, MicroPDF417, PDF417, QR code | |
Print Contrast Signal (PCS) | 20% | |
Max Working Distance | 11.8 in | |
Skew (Degrees) | 75 | |
Pitch (Degrees) | 75 | |
Minimum Bar Width | 5 mil | |
Min Scan Field | 1.93 in | |
Max Scan Field | 10.39 in | |
Features | image capturing | |
Decode Capability | GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, EAN-UCC Composite | |
Scan Mode | Single-pass | |
OK Notification | Beeper, LED indicator | |
Connectivity Technolog | yWired | |
Scan Element Type | 2D imager | |
TTL Decoding | Decoded | |
MISCELLANEOUS | ||
Color | onyx black, orange | |
Color Category | black, orange | |
POWER | ||
Electric Current Required | 160 mA (standby), 400 mA (peak) | |
Electric Current Required | 160 mA (standby), 400 mA (peak) | |
ENVIRONMENTAL PARAMETERS | ||
Humidity Range Operating | 0 - 95% | |
Min Operating Temperature | 32 degree F | |
Max Operating Temperature | 122 degree F | |
SCANNER | ||
Type | barcode scanner | |
Form Factor | handheld | |
Scan Mode | single-pass | |
Scan Element Type | 2D imager | |
HEADER | ||
Brand | Honeywell | |
Product Line | Honeywell | |
Model | MS1890 Focus | |
Packaged Quantity | 1 | |
Compatibility | PC | |
DIMENSIONS & WEIGHT | ||
Width | 3.1 in | |
Depth | 4.4 in | |
Height | 7.2 in | |
Weight | 10.02 oz | |
INTERFACE REQUIRED | ||
Type | USB | |
Total Qty | 1 | |
PHYSICAL CHARACTERISTICS | ||
Weight | 10.02 oz | |
SLOT REQUIRED | ||
Type | none | |
SHOCK & VIBRATION TOLERANCE | ||
Drop Specification | 6.5 ftGENERAL | |
Manufacturer | Honeywell, Inc. |
Filename | Size | ||
---|---|---|---|
![]() |
ms1890 data sheet | 778KB | Download |
