POSMarket SKU: Z2958
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

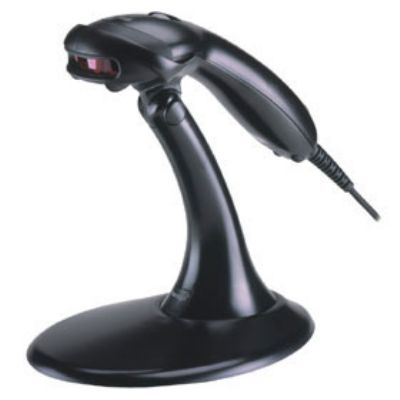

With a futuristic design and high-performance scanning technology, the MS9520 is clearly the most advanced auto-triggered scanner on the market today. Enabled for both In-stand and Out-of-stand operation, Voyager can be used as a handheld and fixed presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n Pieces data editing utility and an Electronic Article Surveillance EAS option. The MS9520 Voyager is perfect for many applications including point-of-sale inventory control and commercial-warehouse applications. With its aggressive performance and comfortable design Voyager is far and away the most advanced scanner on the market today.
GENERAL | ||
Packaged Quantity | 1 | |
Manufacturer | Honeywell, Inc. | |
POWER DEVICE | ||
Type | none | |
INPUT DEVICE | ||
Connectivity Technology | wired | |
TTL Decoding | decoded | |
OK Notification | LED indicator, beeper | |
PRINTER | ||
Barcodes | GS1 DataBar | |
BARCODE | ||
Interface Type | serial RS-232 | |
Scan Field Width | 0.51 in - 7.99 in | |
Interface | RS-232 | |
Light Source Wave Length | 650 nm | |
Barcodes | GS1 DataBar | |
Print Contrast Signal (PCS) | 35% | |
Skew (Degrees) | 52 | |
Pitch (Degrees) | 68 | |
Minimum Bar Width | 5 mil | |
Min Scan Field | 0.51 in | |
Max Scan Field | 7.99 in | |
Decode Capability | GS1 DataBar | |
Scan Mode | Single-pass | |
OK Notification | Beeper, LED indicator | |
Scan Speed | 72 scan / sec | |
Connectivity Technology | Wired | |
Scan Element Type | Visible laser diode | |
TTL Decoding | Decoded | |
BATTERY | ||
Form Factor | none | |
MISCELLANEOUS | ||
Color | black | |
Color Category | black | |
ENVIRONMENTAL PARAMETERS | ||
Humidity Range Operating | 5 - 95% | |
Min Operating Temperature | 32 Degree F | |
Max Operating Temperature | 104 Degree F | |
MANUFACTURER WARRANTY | ||
Service & Support | Limited warranty - 5 years | |
Type | 5 years warranty | |
SCANNER | ||
Type | barcode scanner | |
Form Factor | portable | |
Scan Mode | single-pass | |
Scan Element Type | visible laser diode | |
Scan Speed | 72 scan/sec | |
HEADER | ||
Brand | Honeywell | |
Product Line | Honeywell Voyager | |
Model | 9520 | |
Packaged Quantity | 1 | |
Compatibility | PC | |
DIMENSIONS & WEIGHT | ||
Width | 3.1 in | |
Depth | 7.8 in | |
Height | 2.2 in | |
Weight | 5.26 oz | |
INTERFACE REQUIRED | ||
Type | RS-232 | |
Total Qty | 1 | |
PHYSICAL CHARACTERISTICS | ||
Weight | 5.26 oz | |
SLOT REQUIRED | ||
Type | none | |
SERVICE & SUPPORT | ||
Type | 5 years warranty | |
SERVICE & SUPPORT DETAILS | ||
Type | limited warranty | |
Full Contract Period | 5 years | |
GENERAL | ||
Manufacturer | Honeywell, Inc. |
Filename | Size | ||
---|---|---|---|
![]() |
ms9520 data sheet | 377KB | Download |
