RapidPOS HR22
$CALL
POSMarket SKU: Z8753
SCNLHR22: HR-22 2D Handheld Scanner Kit. Includes USB Interface Cable and Stand

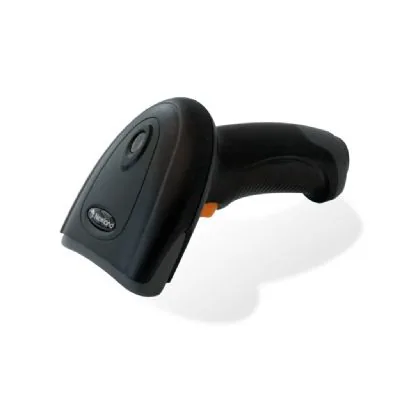

Newland HR22 Doroda QR Codes 2D Handheld Barcode Scanner
Product Overview
The Newland HR22 2D Barcode scanner is a cost effective solution that allows you to utilise 2D barcode capture for the price of a 1D Scanner. The HR22 utilises an advanced 3rd generation decoder chip to provide excellent scanning performance and is ideal for applications such as Retail stores, inventory management and office automation.
Cost-effective
The HR22 Dorada is specifically developed to provide a cost-effective data capture solution that allows customers to enjoy the capabilities of a 2D scanner for the price of a 1D scanner. This without making any compromises on scan performance, ergonomics or design.
Elegant Appearance
Blending ergonomics and aesthetics in its design, the HR22 Dorada ensures operator comfort and productivity for intensive hand-held scanning. The scanner is ideally suited for applications at the point-of-sale and O2O (Online2Offline).
Outstanding Performance
Equipped with a third-generation decoder chip, the HR22 Dorada can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen/mobile phones.
Durable Construction
The HR22 Dorada has an IP42 rating and is drop resistant up to 1.5m. Its durable housing guarantees optimal protection.
Application scenarios
Point of sale/retail, product traceability, track & trace, healthcare, inventory management, ticket / voucher management, general office automation.
Cost-effective
The HR22 Dorada is specifically developed to provide a cost-effective data capture solution that allows customers to enjoy the capabilities of a 2D scanner for the price of a 1D scanner. This without making any compromises on scan performance, ergonomics or design.
Elegant Appearance
Blending ergonomics and aesthetics in its design, the HR22 Dorada ensures operator comfort and productivity for intensive hand-held scanning. The scanner is ideally suited for applications at the point-of-sale and O2O (Online2Offline).
Outstanding Performance
Equipped with a third-generation decoder chip, the HR22 Dorada can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen/mobile phones.
Durable Construction
The HR22 Dorada has an IP42 rating and is drop resistant up to 1.5m. Its durable housing guarantees optimal protection.
Application scenarios
Point of sale/retail, product traceability, track & trace, healthcare, inventory management, ticket / voucher management, general office automation.
Product Specifications
| Performance | |
| Processor | 0390 Chip +MCU |
| Image Sensor | E2 640*480 |
| Illumination | Red LED (625 +/-10nm) |
| Aiming | Red LED (625 +/-10nm) |
| Depth of Field EAN13 (13mil) | 40-355mm |
| Depth of Field CODE 39 (5mil) | 28-155mm |
| Depth of Field PDF417 (6.67mil) | 28-95mm |
| Depth of Field Data Matrix (10mil) | 25-95mm |
| Depth of Field QR (15mil) | 25-150mm |
| Minimal Print Contrast | 25% |
| Scan Angle Roll | 360 degrees |
| Scan Angle Pitch | +/-60 degrees |
| Scan Angle Skew | +/-55 degrees |
| Field of View Horizontal | 44 degrees |
| Field of View Vertical | 33 degrees |
| Scan Modes | Trigger(Level,Pulse),Sense,Continuous Mode,Batch Mode |
| Scan Rate | 100 frames per second |
| Data capture | |
| 1D | Code 128 UCC/EAN-128 AIM-128 EAN-8 EAN-13 ISBN/ISSN UPC-E UPC-A Interleaved 2 of 5 Febraban ITF-6 ITF-4 Matrix 2 of 5 Industrial 25 Standard 25 Code 39 Code 32 Codabar Code 93 Code 11 Plessey MSI-Plessey GS1-DataBarTM(RSS) (RSS-14,RSS-Limited, RSS-Expand) |
| 2D | PDF417 QR Code (QR1/2, Micro) Data Matrix (ECC200, ECC000,050,080, 100, 140) |
| Physical | |
| Dimensions (mm) | 145 x 100 x 68mm |
| Weight | 165g |
| Material | PC,ABS |
| Buttons | Trigger |
| Interfaces | USB |
| Notifications | Beep, LED indicator |
| Input Voltage | 5VDC +/-5% |
| Current @ 5VDC Operating | 140 +/-15mA |
| Current @ 5VDC Standby | 14.3 +/-2mA |
| Power Supply Input | DC5V, 1.5A |
| Power Supply Output | AC100~240V, 50~60Hz |
| Environmental | |
| Operating Temperature | -20C to 50C |
| Storage Temperature | -40C to 70C |
| Humidity | 5%~95% (non-condensing) |
| Electro Static Discharge (ESD) | +/-8 KV (direct discharge) +/-15 KV (air discharge) |
| Drop | 1.5m |
| Sealing | IP42 |
| Accessories | |
| Standard | USB Cable Stand |
| Certifications | |
| Certifications | CE,FCC,RoHS,EN 62471 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| SCNLHR22 | HR-22 2D Handheld Scanner Kit. Includes USB Interface Cable and Stand | $CALL |
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
HR22 Dorada Brochure | 2MB | Download |
|
HR22 User Manual | 3MB | Download |
