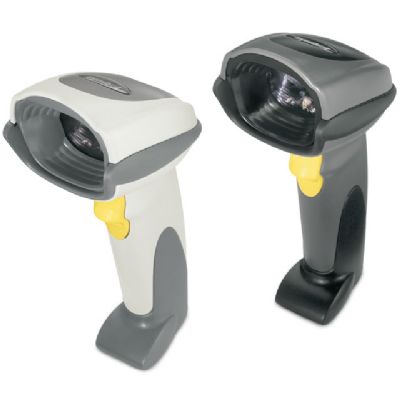

Symbol DS6607

POSMarket SKU: Z4743

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

Faster Digital Scanning. The DS6607 with its CCD sensor is ideal for capturing linear and 2D barcodes as well as image capture and transfer. A USB connection insures quick data communications. The DS6607 features omnidirectional reading making scans faster and speeding up inventory and checkout processes. The DS6607's sturdy construction makes it perfect for retail point of sale stations.

Product Rating
Product Overview
The DS 6607 barcode scanner from Symbol uses digital imaging technology to accurately capture and transfer images (such as for digital document storage) as well as all types of two-dimensional (2D) and one-dimensional (1D) barcodes. The DS 6607 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omnidirectional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 6607 offers USB functionality and a fast transfer rate.

Capture Data and Images with One Multi-Use Scanning Device
The DS6607 from Symbol Technologies provides unmatched performance in the digital scanning of images and one-dimensional (1D) and two-dimensional (2D) barcodes. Built to read barcodes omni-directionally, the DS6607 improves productivity for all data capture activities across your enterprise.

These digital scanners offer true flexibility. With the optional Intellistand, you can automatically switch between hands-free and hand-held scanning without having to scan a programming barcode, saving time and improving efficiency.

Increase Productivity by Reducing Scanning and Decoding Times
The omni-directional scanning capabilities of the DS6607 make the tasks of scanning and decoding simple - just point and shoot. No matter how a barcode is oriented, the DS6607 delivers a quick, accurate read. The intuitive, laser-generated aiming pattern indicates the full scanning field for additional scanning and decoding ease, leading to improved productivity. With a wide working range, the DS6607 improves throughput in the most challenging data capture environments. More items get scanned with less time spent preparing to scan or rescanning after errors.

Experience Laser-Like Scanning with the Benefits of Digital
As the supply chain expands, so does the need for tracking more information about each item. By accurately reading 2D and 1D symbologies and capturing images, the DS6607 helps you manage mixed-use reading requirements without any add-on devices. Its laser-like read rates and unmatched quality let you capture barcodes quickly, improving overall productivity.

Cost-Effective Digital Scanner Meets Needs of Today and Tomorrow
As scanning requirements continue to change, the DS6607 is built to support those changes. It connects to a range of hosts with a single device, letting you use your current system while allowing for migration in the future - and that protects your investment.

The DS6607 provides accurate and cost-effective code-reading capabilities for retail, light manufacturing, government, healthcare, postal and lottery applications. In addition to advanced data capture technology, Symbol's end-to-end solutions integrate ruggedized mobile computers and scanners, wireless infrastructure, enabling software and high-ROI applications from our business partners. Symbol Enterprise Mobility Services are designed to ensure that every aspect of your mobility solution - from defining your business requirements to ongoing service and support - works seamlessly and at maximum efficiency.

Product Specifications
Physical Characteristics
Dimensions 6.55 in. H x 2.82 in. W x 4.72 in. D16.64 cm H x 7.16 cm W x 11.99 cm
Weight (without cable)6.04 oz./181.4 gm
Input Voltage5 volts +/- 10%
Operating Current250mA (average)
Power SourcesDepending on host: Host power//External power supply
ColorsCash Register White or Twilight Black
Performance Characteristics
Light Source650 nm visible laser diode
Resolution640 x 480
Minimum Element Width5 mil/0.127 mm
Nominal Working DistanceFrom 1 in./ 2.5 cm to 14 in. /35 cm on 100% UPC/EAN symbols
Print Contrast25% minimum reflective difference
Roll (Tilt) 1+/- 180 degrees from normal
Pitc0h 2+/- 60 degrees from normal
Skew (Yaw) 3+/- 50 degrees from normal
Decoding Capability
1D CodesUPC.EAN, UPC.EAN with Supplementals, UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5,Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
2D CodesPDF417, microPDF417, MaxiCode, DataMatrix (ECC 2000), Composite Codes, QR Code
Postal CodesU.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Dutch Postal
Interfaces SupportedRS232, Keyboard Wedge, Wand Emulation, Scanner Emulation, IBM 468X/469X, USB and Synapse
User Environment
Operating Temperature32 to 122 F/0 to 50 C
Storage Temperature-40° to 158 F/-40 to 70 C
Humidity5% to 95% relative humidity, noncondensing
Drop SpecificationsMultiple 6-foot (1.8 m) drops to concrete
Ambient Light ImmunityImmune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight.
Sunlight10,000 ft. candles/107,644 LUX
Electrostatic DischargeConforms to 15 kV air discharge and 8 kV of contact discharge
Regulatory Information
Electrical SafetyCertified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
Laser SafetyCDRH Class II, IEC Class 2 EMI/RFI FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA
Product Configurations
No configurations found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Symbol DS6600 Data Sheet 652KB Download
