Datalogic DS-5100

$3,403.13 (incl. GST)

POSMarket SKU: Z14152

931061344: DS5100-1200 Medium Range Linear Laser Serial

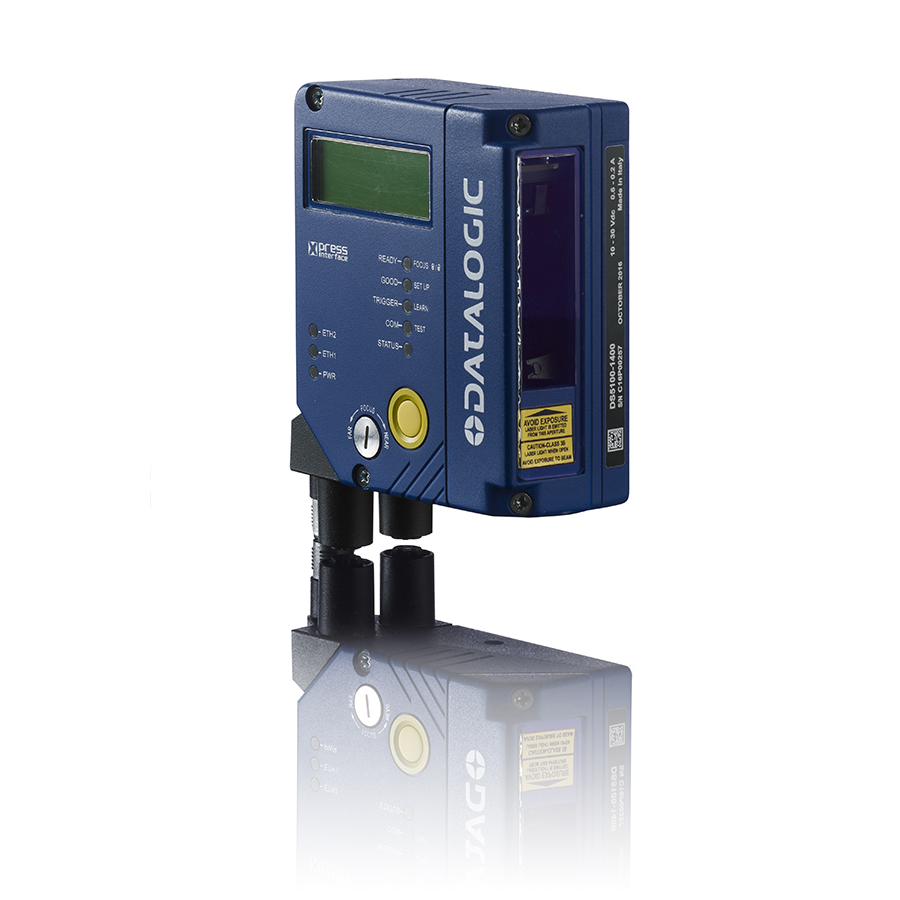

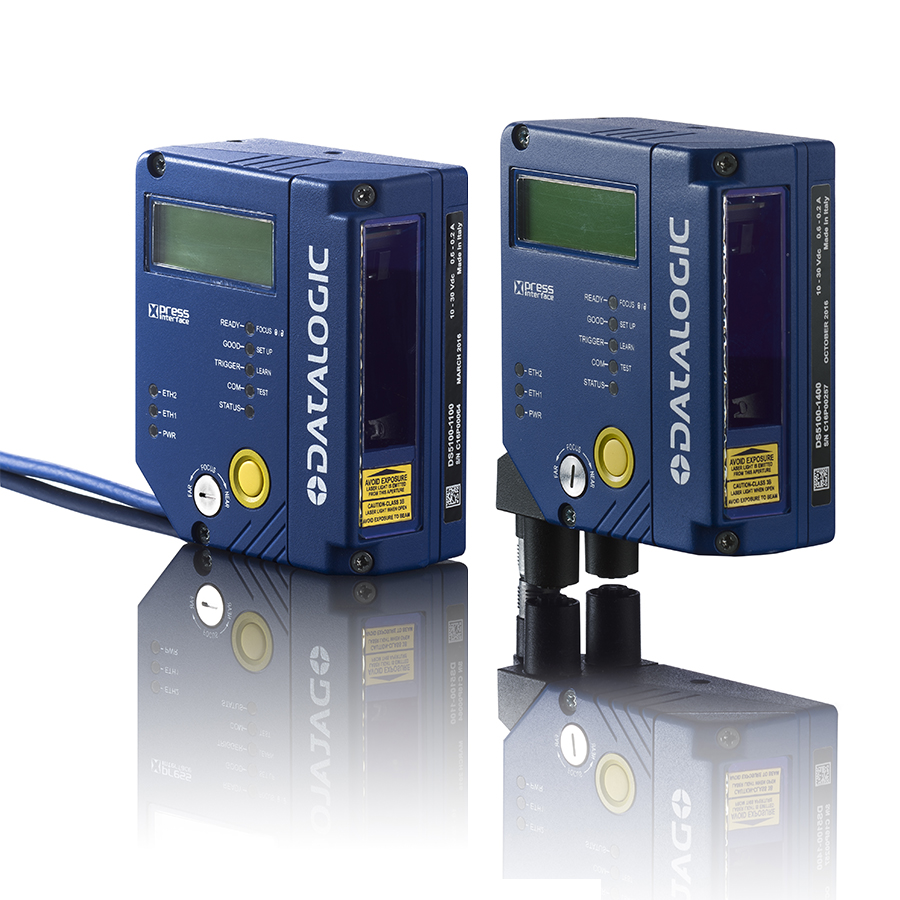

The Datalogic DS5100 is the new flexible, powerful and compact laser scanner. The DS5100 is a cost effective solution satisfying the main identification needs of Automotive, Food & Beverage, Pharmaceutical and other manufacturing plants. It offers a complete and flexible portfolio including Medium and Long Range models, Linear and Oscillating Mirror models.

Product Rating
Product Overview
  • Medium, Long Range, Linear and Oscillating Mirror models, user selectable focus for high application flexibility
  • ID-NET interface and Ethernet Bus Connections (EBC)
  • Embedded PROFINET-IO and EtherNet/IP for connectivity to main industrial Fieldbus
  • X-PRESS interface, Genius software tool, embedded multi-language display for easy scanner setup and maintenance
  • Rotating connector block for flexible form factor and easy installation
  • DST (Digital Signal Technology), ACR4 reconstruction technology and PACKTRACK tracking technology on Long Range
  • Superior ambient light immunity from high frequency laser modulation
  • Top industrial grade, IP65 and subzero version* for low temperature environments
Product Specifications
Communication Interfaces:Main port RS232/RS485-FD up to 115.2 Kbit/s
Auxiliary port RS232 up to 115.2 kbps
ID-NET RS485 multidrop up to 1 Mbps
EtherNet/IP, Modbus TCP, Ethernet TCP/IP,
PROFINET-IO Class A
Digital Inputs:2 Input (optocoupled, NPN/PNP)
Digital Outputs:2 Outputs (optocoupled)
Reconstruction Code Technology:ACR4
Focus Adjustment:Mechanically adjustable focus with locking
Optic Architecture/Technology:ASTRA G3
Bar Code Assignment Technology:Packtrack tracking technology on Long Range models DS5100-24xx only when configured in an EBC network
(not available on Medium Range models)
Device Programming:Genius (Windows based) software tool
Serial Host Mode Programming sequences
XPRESS interface
Operating Modes:On-line, Serial On-line, Automatic, Continuous, Test, Verifier, Packtrack tracking technology on Long Range when configured in an EBC network
ModelDescriptionPriceStock
931061344 DS5100-1200 Medium Range Linear Laser Serial $3,403.13
Call
 Add to Cart
ModelDescriptionPrices From
Datalogic M12-IP67 ethernet Ethernet Cable with M12 Connector IP67 3m/ 5m $178.37 View Product
Datalogic M12-IP67 TO CBX DS0x-S M12-IP67 TO CBX cable in 1m, 3m, 5m $137.25 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DS5100 brochure 1MB Download
