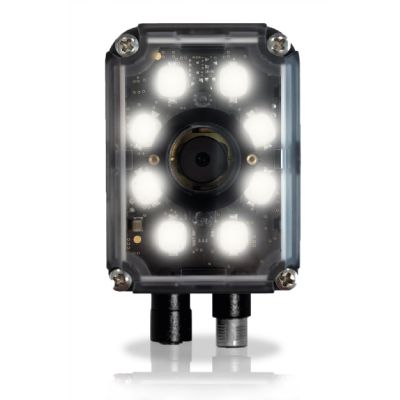

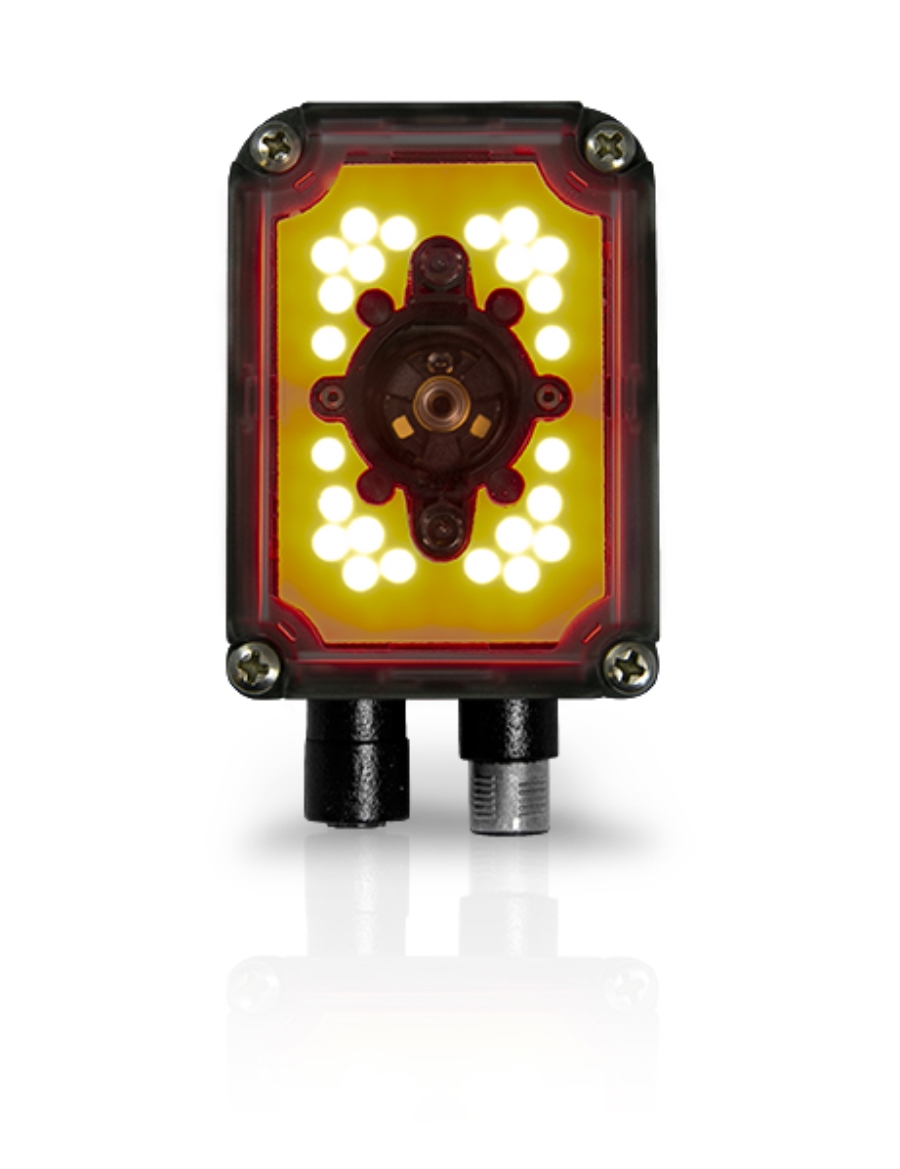

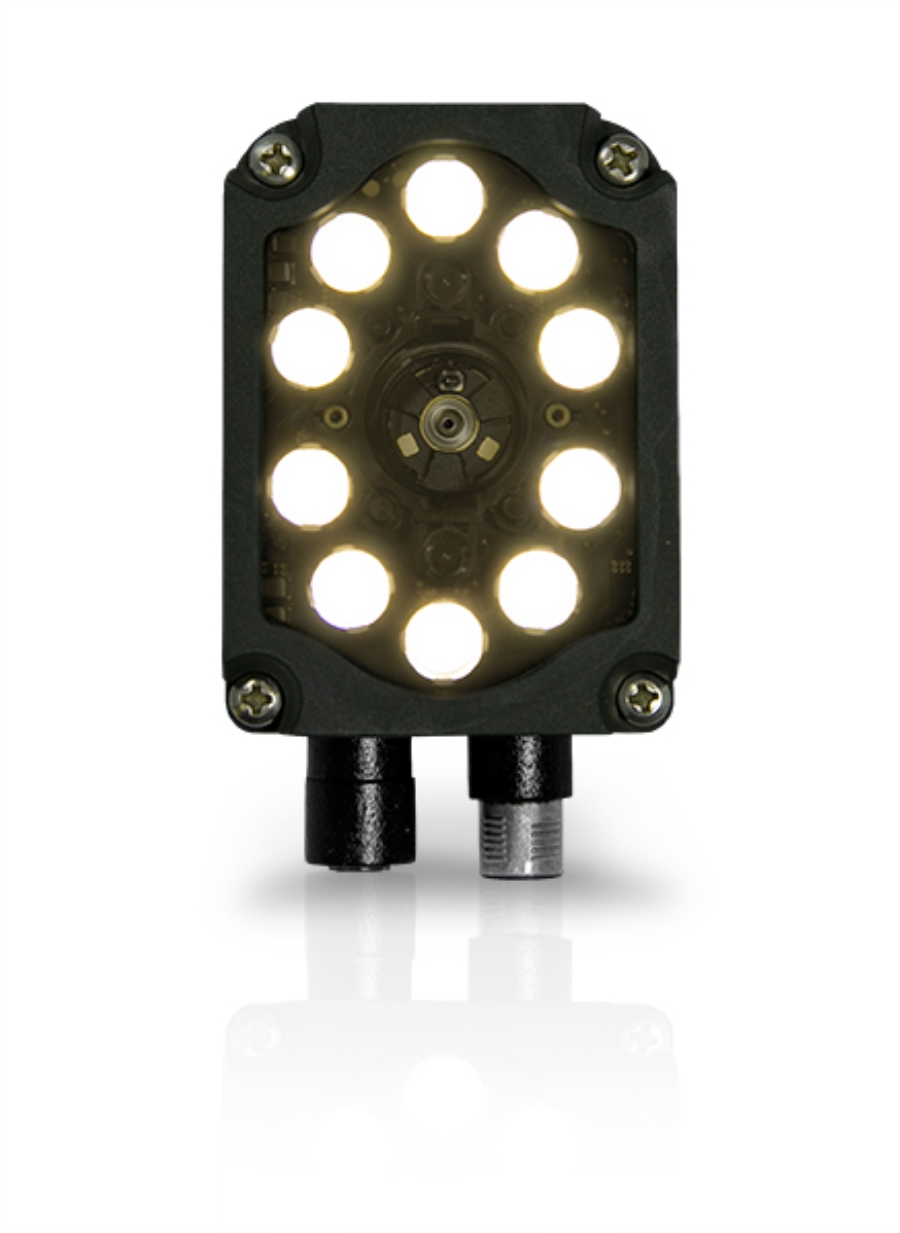

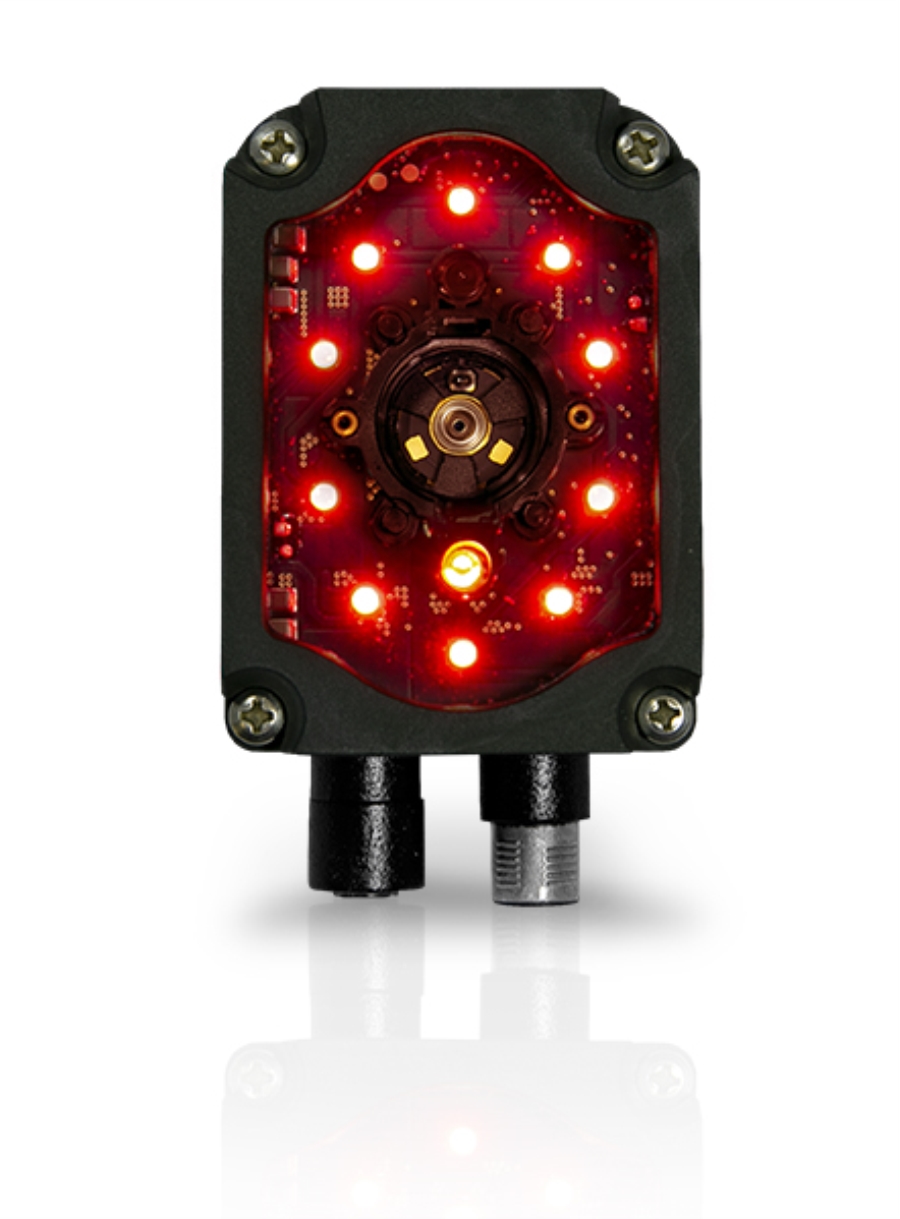

Datalogic Matrix 300N

High performance compact industrial 2D imager The Matrix 300N is a ultra-compact image based bar code reader designed for performance on high speed and Direct Part Marking (DPM) applications. The Matrix 300N is power by the new software DL.CODE, offering maximum customer ease of use. The Matrix 300 combines a high resolution sensor with ultra-fast image acquisition: 1.3 megapixels, 60 frames per second. Matrix 300N features a large variety of optical models, with manual focus position control or electronical. Designed for manufacturing in Automotive, Electronics & Food & Beverage processes, Document Processing, Medical device traceability, Clinical Lab Automation, and Logistics automation.

The Matrix 300N is the most cost-effective solution for barcode imagers, providing Power over Ethernet (PoE) connectivity and onboard PROFINET IO and ETHERNET/IP industrial fieldbuses, eliminating external communication boxes or converters.

The IP65 and IP67 industrial grade rating and the operating temperature range from 0 to 50 Degrees Celsius / 32 to 122 Degrees Fahrenheit guarantee the best quality and robustness in the Manufacturing industry applications. The ESD Safe front cover protects the device from electrostatic discharges while the Anti-YAG cut filter avoids laser reflections in particular for Mark & Read applications.

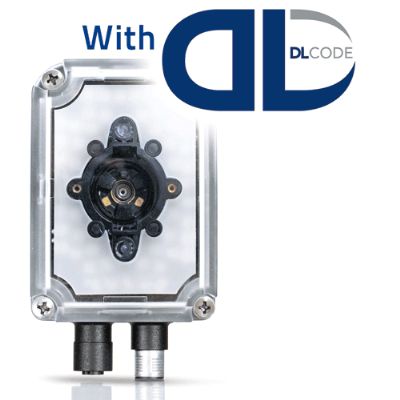

The Matrix 300N imager guarantees unmatched ease of use and setup thanks to the green and red spot lights, the X-Press button, the intuitive HMI, the aiming-system and the DL.CODE configuration software which has been improved with the Automatic Setup mode for a quick and easy code reading.

With its outstanding performances the Matrix 300N delivers a high performance/price ratio offering in the Datalogic portfolio.

Features

• High Speed Imager for process Automation
• Fast & high resolution image sensor
• Ultra Compact dimensions
• Liquid Lens Dynamic focus Control
• Integrated dual illuminator; dark field/bright field
• Power over ethernet option
• Extreme industrial grade IP67
• 0-50 C operating Temprature
