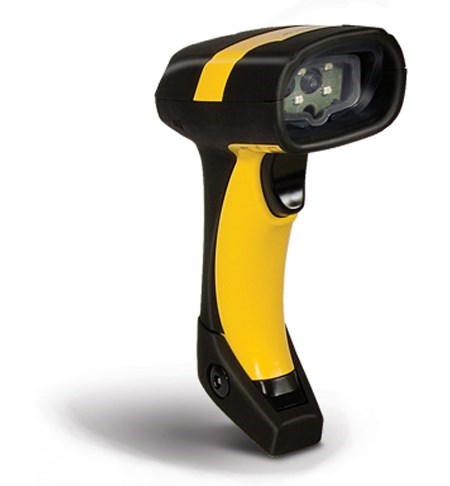

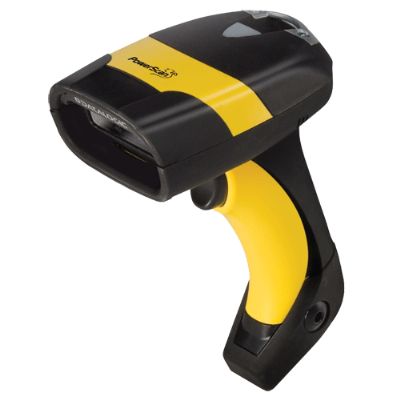

Datalogic PD8300

POSMarket SKU: Z2115

This product has been replaced by the Datalogic Powerscan PD9130. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

Datalogic's PowerScan readers are the top rated industrial handheld data collection products on the market. Synthesizing knowledge and experience, Datalogic Scanning is evolving the PowerScan family to include the PowerScan D8300 series: corded laser bar code readers featuring state-of-the-art performance for rugged industrial use.

Product Rating
Product Overview
  • Handheld Laser Scanner


  • Reads most common linear bar codes including GS1 Databar and PDF417


  • Standard Range (contact up to 1 m) and Auto Range (10 cm 10 m) optic models available


  • Drop resistance to 2 m


  • User interface: loud beeper and Datalogic 3GLgood read feedback Good read LED, Green Spot on the code


  • Built-in multiple interface (RS-232, Keyboard Wedge, Wand and USB)


  • Undecoded TTL Laser Out Model


  • 3 Year Limited Warranty


Product Specifications
Scan EngineLaser
Light SourceAiming: 630 - 680 VLD activated by double click trigger
Scan PatternSingle Line
Scan Rate35 +/- 5 scans/sec
Motion ToleranceN/A
Contrast Ratio15% Minimum reflective difference
ResolutionPD83x0: 0.076 mm / 3 mils
PD83x0AR: 0.190 mm / 7.5 mils
Depth of fieldPD83x0:
5 mils - 2.1 to 13.3 cm
7.5 mils - 3.5 to 24.2 cm
10 mils - 2.9 to 42.8 cm
13 mils - 2.3 to 55.1 cm
20 mils - 6.3 to 78.5 cm
40 mils - 2.5 to 97.8 cm

PD83x0AR:
7.5 mils - 7.0 to 46.5 cm
10 mils - 10.8 to 85 cm
13 mils - 12.7 to 147.3 cm
20 mils - 7.0 to 215.9 cm
40 mils - 16.0 to 340 cm
55 mils - 0.2 to 4.1 m
Reflective 100 mils - 1.5 to 12.5 m
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle+/- 20°
Pitch Angle-55 to -5°- 5 to 55°
Skew Angle+/- 60°
Ambient Light ImmunityImmume to light exposure in office/facilitie and direct exposure to sunlight
Symbologies supported1D:Auto-discriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes: Code 16K, Code 49, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectiona
Programming MethodManual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin: Windows configuration program
Indicators/ControlsBeepers
Datalogic's 3GL (Three Green Lights) technology and loud beeper for good read feedback
Datalogic Green Spot on the Code
Dual good read LED's
Communication TypeCabled
InterfacesUSB, Keyboard Wedge, Wand & RS232 Multi Interface
Undecoded Laser output model availalbe
Supply Voltage5 -30 VDC
Power Consumption310 mA @ 5 VDC (typical)
4 mA @ 5 VDC (typical)
Drop SpecificationDesigned to withstand 50 x 2M drops to concrete
Environmental SealingIP65
ESD Protection20 kV
Operating Environment-30° ~ 50°C, Relative Humidity up tp 90% none condensing
Storage Environment-30° ~ 50°C, Relative Humidity up tp 90% none condensing
EMC/Safety StandardsThe product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS
Laser Classification: CDRH Class II, IEC 60825-1 Class 2
External Dimensions (WxDxH)69 x 114 x 207 mm
Weight295 g
ModelDescriptionPriceStock
PD8330-ARK3 PD8330 Auto Range Scanner. PS/2 Keyboard Wedge Cable $CALL
Call
PD8330-ARK3 PD8330 Auto Range Scanner. No Cable (add cable separately) $CALL
Call
PD8330-ARK2 PD8330 Auto Range Scanner. Serial (RS232) Cable (add power supply separately if required) $CALL
Call
PD8330-ARK1 PD8330 Auto Range Scanner. USB Cable $CALL
Call
PD8330-K3 PD8330 Scanner. PS/2 Keyboard Wedge Cable $CALL
Call
PD8330 PD8330 Scanner. No Cable (add cable separately) $CALL
Call
PD8330-K2 PD8330 Scanner. Serial (RS232) Cable (add power supply separately if required) $CALL
Call
PD8330-K1 PD8330 Scanner. USB Cable $CALL
Call
ModelDescriptionPrices From
Datalogic 5.2V Power Supply 5.2V 650 mA Power Supply for Gryphon Magellan and Quickscan scanners $52.75 View Product
Datalogic PC-P080 PowerScan 8xxx Protective Case amp Belt Holster $57.30 View Product
Datalogic Take-Up Reel PowerScan Industrial Take up Reel $80.96 View Product
Datalogic CAB-524, USB A coiled POT USB type A, coiled power over terminal cable for Datalogic PBT8300 PD7100 PD8300 PD8500 PD9500 PM8300 PM9500. $47.31 View Product
Datalogic HLS-P080 Universal Holster Powerscan universal holster for use with PBT9100 PBT9300 PBT9500 PD9130 PD9330 PD9500 PM9100 PM9300 PM9500 $74.64 View Product
Datalogic Battery Powerscan 8000 Rbp-8000 Rem Battery Powerscan 8000 Rbp-8000 Rem $63.25 View Product
Datalogic CAB-434 CAB434 RS232 PWR 9P Fem Coil $46.81 View Product
Datalogic CAB433 RS232 9PIN Fem STR CAB433 RS232 9PIN Fem STR $43.01 View Product
Datalogic CAB-479, DB9 POT coiled RS232 9P Female coiled, 7.6m cable for Datalogic Scanner $100.95 View Product
Datalogic CAB-438, USB A straight USB A Straight cable for PBT7100 PBT8300 PBT9300 PD7100 PD8300 PD8500 PD9500 PM8300 PM9300 PM9500 $39.09 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Datalogic PD8300 Brochure 501KB Download
PDF Document Datalogic PD8330 Quick Referene Guide 850KB Download
PDF Document Datalogic PD8300 Product Reference Guide 2MB Download
