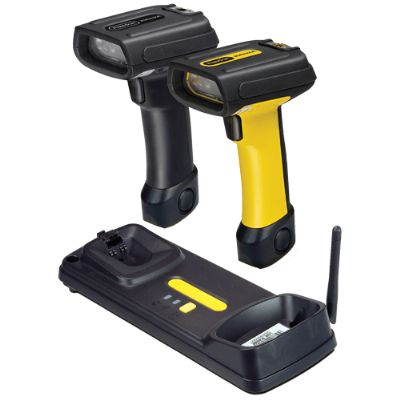

Datalogic Powerscan 7100 Bluetooth
POSMarket SKU: Z2334
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

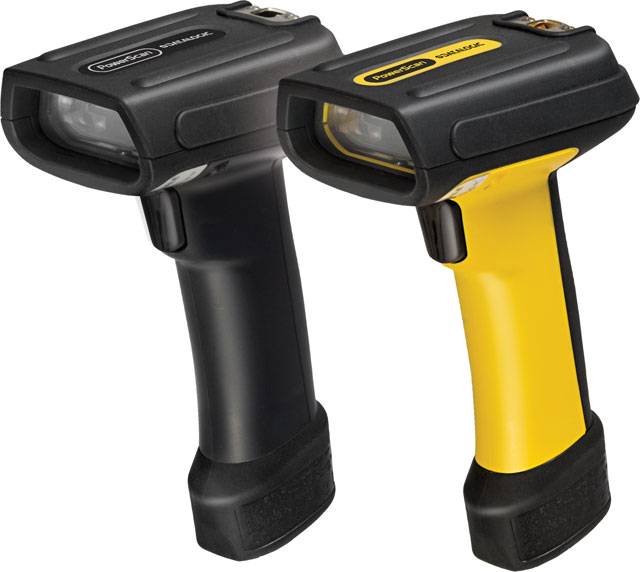

The PowerScan 7100 product series are Datalogic Scanning's value line of rugged industrial handheld data collection products. The PowerScan PBT7100 linear imaging bar code reader with Bluetooth wireless technology offers operator freedom from cable entanglement, rugged durability and extremely snappy reading performance all at an affordable price.
Product Overview
- Industrial Bluetooth Linear Imager Scanner
- Fastest speed-to-read - 390 scans/second
- Datalogic 'Green Spot' and loud beeper for good read feedback
- Bluetooth Wireless Technology with up to 100 m / 328 ft range
- Connectivity through the Base Station or directly to other Bluetooth devices
- Water and particulate sealing rating: IP65
- Drop resistance to 2.0 m / 6.5 feet
- 25kV Electrostatic protection (air discharge)
- Model option with aimer for optimal code pointing
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Type | Barcode scanner - portable | |
| Manufacturer | Datalogic | |
| POWER DEVICE | ||
| Type | power adapter | |
| INPUT DEVICE | ||
| Connectivity Technology | wireless | |
| TTL Decoding | decoded | |
| OK Notification | LED indicator, beeper | |
| PRINTER | ||
| Barcodes | China Post, GS1 DataBar | |
| BARCODE | ||
| Interface Type | Bluetooth 2.0 | |
| Interface | Bluetooth 2.0 | |
| Light Source Wave Length | 630-680 nm | |
| Barcodes | China Post, GS1 DataBar | |
| Print Contrast Signal (PCS) | 15% | |
| Skew (Degrees) | 65 | |
| Pitch (Degrees) | 65 | |
| Minimum Bar Width | 3 mil | |
| Features | waterproof | |
| Decode Capability | GS1 DataBar, China Post | |
| OK Notification | Beeper, LED indicator | |
| Scan Speed | 390 scan / sec | |
| Connectivity Technology | Wireless | |
| Scan Element Type | Linear imager | |
| TTL Decoding | Decoded | |
| BATTERY | ||
| Included | 1 | |
| NETWORKING | ||
| Wireless Connectivity | Bluetooth 2.0 | |
| MISCELLANEOUS | ||
| Color | black, yellow | |
| Color Category | black, yellow | |
| Included Accessories | cradle | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 5 - 95% | |
| Min Operating Temperature | -4 °F | |
| Max Operating Temperature | 122 °F | |
| MANUFACTURER WARRANTY | ||
| Service & Support | Limited warranty - 3 years | |
| Type | 3 years warranty | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | portable | |
| Scan Element Type | linear imager | |
| Scan Speed | 390 scan/sec | |
| HEADER | ||
| Brand | Datalogic | |
| Product Line | Datalogic PowerScan | |
| Model | PBT7100 | |
| Country Kits | United States | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| DIMENSIONS & WEIGHT | ||
| Width | 3 in | |
| Depth | 4.5 in | |
| Height | 8 in | |
| Weight | 12.49 oz | |
| INTERFACE REQUIRED | ||
| Type | PS/2 keyboard wedge | |
| Total Qty | 1 | |
| CABLE DETAILS | ||
| Type | keyboard wedge cable | |
| Form Factor | external | |
| Included Qty | 1 | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 12.49 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| SERVICE & SUPPORT | ||
| Type | 3 years warranty | |
| SHOCK & VIBRATION TOLERANCE | ||
| Drop Specification | 6.5 ft to concrete | |
| SERVICE & SUPPORT DETAILS | ||
| Type | limited warranty | |
| Full Contract Period | 3 years | |
| GENERAL | ||
| Manufacturer | Datalogic | |
Product Configurations
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
| Model | Description | Prices From | |
|---|---|---|---|
| Datalogic CAB-433 | Female DB9 RS-232 9pin straight cable power inlet. | $41.87 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
Datalogic PowerScan PBT7100 Product Reference Guide | 14MB | Download |
|
Datalogic PowerScan PBT7100 Quick Reference Guide | 1MB | Download |
