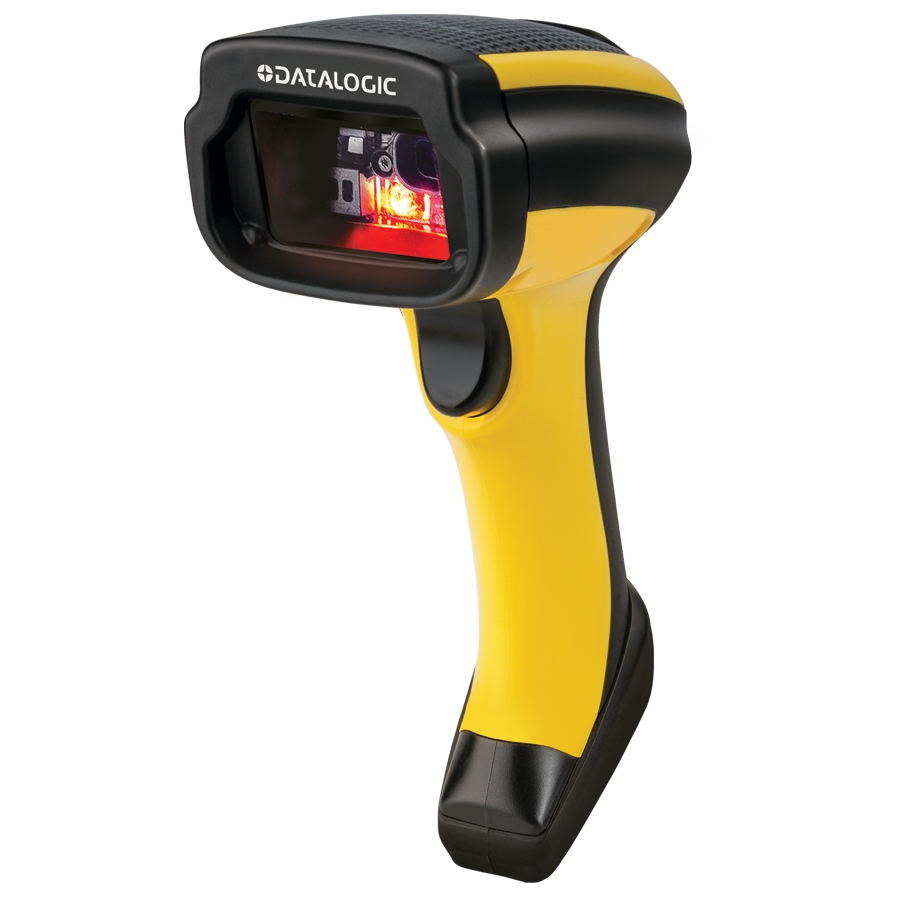

Datalogic Powerscan PBT9501

from $1,170.13 (incl. GST)

POSMarket SKU: Z8827

This model is available in 6 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Industrial Area Imager Barcode Scanner

Product Rating
Product Overview
The PowerScan family of bar code readers are the ultimate industrial hand held scanners designed and constructed to withstand the toughest environmental conditions.

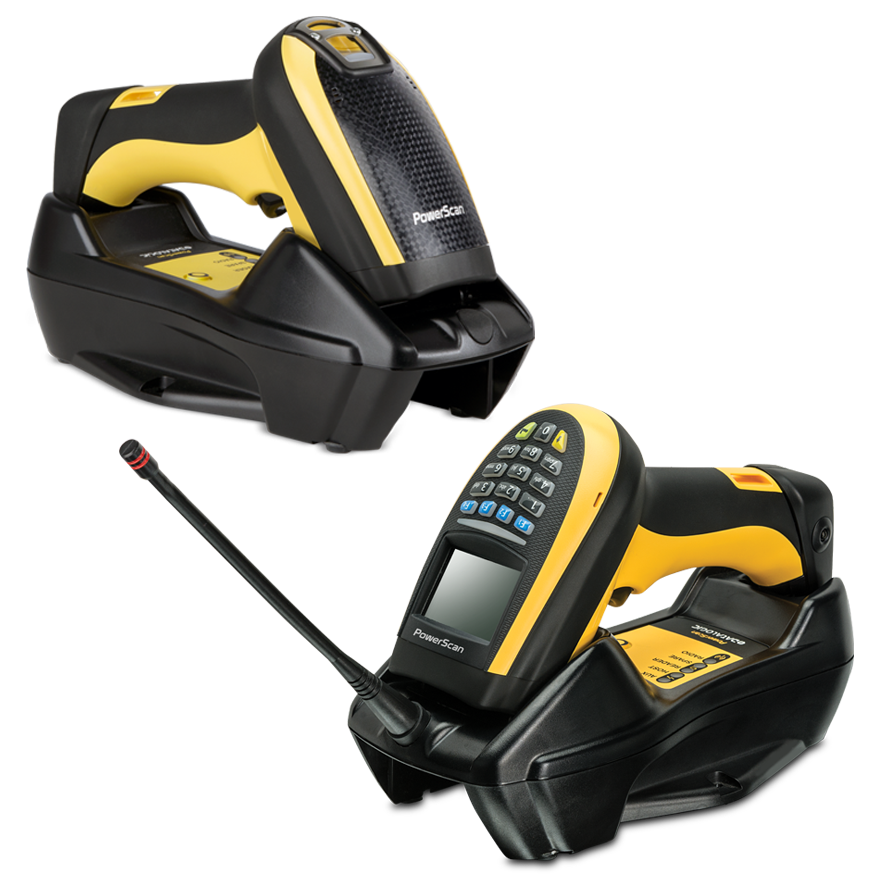

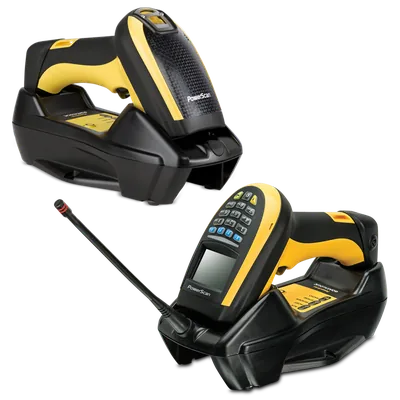

The Powerscan 9501 series of barcode readers are the ultimate industrial handheld scanners, designed and constructed to withstand the toughest environmental conditions. Available in a corded version (PD9531) and 2 Wireless versions (PM9501 & PBT9501) there is a model suited to every industrial application.

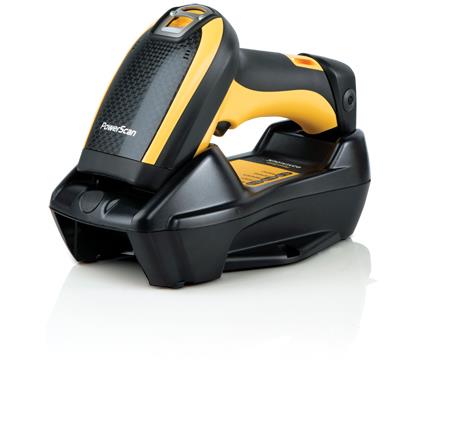

The PowerScan PBT9501 features Bluetooth wireless technology and the PM9501 features Datalogic's tried and tested STAR Cordless System narrow band radio.

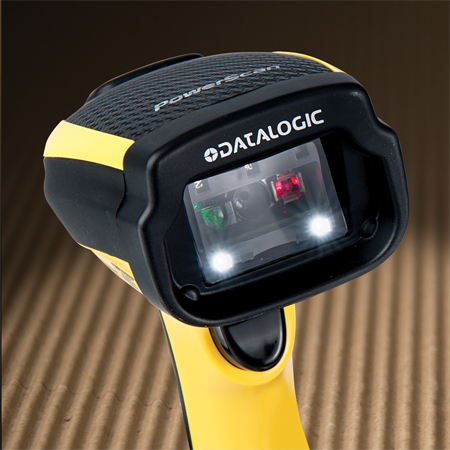

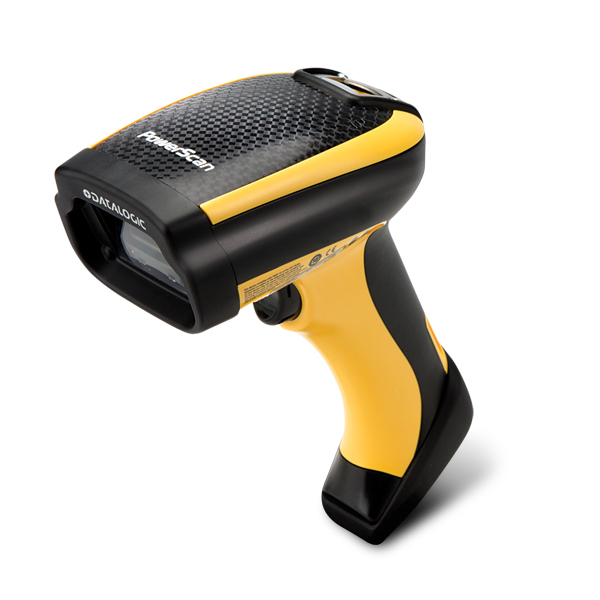

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.

The 9501 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL) for superior good-read feedback. The patented "Green Spot" technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.

The PowerScan 9501 imagers introduce a new technology with the "Liquid Lens" feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
Product Specifications
Bluetooth Wireless TechnologyPiconet: Max. 7 readers per radio receiver (cradle and commercial dongle)
Radio Frequency2.40 to 2.48 GHz
Decoding Capability1D / Linear, 2D, Postal Codes, Stocked Codes
BatteryLi-Ion 3350 mAh; Charge Time: External Power: 4.5 Hours; Host Power: 10 Hours
Cradle Indicator LEDsBattery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
Ambient Light 0 - 100,000 lux
Drop ResistanceCradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface
PBT9501: Withstands 50 drops from 2 m / 6.6 ft onto a concrete surface
Particulate and Water SealingIP65
TemperatureOperating: -20 to 50 °C / -4 to 122 °F
Battery Charging: 0 to 40 °C / 32 to 104 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F
InterfacesKeyboard Wedge RS-232; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial)
DimensionsCradle: 24 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in PBT9501: 21.2 x 11 x 7.4 cm / 8.3 x 4.3 x 2.9 in
WeightPBT9501-RB, PBT9501-HPRB, PBT9501-DPMRB: 400 g / 14.1 oz
Image CaptureGraphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
Image SensorPBT9501: 864 x 544; PBT9501-HP: 1280 x 1024
Light SourceAiming: 630 - 680 nm VLD Illumination: White LEDs
Reading AnglePitch: +/- 40° Roll (Tilt): 360° Skew (Yaw): +/- 40°
Reading IndicatorsDatalogic's 3GL (Three Green Lights) technology and loud beeper for good-read feedback: Datalogic 'Green Spot' on the Code, Dual Good Read LEDs
Typical Depth of Field:
PBT95014 mils: 6 to 17 cm / 2.3 to 6.7 in
7.5 mils: Data Matrix 9 to 12 cm / 3.5 to 4.7 in
10 mils: Data Matrix 4 to 18 cm / 1.5 to 7 in
10 mils: PDF417 2 to 25 cm / 0.8 to 9.8 in
13 mils: 4 to 45 cm / 1.5 to 17.7 in
20 mils: 4 to 55 cm / 1.5 to 21.6 in
40 mils: 4 to 85 cm / 1.5 to 33.4 in
PBT95012.5 mils 2 to 6 cm / 0.8 to 2.3 in
4 mils Data Matrix 2 to 6 cm / 0.8 to 2.3 in
10 mils Data Matrix 2 to 20 cm / 0.8 to 7.8 in
10 mils PDF417 2 to 30 cm / 0.8 to 11.8 in
13 mils 3 to 60 cm / 1.1 to 23.6 in
20 mils 3 to 70 cm / 1.1 to 27.5 in
40 mils 3 to 110 cm / 1.1 to 43.3 in
ModelDescriptionPriceStock
PBT9501-DPMRBK10EU PowerScan PBT9501, Direct Part Marking Evo, USB Kit, Removable Battery (Kit inc. Scanner, Base Station BC9030-BT, Cable CAB-438, Power Brick 8-0935 and EU Power Cord 6003-0940) - REQUIRES CAIE $2,365.00
Call
 Add to Cart
PBT9501-HPRBK10EU PBT9501-HP USB Kit. High Performance/Liquid Lens Scanner, Base Station BT, USB Interface Cable, Power Brick and Power Cord. Removable Battery $1,764.68
Call
 Add to Cart
PBT9501-RBK10EU PBT9501-SR USB Kit. Standard Range Scanner, Bluetooth, Removable Battery, Base Station, USB interface cable & Power supply $1,676.13
Call
 Add to Cart
PBT9501-ARRB PowerScan PBT9501, Bluetooth, Area Imager Scanner, Auto Range, Removable Battery (Scanner Only) $1,473.73
Call
 Add to Cart
PBT9501-HPRB PBT9501-HP. Scanner only, Bluetooth, High Performance/Liquid Lens, Removable Battery $1,258.68
Call
 Add to Cart
PBT9501-RB PBT9501-SR. Scanner only. Standard Range Scanner, Bluetooth, Removable Battery $1,170.13
Call
 Add to Cart
ModelDescriptionPrices From
Datalogic HLS-P080 Universal Holster Powerscan universal holster for use with PBT9100 PBT9300 PBT9500 PD9130 PD9330 PD9500 PM9100 PM9300 PM9500 $74.64 View Product
Datalogic Ease Of Care Pm/Bt95 Base 5Day Rnw Ease Of Care Pm/Bt95 Base 5Day Rnw $16.45 View Product
Datalogic Ease Of Care Pm/Bt95 Base 5Day 5yr Ease Of Care Pm/Bt95 Base 5Day 5yr $31.63 View Product
Datalogic Ease Of Care Comp Pm/Bt95xx Base 2d/3y Ease Of Care Comp Pm/Bt95xx Base 2d/3y $25.30 View Product
Datalogic Powerscan Base Charge PBT9x00 BT Powerscan Base/Charge PBT9x00 Bluetooth Scanner $455.40 View Product
Datalogic 90ACC0287 PSU 5V $34.16 View Product
Datalogic CAB433 RS232 9PIN Fem STR CAB433 RS232 9PIN Fem STR $43.01 View Product
Datalogic Ease Of Care PM BT95XX SR 5-Day 3YR Ease Of Care PM/BT95XX SR 5-Day/3YR $56.93 View Product
Datalogic EASE OF CARE COMP PM/BT91XX 2 DAY/3YR Datalogic Ease of Care, PM/BT91XX, 2 DAYS, 3 YEARS, COMPREHENSIVE $104.36 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document PBT9501 Quick Reference Guideen 1MB Download
PDF Document PBT9501 Quick Reference Guide ENG.pdf 1009KB Download
PDF Document PowerScan PBT9501 Brochure 696KB Download
