| GENERAL | |
| Packaged Quantity | 1 |
| Manufacturer | Honeywell, Inc. |
| POWER DEVICE | |
| Type | power supply |
| INPUT DEVICE | |
| Connectivity Technology | wireless |
| TTL Decoding | decoded |
| OK Notification | LED indicator, beeper |
| PRINTER | |
| Barcodes | China Post, Codabar, Codablock F, Code 11, Code 128, Code 16K, Code 32, Code 39, Code 49, EAN/JAN, GS1 DataBar, IATA 2 of 5, ISBT 128, Interleaved 2 of 5, Korea Post, MSI-Plessey, Matrix 2 of 5, PosiCode, Telepen, Trioptic Code, UPC-A, UPC-E, cupon code |
| BARCODE | |
| Interface Type | Bluetooth 2.0 EDR |
| Interface | Bluetooth 2.0 EDR |
| Light Source Wave Length | 630 nm |
| Barcodes | China Post, Codabar, Codablock F, Code 11, Code 128, Code 16K, Code 32, Code 39, Code 49, EAN/JAN, GS1 DataBar, IATA 2 of 5, ISBT 128, Interleaved 2 of 5, Korea Post, MSI-Plessey, Matrix 2 of 5, PosiCode, Telepen, Trioptic Code, UPC-A, UPC-E, cupon code |
| Print Contrast Signal (PCS) | 20% |
| Max Working Distance | 24 in |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Minimum Bar Width | 5 mil |
| Features | ESD (electrostatic discharge) safe, Global Trade Item Number (GTIN), dustproof, waterproof |
| Decode Capability | EAN/JAN, Matrix 2 of 5, Code 39, Code 49, ISBT 128, cupon code, GS1 DataBar, Telepen, Code 32, UPC-A, UPC-E, Codabar, Code 128, Code 11, Code 16K, Interleaved 2 of 5, MSI-Plessey, China Post, Korea Post, Codablock F, IATA 2 of 5, PosiCode, Trioptic Code |
| Scan Mode | Single-pass |
| OK Notification | Beeper, LED indicator |
| Scan Speed | 270 scan / sec |
| Connectivity Technology | Wireless |
| Scan Element Type | Linear imager |
| TTL Decoding | Decoded |
| BATTERY | |
| Included | 1 |
| NETWORKING | |
| Wireless Connectivity | Bluetooth 2.0 EDR |
| MISCELLANEOUS | |
| Included Accessories | cradle |
| ENVIRONMENTAL PARAMETERS | |
| Humidity Range Operating | 0 - 95% |
| Min Operating Temperature | 14 Degree F |
| Max Operating Temperature | 122 Degree F |
| MANUFACTURER WARRANTY | |
| Type | 3 years warranty |
| SCANNER | |
| Type | barcode scanner |
| Form Factor | portable |
| Scan Mode | single-pass |
| Scan Element Type | linear imager |
| Scan Speed | 270 scan/sec |
| HEADER | |
| Brand | Honeywell |
| Product Line | Honeywell |

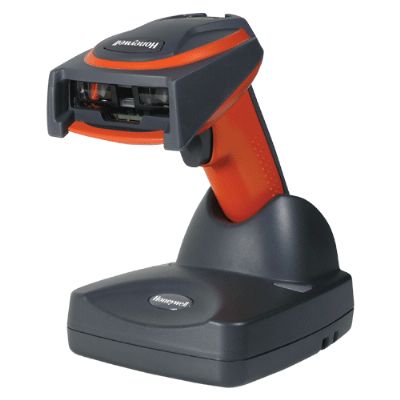

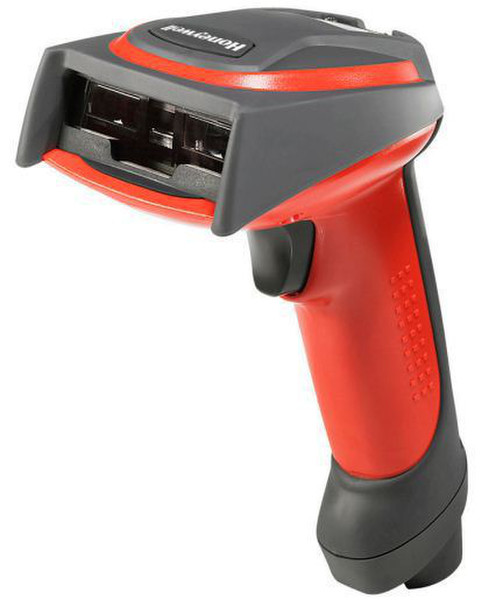

| Model | 3820i Industrial Cordless Linear Imager |
| Packaged Quantity | 1 |
| Compatibility | PC |
| DIMENSIONS & WEIGHT | |
| Height | 6.5 in |
| Weight | 9.59 oz |
| INTERFACE REQUIRED | |
| Type | keyboard wedge |
| Total Qty | 1 |
| CABLE DETAILS | |
| Type | keyboard wedge cable |
| Form Factor | external |
| Included Qty | 1 |
| PHYSICAL CHARACTERISTICS | |
| Weight | 9.59 oz |
| SLOT REQUIRED | |
| Type | none |
| SERVICE & SUPPORT | |
| Type | 3 years warranty |
| SHOCK & VIBRATION TOLERANCE | |
| Drop Specification | 6.5 ft to concrete |
| SERVICE & SUPPORT DETAILS | |
| Type | limited warranty |
| Full Contract Period | 1 year, 3 years |
| Component | battery |
| GENERAL | |
| Manufacturer | Honeywell, Inc. |
