Opticon OPR-3101
POSMarket SKU: Z2119
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

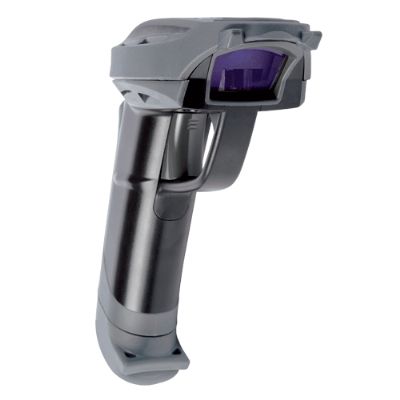

Rugged Portable Bluetooth Barcode Laser Scanner
Product Overview
The rugged housing of the OPR3101 is sealed to IP 54 standards and holds up well in environments where water and dust resistance is required. The OPR3101 withstands multiple drops up to 2 meters onto concrete and features a trigger guard to prevent accidental scans. The ergonomic grip provides the user comfort during the day. The OPR3101 uses the widely available and reliable Bluetooth wireless communication protocol which allows the scanned data to be instantly transmitted to any Bluetooth capable device. Scanned data is stored on-board the OPR3101 in case the Bluetooth receiver moves out of range or is temporarily unavailable. This prevents data loss as well as loss of retracing time, contributing to continuous mobile working.
The OPR3101, an extremely rugged, portable Bluetooth laser scanner, quickly and efficiently scans 1D barcodes for retail, point-of-sale (POS), inventory or logistics applications.
Features
The OPR3101, an extremely rugged, portable Bluetooth laser scanner, quickly and efficiently scans 1D barcodes for retail, point-of-sale (POS), inventory or logistics applications.
Features
- Portable Bluetooth barcode laser scanner -100 scans/second
- Easily reads 1D barcodes for retail, POS, inventory or logistics applications
- Compact size and weight - 2.7'' W x 6.5'' L x 6.1'' D and 10.2 ounces
- Rugged- survives 6 foot drop onto concrete
- Rated at IP54 - sealed against dust and moisture
- Trigger modes: manual and auto-trigger

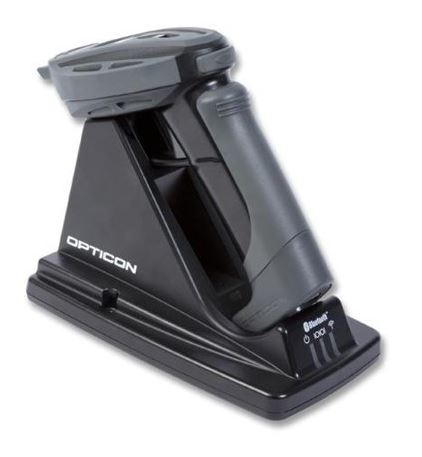

- Communication interface to charging cradle with serial or Bluetooth connection
- Two-year warranty
Product Specifications
| Operating indicators: | Visual: 1 large LED (red/green/blue) Non-visual: Buzzer |
| Communication: | Bluetooth: Ver. 1.2, SPP, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption |
| Barcode scanner Optics: | Light source: 650 nm visible laser diode Scan method: Bi-directional scanning Scan rate: 100 scans/sec Trigger mode: Manual, auto-trigger Reading pitch angle: -35 to 0°, 0 to +35° Reading skew angle: -50 to -8°, +8 to +50° Reading tilt angle: -20 to 0°, 0 to +20° Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Min. resolution at PCS 0.9: 0.127 mm / 5 mil Min. PCS value: 0.45 |
| Barcodes: | 1D: JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Composite codes, MicroPDF417, PDF417 |
| Physical: | Dimensions (w x h x d): 68 x 165 x 155 mm / 2.68 x 6.50 x 6.10 in Weight body: Ca. 290 g / 10.2 oz (incl. battery) |
| Durability: | Temperature in operation: -10 to 60 °C / 14 to 140 °F Temperature in storage: -20 to 60 °C / -4 to 140 °F Humidity in operation: 5 - 95% (non-condensing) Humidity in storage: 5 - 95% (non-condensing) Ambient light immunity: Fluorescent 4,000 lx max,Direct sun 80,000 lx max, Incandescent 4,000 lxmax Drop test: 2 m / 6.5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G for 30 min Protection rate: IP 54 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| OPR3101BKIT-RU | OPR-3001 Kit - Includes scanner, Charge/Comms cradle, USB & Serial cable and Power supply | $913.07 | Add to Cart | |
| 11847 | OPR-3001 Cordless Bluetooth Laser Scanner only | $515.97 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Opticon 6VDC1000 7 (FSR-06) | Plug Pack 6V Reg. | $32.84 | View Product |
| Opticon 11848 | Charging Communication Cradle for OPR-3101 with RS232 USB Interface. | $470.25 | View Product |
| Opticon 11846 | Rechargable Battery for OPR3101 | $118.80 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
OPR- 3101 Quick Start Guide | 2MB | Download |
|
OPR-3101 brochure | 213KB | Download |
