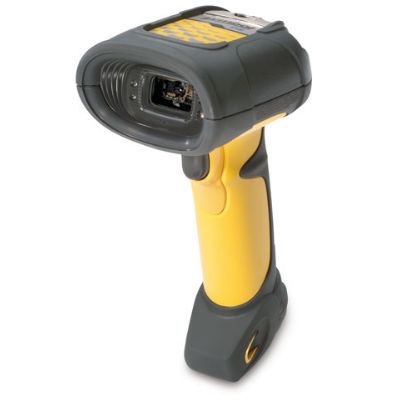

Symbol DS3408

POSMarket SKU: Z4737

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

The DS3400 Series industrial bar-code scanners from Symbol Technologies use digital imaging technology to accurately capture all types of two-dimensional 2D and one-dimensional 1D barcodes while offering the high performance typically found only in laser scanners.

Product Rating
Product Overview
The DS3400 Series industrial bar-code scanners from Symbol Technologies use digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. For capturing images and barcodes, the DS3408 is ideal. But if image capture and transfer capability is what you need, the DS3407 is perfect for today's applications, such as digital document storage and processing, as well as for image capture applications of the future.

  • Ability to read both 1D and 2D barcodes - Increases productivity and lowers costs by providing one device that can be used to read all industry-standard barcodes
  • Integrated image capture and transfer capabilities (DS3407 only) - Reduces the costs associated with operating and maintaining multiple devices by integrating the technology needed for image capture and transfer
  • Multiple interfaces (DS3408 only) - Protects your investment by allowing migration to future hosts with only a cable change
  • Omnidirectional scanning - Speeds reading time by eliminating the need to line up the barcode with the scan line
  • Rugged and reliable design that includes a 6.5 ft. drop-to-concrete specification and IP65 seal rating - Ensures reliability and performance in rough environments by protecting against damage
  • Two-position smart focus - Unique to the DS3400 Series, this feature allows users to optimize the scanner for their application by providing them with a choice of two focus positions
Product Specifications
BrandSymbol
Product LineSymbol Digital Scanner
ModelDS3408-HD
TypeBarcode scanner - handheld
ManufacturerZebra Technologies
TTL Decodingdecoded
OK NotificationLED indicator, beeper
BarcodesBookland, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Full ASCII, Code 93, Discrete 2 of 5, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, IATA, Interleaved 2 of 5, MSI-Plessey, NW-7, Trioptic Code, UCC/EAN-128, UPC
Light Source Wave Length650 nm
BarcodesBookland, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Full ASCII, Code 93, Discrete 2 of 5, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, IATA, Interleaved 2 of 5, MSI-Plessey, NW-7, Trioptic Code, UCC/EAN-128, UPC
Print Contrast Signal (PCS)25%
Skew (Degrees)50
Pitch (Degrees)60
Minimum Bar Width5 mil
Decode CapabilityCode 93, Code 39, UCC/EAN-128, NW-7, IATA, GS1 DataBar, Bookland, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Trioptic Code
Compliant StandardsVCCI, EN 60950, ICES-003, IEC950, UL 1950, CSA 22.2 No. 950, FCC Part 15 B, MITI, EMC
Colortwilight black, yellow
Color Categoryblack, yellow
Width4.8 in
Depth2.9 in
Height7.4 in
Weight10.58 oz
Product Configurations
No configurations found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

ModelDescriptionPrices From
Zebra HOLDER DESKTOP LS34XX/DS34XX/DS67XX SCANNERS HOLDER DESKTOP LS34XX/DS34XX/DS67XX SCANNERS $29.10 View Product
Zebra Cable Data Scanner USB 2.8M CLD Cable Data Scanner USB 2.8M CLD $40.48 View Product
Zebra Intellingstand ds2208/ds3408/ds8108 Blk Intellingstand ds2208/ds3408/ds8108 Blk $45.54 View Product
Zebra Wall Mount Ls Ds Scanner This wall mount stand offers easy access and convenience for the DS34xx, DS67xx, L34x, LS3008, LS22xx, LS42xx and L34xx bar code scanners. $40.48 View Product
Zebra Shielded USB Data Scanner Cable Cable, Shielded USB: Series A Connector, 9 ft. 2.8m, Straight $37.95 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Symbol DS3400 Datasheet 252KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
