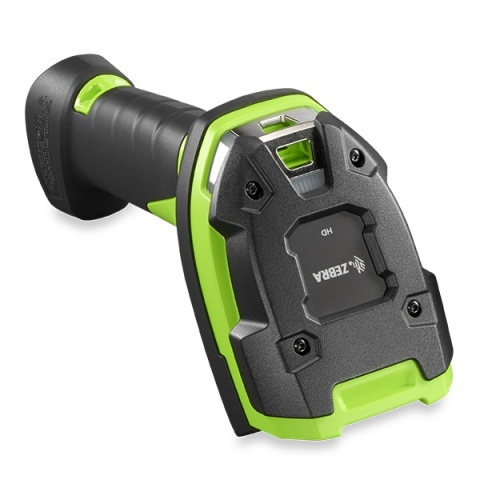

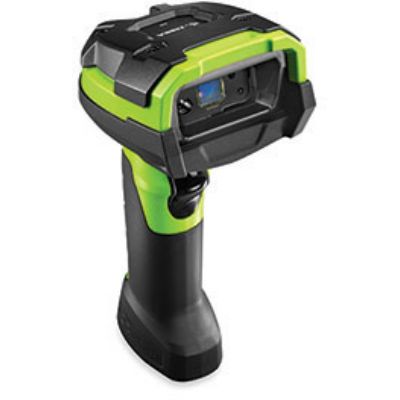

Zebra DS3608-HD

$874.12 (incl. GST)

POSMarket SKU: Z4252

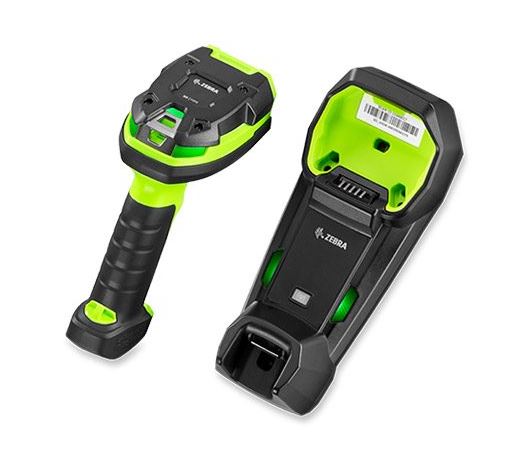

DS3608-HD3U4602VZW: DS3608-HD USB Kit. Includes DS3608-HD Scanner & High current shielded USB cable

Corded Ultra Rugged 1D/2D Barcode Scanner, High-Density

Product Rating
Product Overview
Scan every barcode on the first try every time. In addition to superior scanning performance flexible information capture an ultra-rugged design and unparalleled manageability you get more features that help these scanners capture every high density barcode on the first try. From very low contrast barcodes that are etched directly onto parts to very high contrast white codes printed on black or black codes printed on white the DS3608-HD does it all.

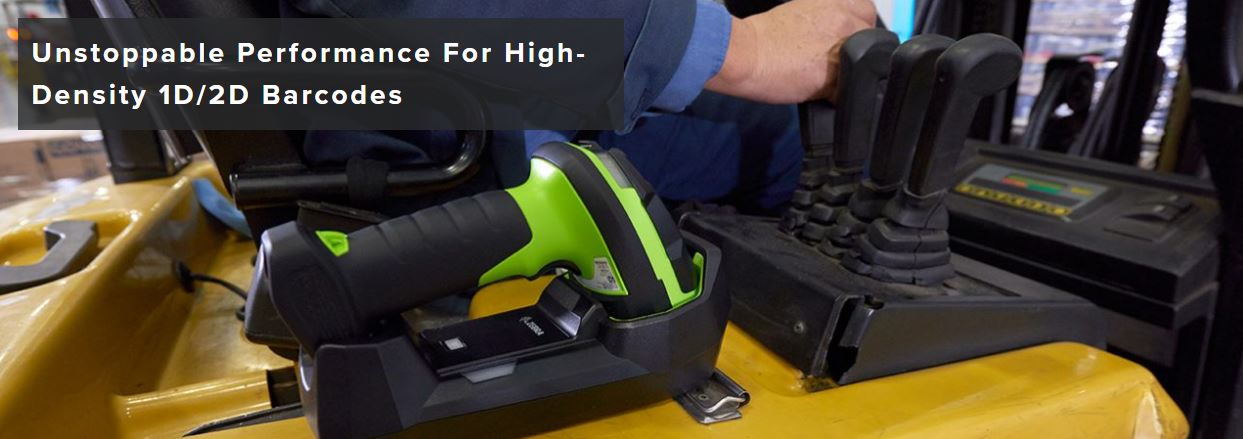

Unstoppable performance for high density 1D/2D barcodes
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world's toughest environments - the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.
And since these scanners also capture standard barcodes in virtually any condition, you get a real value - unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

Superior scanning performance on any high density 1D/2D barcode
This advanced imager delivers first time capture of high-density 1D and 2D barcodes printed on labels or directly on product components - including tiny and dense 3 mil codes that are barely visible to the naked eye. These scanners also capture standard printed barcodes in virtually any condition - damaged, dirty, poorly printed or under shrink wrap. This dual functionality provides excellent value: you get one scanner you can use on the production line for end-to-end track and trace of materials - and in the warehouse from receiving to shipping.

Ultra-rugged - the most indestructible design in its class
The DS3608-HD/DS3678-HD is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-HD/DS3678-HD is built to survive an 8 ft./2.4 m drop to concrete - 23 percent more durable than any other scanner in this class. The DS3608-HD/DS3678-HD operates reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dust proof, spray proof and waterproofed to IP67 - they can be sprayed down with jetting water and even submersed in water for up to 30 minutes.

Easy management with our complimentary industry-best tools
Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan2 and Scanner Management Service (SMS).multi-code captures and processes up to 20 barcodes simultaneously

Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems - all with complete control over the order barcodes are processed.

Features
  • Superior scanning performance on any 1D/2D barcode on any surface
  • Supports high density code down to 3 mil
  • Dust proof, spray proof and waterproofed to IP67
  • Users can easily select and capture an individual barcodes from any pick list.
  • Multi-code mode captures and processes up to 20 barcodes simultaneously
Product Specifications
PHYSICAL CHARACTERISTICS
Dimensions18.5cm x 7.6cm x 13.2cm
Weight 309g
Colour Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedge
Battery PowerPrecision+ 3100mAh Li-ion, rechargeable battery
User IndicatorsDirect decode indicator; LEDs; beeper; vibration
PERFORMANCE CHARACTERISTICS
Scans per full charge 70,000+
Imager Field of ViewHorizontal: 31°, Vertical: 23°
Image Sensor 1280 x 960 pixels
Illumination Two warm white light LED's
DECODE CAPABILITIES
1D Code 39
Code 128
Code 93
Codabar/NW7
Code 11
MSI Plessey
UPC/EAN
Interleaved 2 of 5
Korean 3 of 5
GS1 Databar
Base 32 (Italian Pharma)
2D PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes
WIRELESS CONNECTIVITY
Bluetooth Bluetooth Class 1, Verion 4.0 (LE)
Serial Port (SPP)
HID Profiles
Radio Range Direct Line of Sight in open air:
Class 1: 100m
Class 2: 10m
USER ENVIRONMENT
Operating Temp. -22° F to 122° F/-30° C to 50° C
Drop SpecificationWithstands multiple 8.0 ft. / 2.4 m drops to concrete
Tumble Specification 5000 tumbles @ 3.3 ft. (1 m)
SealingScanner: IP65 and IP67; FLB cradle: IP65
ModelDescriptionPriceStock
DS3608-HD3U4602VZW DS3608-HD USB Kit. Includes DS3608-HD Scanner & High current shielded USB cable $874.12
Call
Add to Cart
ModelDescriptionPrices From
Zebra EA3600-T1CP-00 3600 Series Ethernet Adapter $944.69 View Product
Zebra DC Line Cord with Filter for 3600 Series DC Line Cord with Filter Used with 3600 Series (Except SAC3600-4001CR) Level 6 AC/DC Power Supply Part PWR-BGA12V50W0WW. $25.30 View Product
Zebra OneCare Essential DS3608 With three service levels to choose from - Essential, Select and Premier - you'll find a Zebra OneCare for Printers offering that will meet your service requirements and your budget. $60.72 View Product
Zebra Onecare Select DS3608 Onecare Select DS3608, Next Business day, 3 Year comprehensive $75.90 View Product
Zebra Stand intellistand adj ds3608 blk Stand intellistand adj ds3608 blk $94.88 View Product
Zebra Multidock Battery 4-Bay li3678/ds3678 Multidock Battery 4-Bay li3678/ds3678 $371.91 View Product
Zebra PSU Kit 12V 4.16A 50W Power Supply Kit $75.90 View Product
Zebra Cable Data usb bc1.2 Coiled 2.8m -30c Cable Data usb bc1.2 Coiled 2.8m -30c $113.85 View Product
Zebra Cable Data Usb -30c bc1.2 Coiled 2.7m Cable Data Usb -30c bc1.2 Coiled 2.7m $101.20 View Product
Zebra Cable-Y Power Stealer DS3600-VC5090 9ft -30C Cable-Y Power Stealer DS3600-VC5090 9ft -30C $126.50 View Product
Zebra Cable Data USB-C Shielded 2m Str BC1.2 Cable Data USB-C Shielded 2m Str BC1.2 $87.29 View Product
Zebra Cable Data Scanner rs232 2.8m -30C Pwr Pin 9 Cable Data Scanner rs232 2.8m -30C Pwr Pin 9 $113.85 View Product
Zebra Cable Data Scanner rs232 db9f 6m cld txd2 Cable Data Scanner rs232 db9f 6m cld txd2 $92.35 View Product
Zebra Cable Data Scanner Usb-Shielded 2M str bc1.2 Cable Data Scanner Usb-Shielded 2M str bc1.2 $44.28 View Product
Zebra Cable Data Scanner rs232 2.8m low tem cld Cable Data Scanner rs232 2.8m low tem cld $101.20 View Product
Zebra Bracket Cradle Vibration Dampen stb36/flb36 Bracket Cradle Vibration Dampen stb36/flb36 $94.88 View Product
Zebra Tool Balancer Pulley Tool Balancer Pulley $180.90 View Product
Zebra CBA-RF1-C09PAR TXD2 RS232 Interface Data Cable Cable - Rs232: Db9 Female Connector, 9Ft. $82.23 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ds36x8 Product Reference Guide 13MB Download
PDF Document ds36xx Specs Sheet 972KB Download
PDF Document flb3678 cradle Quick Reference Guide 2MB Download
PDF Document ds3608 Quick Start Guide 9MB Download
