POSMarket SKU: Z4020
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

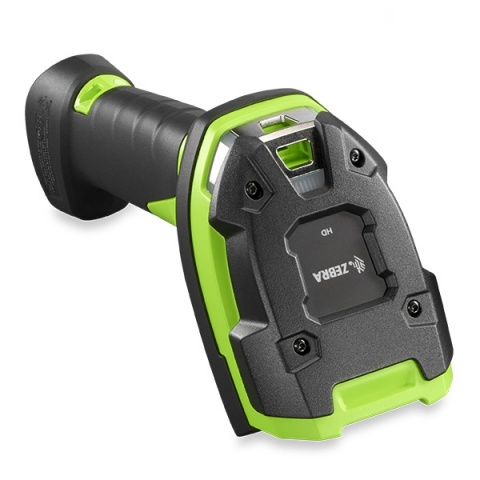

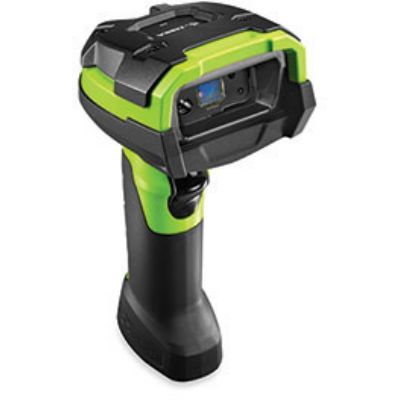

Ultra- Rugged Handheld Digital Barcode Scanner
PHYSICAL CHARACTERISTICS | |
Dimensions | 18.5 cm H x 7.6 cm W x 13.2 cm |
Weight | /305 g |
Colour | Industrial Green |
Supported Host Interfaces | USB, RS232, Keyboard Wedge |
Battery | PowerPrecision+ 3100mAh Li-ion, rechargeable battery |
PERFORMANCE CHARACTERISTICS | |
Scans per full charge | 70,000+ |
Illumination | One (1) Hyper Red 660nm LED |
Imgage field of View | Horizontal: 42°, Vertical: 28° |
Image Sensor | 1,280 x 800 pixels |
Skew/Pitch/Rol | Skew: ± 60°; Pitch: ± 60°; Roll: ± 360° |
DECODE CAPABILITIES | |
1D | Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN Interleaved 2 of 5 Korean 3 of 5 GS1 Databar Base 32 (Italian Pharma) |
2D | PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes |
WIRELESS CONNECTIVITY | |
Bluetooth | Bluetooth Class 1, Verion 4.0 (LE) Serial Port (SPP) HID Profiles |
Radio Range | Direct Line of Sight in open air: Class 1: 100m Class 2: 10m |
USER ENVIRONMENT | |
Operating Temp. | -22° F to 122° F/-30° C to 50° C |
Drop Specification. | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
Model | Description | Price | Stock | |
---|---|---|---|---|
DS3608-SR3U4600VZW | DS3608-SR USB Kit. Includes DS3608-SR Scanner & High current shielded USB cable | $856.41 | Add to Cart | |
DS3608-SR00003VZWW | DS3608-SR Scanner only. Standard Range, does not include interface cable | $814.66 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Zebra EA3600-T1CP-00 | 3600 Series Ethernet Adapter | $944.69 | View Product |
Zebra DC Line Cord with Filter for 3600 Series | DC Line Cord with Filter Used with 3600 Series (Except SAC3600-4001CR) Level 6 AC/DC Power Supply Part PWR-BGA12V50W0WW. | $25.30 | View Product |
Zebra AllTouch Terminal Emulation Support Software | Service Contracts for Zebra products. | $65.78 | View Product |
Zebra SOTI MobiControl Software Support | 3 Year Software Support for SOTI. | $5.06 | View Product |
Zebra TekTerm Client Software Support | 1 year maintenance for TekTerm Client (TekTerm Server maintenance is to be purchased separately). | $82.23 | View Product |
Zebra OneCare Essential for OMNICH | Comprehensive Repair/Replace, Software & Technical Support for the OMNICH. | $55.66 | View Product |
Zebra OneCare Select for OMNICH | Access around-the-clock support with the Zebra OneCare Select plan. | $103.73 | View Product |
Zebra OneCare Essential DS3608 | With three service levels to choose from - Essential, Select and Premier - you'll find a Zebra OneCare for Printers offering that will meet your service requirements and your budget. | $60.72 | View Product |
Zebra Onecare Select DS3608 | Onecare Select DS3608, Next Business day, 3 Year comprehensive | $75.90 | View Product |
Zebra Stand intellistand adj ds3608 blk | Stand intellistand adj ds3608 blk | $94.88 | View Product |
Zebra Multidock Battery 4-Bay li3678/ds3678 | Multidock Battery 4-Bay li3678/ds3678 | $371.91 | View Product |
Zebra PSU Kit 12V 4.16A 50W | Power Supply Kit | $75.90 | View Product |
Zebra Cable Data usb bc1.2 Coiled 2.8m -30c | Cable Data usb bc1.2 Coiled 2.8m -30c | $113.85 | View Product |
Zebra Cable Data Usb -30c bc1.2 Coiled 2.7m | Cable Data Usb -30c bc1.2 Coiled 2.7m | $101.20 | View Product |
Zebra Cable-Y Power Stealer DS3600-VC5090 9ft -30C | Cable-Y Power Stealer DS3600-VC5090 9ft -30C | $126.50 | View Product |
Zebra Cable Data USB-C Shielded 2m Str BC1.2 | Cable Data USB-C Shielded 2m Str BC1.2 | $87.29 | View Product |
Zebra Cable Data Scanner rs232 2.8m -30C Pwr Pin 9 | Cable Data Scanner rs232 2.8m -30C Pwr Pin 9 | $113.85 | View Product |
Zebra Cable Data Scanner rs232 db9f 6m cld txd2 | Cable Data Scanner rs232 db9f 6m cld txd2 | $92.35 | View Product |
Zebra Cable Data Scanner Usb-Shielded 2M str bc1.2 | Cable Data Scanner Usb-Shielded 2M str bc1.2 | $44.28 | View Product |
Zebra Cable Data Scanner rs232 2.8m low tem cld | Cable Data Scanner rs232 2.8m low tem cld | $101.20 | View Product |
Zebra Bracket Cradle Vibration Dampen stb36/flb36 | Bracket Cradle Vibration Dampen stb36/flb36 | $94.88 | View Product |
Zebra Cable Data Scanner USB 4.6M CLD | Cable Data Scanner USB 4.6M CLD | $113.85 | View Product |
Zebra Tool Balancer Pulley | Tool Balancer Pulley | $180.90 | View Product |
Zebra CBA-RF1-C09PAR TXD2 RS232 Interface Data Cable | Cable - Rs232: Db9 Female Connector, 9Ft. | $82.23 | View Product |
Filename | Size | ||
---|---|---|---|
ds36xx Specs Sheet | 958KB | Download | |
flb3678 Quick Reference Guide | 2MB | Download | |
ds3678 Quick Start guide | 3MB | Download | |
ds3608 Manual | 9MB | Download |
