POSMarket SKU: Z4255

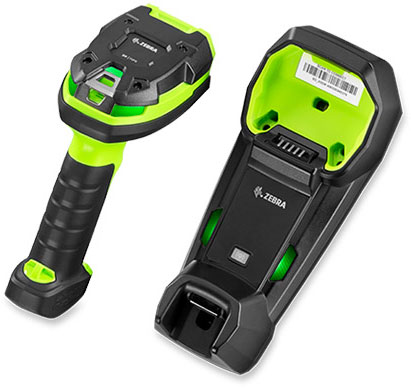

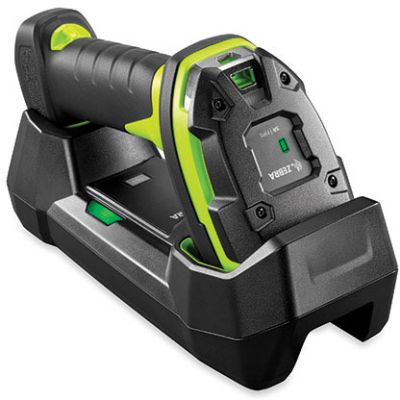

The DS3678-HD is the High Density Scanning version of Zebra's Ultra-Rugged 3600 series of cordless scanners. Designed to capture virtually any small and high-density barcodes printed on electronic components. These scanners are loaded with features, along with the ability to capture standard barcodes, they deliver a single flexible device that can be used from the assembly line to the warehouse.
PHYSICAL CHARACTERISTICS | |
Dimensions | 18.5cm x 7.7cm x 14.2cm |
Weight | 14.5 oz./411 g |
Colour | Industrial Green |
Supported Host Interfaces | USB, RS232, Keyboard Wedge |
Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
PERFORMANCE CHARACTERISTICS | |
Scans per full charge | 70,000+ |
Imager Field of View | Horizontal: 31°, Vertical: 23° |
Illumination | Two warm white light LED's |
Image Sensor | 1280 x 960 pixels |
Skew/Pitch/Roll | Skew: ± 60°; Pitch: ± 60°; Roll: ± 360° |
DECODE CAPABILITIES | |
1D | Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN Interleaved 2 of 5 Korean 3 of 5 GS1 Databar Base 32 (Italian Pharma) |
2D | PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes |
WIRELESS CONNECTIVITY | |
Bluetooth | Bluetooth Class 1, Verion 4.0 (LE) Serial Port (SPP) HID Profiles |
Radio Range | Direct Line of Sight in open air: Class 1: minimum 300 ft. 100m Class 2: minimum 30ft. 10m |
USER ENVIRONMENT | |
Operating Temp. | -4° F to 122° F/-20° C to 50° C |
Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
Tumble Specification | 5000 tumbles @ 3.3 ft. (1 m) |
Sealing | Scanner: IP65 and IP67; FLB cradle: IP65 |
Model | Description | Price | Stock | |
---|---|---|---|---|
DS3678-HD3U42A0SFW | DS3678-HD USB Kit. Includes DS3678-HD 2D Bluetooth scanner, Charge/Comms cradle, USB cable and Power supply | $1,512.94 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Zebra DS3678-SR | The DS3678-SR is the Standard Range Scanning version of Zebra's Ultra-Rugged 3600 series of cordless scanners. | $1,495.23 | View Product |
Zebra EA3600-T1CP-00 | 3600 Series Ethernet Adapter | $944.69 | View Product |
Zebra DC Line Cord with Filter for 3600 Series | DC Line Cord with Filter Used with 3600 Series (Except SAC3600-4001CR) Level 6 AC/DC Power Supply Part PWR-BGA12V50W0WW. | $25.30 | View Product |
Zebra Onecare Select DS3678 2yr Comp+Comm+Dash Rnw | Need a higher level of care? Zebra OneCare Select service delivers more capabilities. | $161.92 | View Product |
Zebra ONECARE SELECT DS3678 1YR COMP+COMM RNW | ONECARE SELECT DS3678 1YR COMP+COMM RNW | $106.26 | View Product |
Zebra Onecare Essential ds3678 2yr Comp rnw | Zebra OneCare Essential service is our foundational service offering, with comprehensive coverage, technical support during your local business hours and 3-day turnaround time on repairs. | $140.42 | View Product |
Zebra Onecare Essential ds3678 1yr Comp rnw | Zebra OneCare Essential service is our foundational service offering, with comprehensive coverage, technical support during your local business hours and 3-day turnaround time on repairs. | $92.35 | View Product |
Zebra Onecare Select ds3678 1 Yr Comp+Comm+Dash | Onecare Select ds3678 1 Yr Comp+Comm+Dash | $111.32 | View Product |
Zebra OneCare Select DS3678 5YR Comp+Comm+Dash | With three service levels to choose from - Essential, Select and Premier - you'll find a Zebra OneCare for budget. | $359.26 | View Product |
Zebra Onecare Select DS3678 3 Year Comp+Comm+Dash | Onecare Select DS3678 3 Year Comp+Comm+Dash | $218.85 | View Product |
Zebra OneCare Essential DS3678 Comp | Get the Service Level You Need. | $77.17 | View Product |
Zebra Multidock Battery 4-Bay li3678/ds3678 | Multidock Battery 4-Bay li3678/ds3678 | $371.91 | View Product |
Zebra EA3600 Siemens Ethernet STB Cradle kit | EA3600 Siemens Ethernet STB Cradle kit | $1,726.73 | View Product |
Zebra Cable Data Usb -30c bc1.2 Coiled 2.7m | Cable Data Usb -30c bc1.2 Coiled 2.7m | $101.20 | View Product |
Zebra Cable Data Scanner usb-Shield 4.6m str bc1.2 | Cable Data Scanner usb-Shield 4.6m str bc1.2 | $82.23 | View Product |
Zebra Cable Data Scanner usb-Shield 12v 2.8m str | Cable Data Scanner usb-Shield 12v 2.8m str | $63.25 | View Product |
Zebra Cable Data Scanner rs232 2.8m -30C Pwr Pin 9 | Cable Data Scanner rs232 2.8m -30C Pwr Pin 9 | $113.85 | View Product |
Zebra Cable Data Scanner rs232 db9f 6m cld txd2 | Cable Data Scanner rs232 db9f 6m cld txd2 | $92.35 | View Product |
Zebra Cable Data Scanner Usb-Shielded 2M str bc1.2 | Cable Data Scanner Usb-Shielded 2M str bc1.2 | $44.28 | View Product |
Zebra Cacble Data Scanner rs232 db9f 2m Str 36xx | Cacble Data Scanner rs232 db9f 2m Str 36xx | $50.60 | View Product |
Zebra Bracket Cradle Vibration Dampen stb36/flb36 | Bracket Cradle Vibration Dampen stb36/flb36 | $94.88 | View Product |
Zebra Tool Balancer Pulley | Tool Balancer Pulley | $180.90 | View Product |
Zebra Battery Adapter Ubc ds ls3x78 | Battery Adapter Ubc ds/ls3x78 | $198.61 | View Product |
Zebra ONECARE ESSENTIAL DS3678 RENEWAL | 1 Year Z1C Essential DS3678, 3 day TAT, coverage for cradles where applicable, Renewal, comprehensive, std commissioning, MOQ 20 | $83.49 | View Product |
Filename | Size | ||
---|---|---|---|
Zebra DS3678-HD High Density Brochure | 972KB | Download | |
ds36x8 Product Reference Guide | 13MB | Download | |
ds3608 Quick Start Guide | 9MB | Download |
