Cino FM-480
from $217.25 (incl. GST)
POSMarket SKU: Z1881
This model is available in 4 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

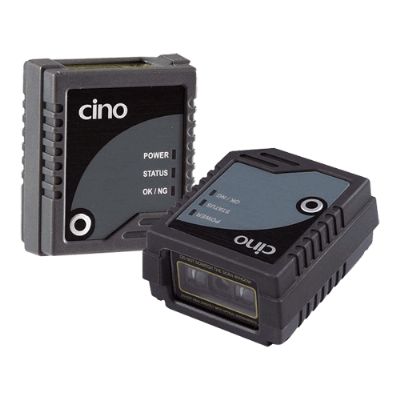

A durable, high-performance, fixed-mount linear imaging scanner for general purpose and industrial applications. Choice of front-view or side-view model for diverse application demands.
Product Overview
A Durable, High performance Fixed Mount Scanner for General Purpose and Industrial Applications
Integrated with the innovative FuzzyScan 3.0 Imaging Technology and durable ultra-compact design, the FM480 series Fixed Mount Scanner from Cino impresses the user with outstanding scanning performance and industrial level dependability. This cost-effective FM480 creates the best value to boost your productivity for industrial and general purpose applications.

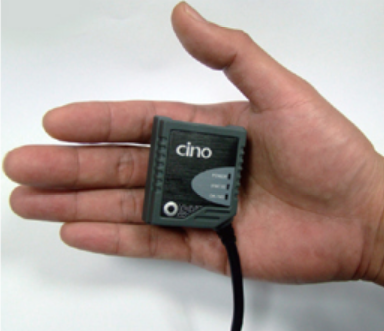

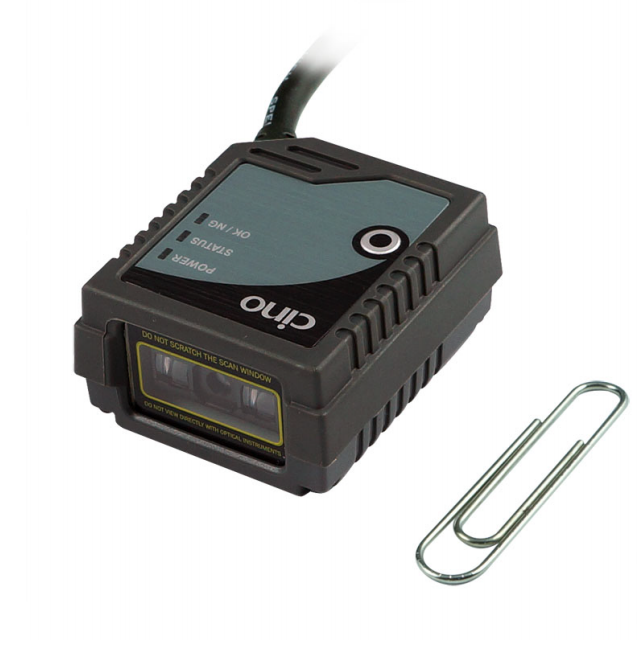

Ultra-compact yet durable design
Thanks to the ultra-compact, robust overmold and IP54 rating construction, the FM480 is not only ideal for embedded scanning solutions such as kiosks and lottery terminals, but also perfect for industrial applications such as conveyer line scanning and test tube verification. The choice of front-view or side-view model and the design of industrial level M3 mounting holes make F480 easy to be mounted anywhere and integrated with any device.
Rich user interface and useful test mode

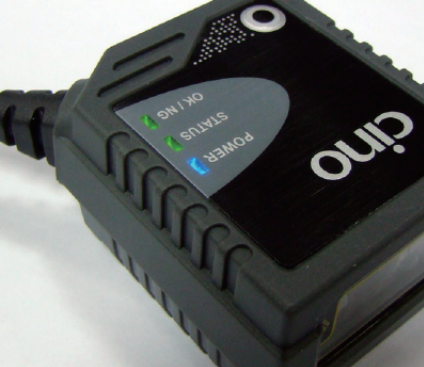

Equipped with 3 visible LED indicators and audible beeper, FM480 provides intuitive indication for users to monitor the reading status. The useful test mode allows users to identify the optimal reading position with ease.
Outstanding reading performance
The FM480 provides superb performance on reading damaged, smudged, poorly-printed and low contrast barcode labels that are commonly found in the real world quickly and accurately.
Features
Integrated with the innovative FuzzyScan 3.0 Imaging Technology and durable ultra-compact design, the FM480 series Fixed Mount Scanner from Cino impresses the user with outstanding scanning performance and industrial level dependability. This cost-effective FM480 creates the best value to boost your productivity for industrial and general purpose applications.
Ultra-compact yet durable design
Thanks to the ultra-compact, robust overmold and IP54 rating construction, the FM480 is not only ideal for embedded scanning solutions such as kiosks and lottery terminals, but also perfect for industrial applications such as conveyer line scanning and test tube verification. The choice of front-view or side-view model and the design of industrial level M3 mounting holes make F480 easy to be mounted anywhere and integrated with any device.
Rich user interface and useful test mode
Equipped with 3 visible LED indicators and audible beeper, FM480 provides intuitive indication for users to monitor the reading status. The useful test mode allows users to identify the optimal reading position with ease.
Outstanding reading performance
The FM480 provides superb performance on reading damaged, smudged, poorly-printed and low contrast barcode labels that are commonly found in the real world quickly and accurately.
Features
- Durable overmold construction and IP54 design
- Ultra-compact and easy mounting design for flexible integration
- Choice of front-view or side-view model for diverse application demands
- Rich indication and user interface for intuitive operations
- Support both external trigger and serial trigger
- Additional OK and NG output signals for precise reading control
- Useful test mode for quick and optimal installation
- Outstanding reading capability on 3 mil barcode with more than 3 depth of field
- Up to 34 reading distance on 100% UPC/EAN symbols
- High speed scanning rate up to 500 scans per second for snappy barcode capture
- Unsurpassed readability on low contrast, soiled, poorly-printed or damaged barcodes
- Supports GS1 DataBar, PDF, MicroPDF and composite code
Product Specifications
| PERFORMANCE CHARACTERISTICS | |
| Scan Engine | High Performance Linear Imaging Engine |
| Light Source | 630 nm visible red LED |
| Scan Pattern | Single Line |
| Scan Rate | Dynamic scanning rate up to 500 scans/sec |
| Contrast Ratio | 20% minimum reflective difference |
| Resolution | Minimum 3 mil (Code 39, PCS 0.9) |
| Depth of field | More then 60 cm on 100% UPC/EAN symbols More then 86 cm on 20 mil code 39 |
| Pitch Angle | +/- 65 deg. |
| Skew Angle | +/- 65 deg. |
| Ambient Light Immunity | 0~100000 Lux |
| DECODE CAPABILITIES | |
| Symbologies supported | Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
| Programming Method | Bar code command, Serial Command Windows Utility - Fuzzyscan Powertool Condensed Data Wizard via bar code command Full featured Data Wizard via Fuzzyscan Powertool |
| ENVIRONMENTAL | |
| Drop Specification | N/A |
| Environmental Sealing | IP54 |
| ESD Protection | Functional after 15kV discharge |
| Operating Environment | -10 to 50 Degrees Celsius RH 5% ~ 95% non condensing |
| Storage Environment | -40 ~ 70 Degrees Celsius RH 5% ~ 95% non condensing |
| EMC/Safety Standards | EMC: CE, FCC, BSMI, VCCI, KC Safety: LED Eye Safety IEC62471, Exempt Group Environmental: Compliant with RoHS directive |
| PHYSICAL CHARACTERISTICS | |
| External Dimensions (WxDxH) | 40.6 x 23.1 x 47.6 mm |
| Weight | 120g (RS232 and Universal version) 95g (USB version) |
| Indicators/Controls | 3 LEDs for power, Status, OK/NG indications Test button Programmable beeper |
| Operating Modes | Trigger, Alternative, Level, Force, Presentation. |
| Communication Type | Corded |
| Interfaces | RS232 serial USB HID (USB Keyboard) USB COM port emulation |
| Supply Voltage | 5VDC 10% |
| Power Consumption | Operating : Typical 165 mA @5VDC Standby : Typical 70 mA @5VDC |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

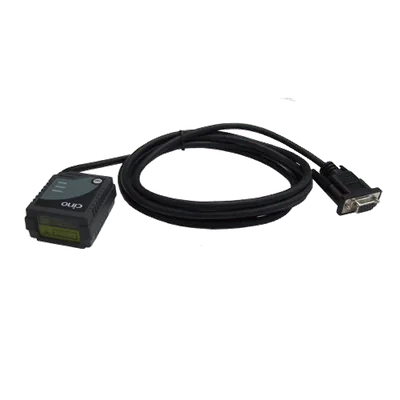

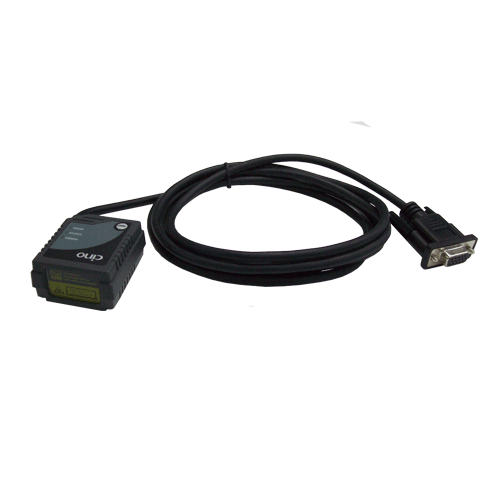

| GPFSM48098S0K01 | Side-view scanner, Universal (USB & RS232) 15 pin interface | $217.25 | Add to Cart | |
| GPFSM48000F0K01 | Front-View scanner, RS232 only interface | $217.25 | Add to Cart | |
| GPFSM48011F0K01 | Front-View Scanner, USB only interface | $217.25 | Add to Cart | |
| GPFSM48098F0K01 | Front-view scanner, Universal (USB & RS232) 15 pin interface | $217.25 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Posiflex AD5VR10P2.5 | Plug Pack for Posiflex MR-2000 MR-2100 | $29.54 | View Product |
| POSMarket Cable USB Micro-B Male to USB-A Male 2M | Cable USB Micro-B Male to USB-A Male 2M | $8.09 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
Cino fm-480 Quick Start Guide | 1MB | Download |
|
fm480 brochure | 296KB | Download |
|
Cino Fixed Mount Programming Manual | 1MB | Download |
