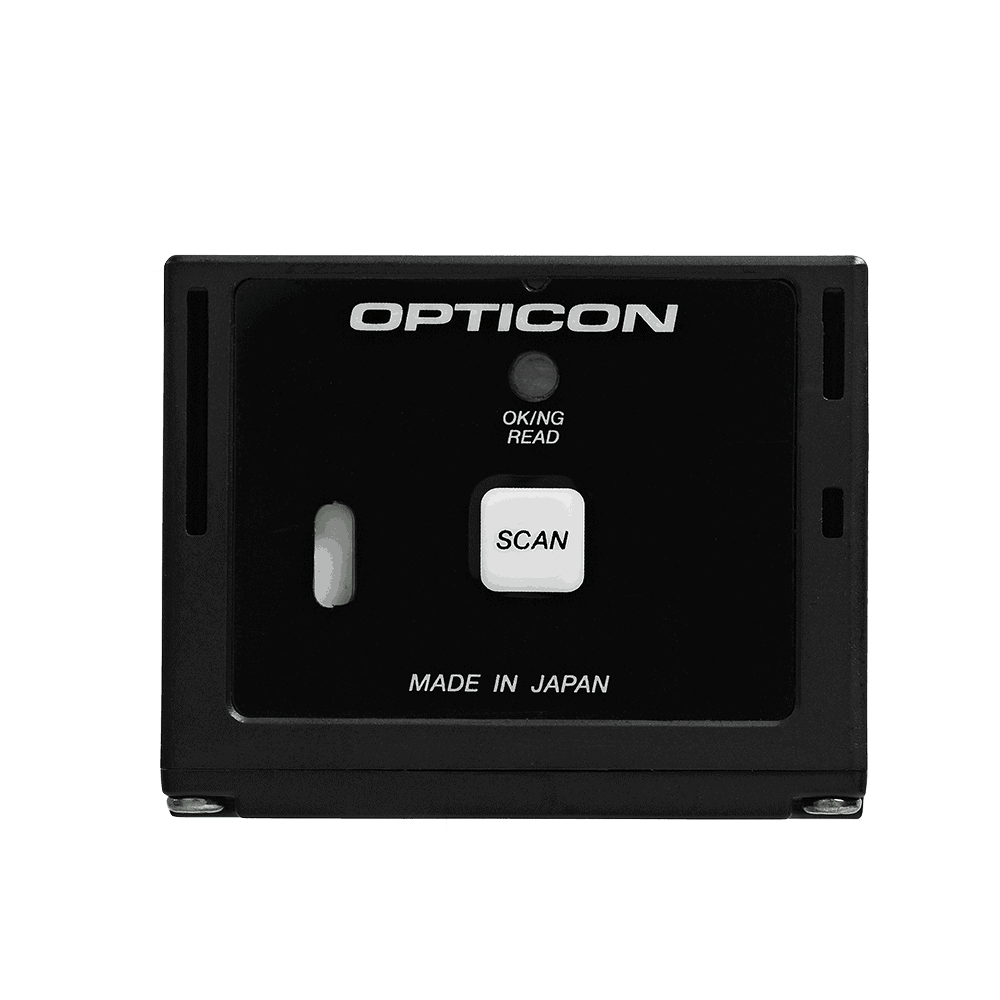

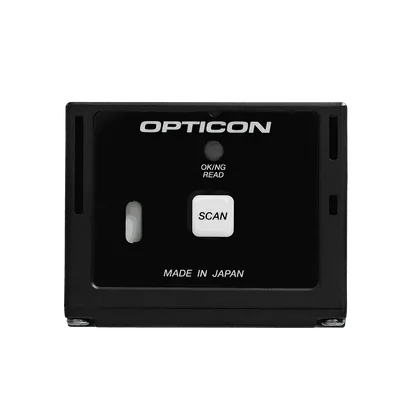

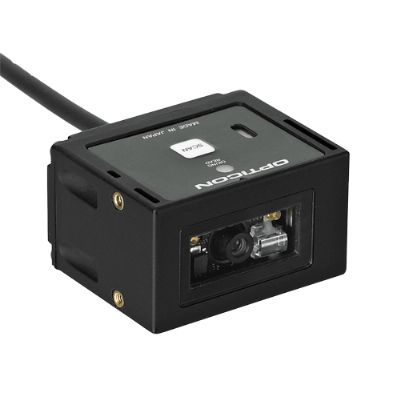

Opticon NLV-3101

from $377.51 (incl. GST)

POSMarket SKU: Z2107

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The NLV3101 is in use within such diverse applications as fast food restaurant E-coupon redemption, car park ticket machines and a high speed medical analysis machine. Measuring just 41.1 x 33 x 24 mm, the NLV3101 is an excellent performing scanner in one of the smallest housings available on the market. Offered with the choice of USB HID/VCP or Serial interface, the NLV3101 is flexible enough to suit most OEM/ODM applications requiring a high specification 2D CMOS camera based barcode scanner.

Product Rating
Product Overview
The Opticon NLV3101 is the latest in our range of 2D CMOS fixed position scanners. The Opticon NLV-3101 has been developed to be used in the most demanding applications requiring a device capable of reading both 1D and 2D barcodes including Retail POS, Self service Kiosks and Medical/Pharmaceutical Analysis machines.

Offered with the choice of USB HID or VCP COM, Serial interface or Wedge , the Opticon NLV3101 is flexible enough to suit most OEM/ODM applications requiring a high specification 2D CMOS camera based barcode scanner.

The Opticon NLV3101 is in use within such diverse applications as fast food restaurant E-coupon redemption, car park ticket machines and a high speed medical analysis machine.

Measuring just 41.1 x 33 x 24 mm, the Opticon NLV-3101 is an excellent performing scanner in one of the smallest housings available on the market.

Features
  • Automatic Scanning Operation
  • 2D Imaging engine
  • RS232, USB or KBW interface
  • Up to 60 Frames per seconds
  • Mobile mode reads barcodes from mobile phones
  • Multiple indicator lights
Product Specifications
Scan EngineCMOS area sensor, gray scale
Scan PatternArea Imager (752 x 480 pixel array)
Motion ToleranceFixed mount
Scan AngleHorizontal 40.6 Degrees, Vertical 26.4 Degrees
Contrast Ratio20% Minimum reflective difference
Pitch AngleN/A
Skew AngleN/A
Resolution0.169 mm / 7 mil at PDF417
0.212 mm / 8 mil at QR code & DataMatrix
Depth of fieldat Code 39
85 - 125 mm res. 0.127 mm / 5 mil
65 - 205 mm res. 0.254 mm / 10 mil
60 - 295 mm res. 0.508 mm / 20 mil
at QR Code
90 - 115 mm res. 0.212 mm / 8.4mil
55 - 195 mm res. 0.381 mm / 15 mil
Performance may be impacted by Bar code quality and environmental conditions
Ambient Light ImmunityFluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
IndicatorsVisual: 1 LED (green/blue/orange)
Non-visual: Buzzer
InterfacesUSB HID, Keyboard Wedge & RS232
Symbologies supported1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, USPS
Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET
2D Code: Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Supply Voltage6V 10%
Power ConsumptionMax. 200 mA
Operating Environment0 Degrees ~ 45 Degrees Celsius, Relative Humidity up tp 20-85% none condensing
Storage Environment-20 Degrees ~ 60 Degrees Celsius, Relative Humidity up tp 20-90% none condensing
Drop SpecificationDesigned to withstand 0.75M drops to concrete
Environmental SealingIP65
ESD Protection15 kV (Non-destructive)
External Dimensions (WxDxH)41.1 x 33 x 24 mm
Weight30 g excluding Cable
Product ComplianceCE, FCC Class B, VCCI Class B, RoHS, IEC 62471, EN55022, EN55024, FDA CDRH Class II
ModelDescriptionPriceStock

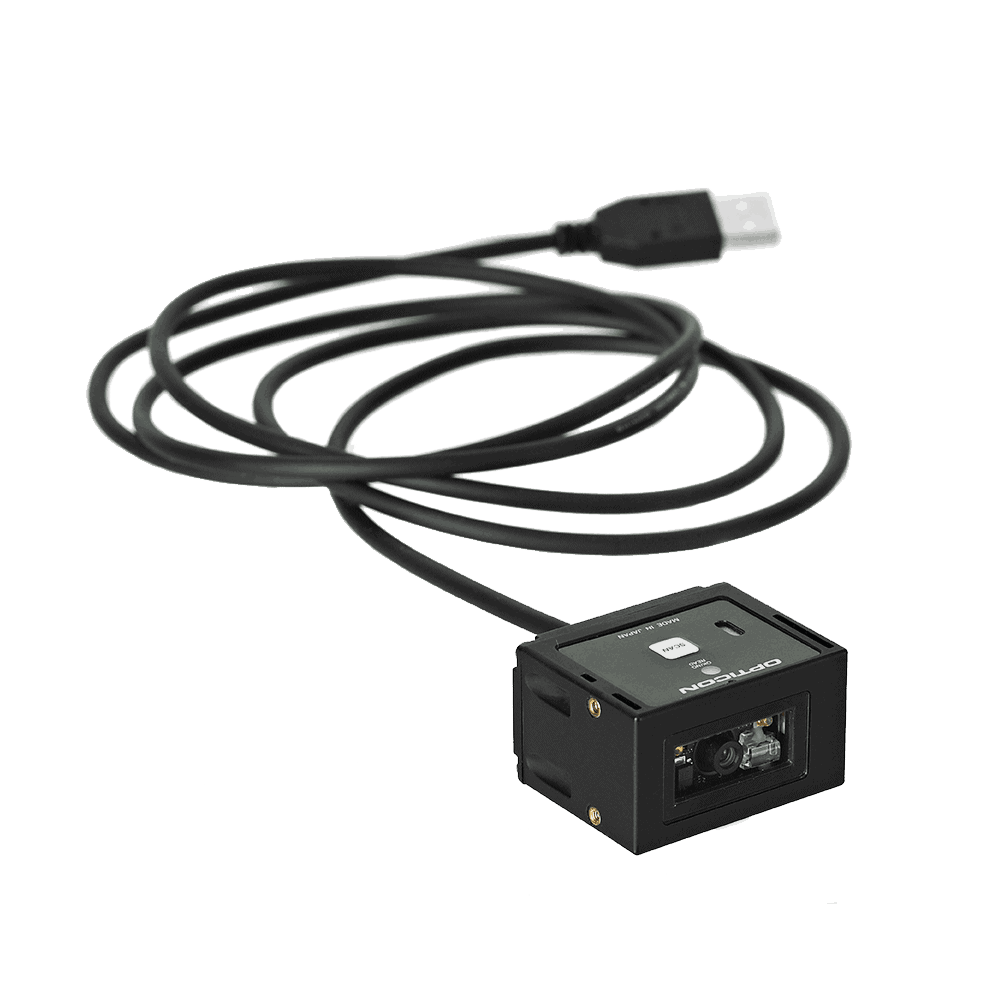

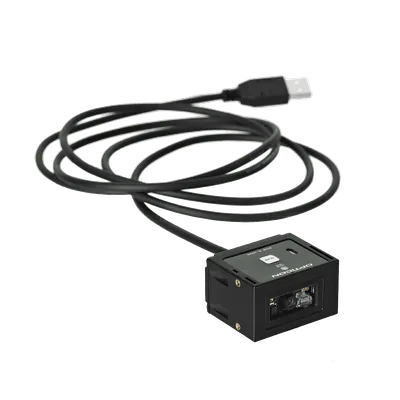

13092 NLV3101 2D Scanner with USB HID interface $377.51
50+
 Add to Cart
13091 NLV3101 2D Scanner with Serial (RS232) interface. Does not include Power supply (add separately if required) $377.51
< 10
 Add to Cart
ModelDescriptionPrices From
Opticon 6VDC2500 1 Power Supply 6V 2A 1.7x4x9.5. For OPC3301 OPH1004 OPH1005 OPH13 OPH32 OPNLV3101 OPR3201 $41.25 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document NLV-3101 Leaflet 595KB Download
PDF Document NLV-3101 DoC 350KB Download
PDF Document NLV-3101 SR Specifications Manual 1MB Download
PDF Document nlv3101 brochure 135KB Download
