Opticon NLV-1001
from $267.78 (incl. GST)
POSMarket SKU: Z2060
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

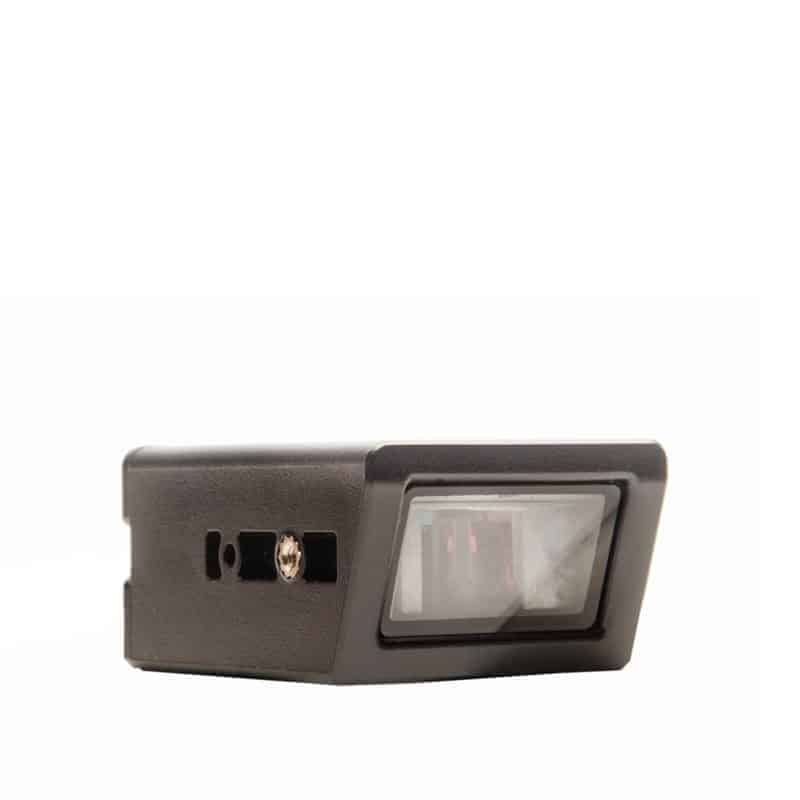

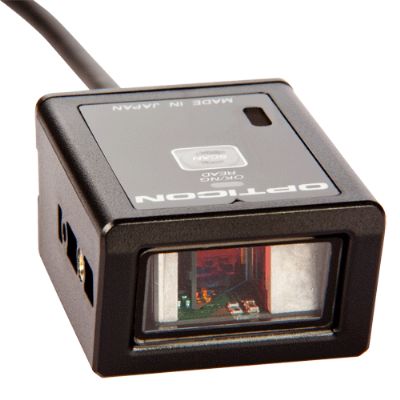

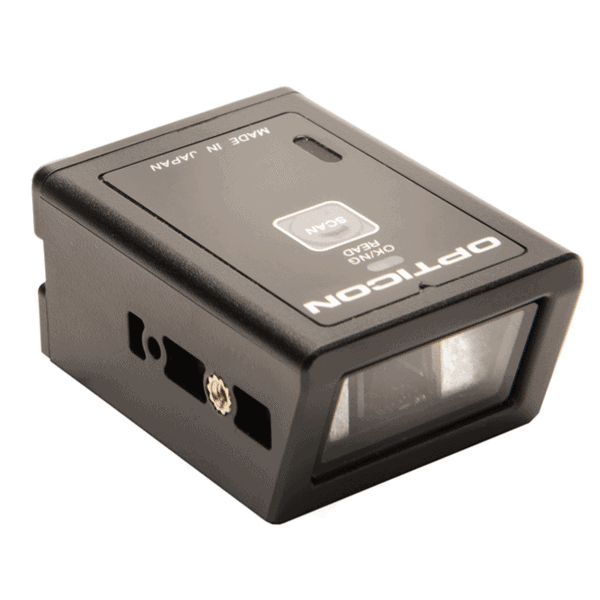

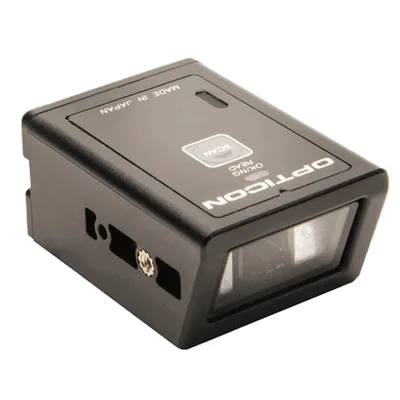

The NLV-1001 is designed to be an easily integrated fixed position scanner. This compact yet rugged scanner is ideal for applications that require a high performance, aggressive laser scanner with the ability to fit into small places.
Product Overview
Stationary barcode scanners are the easiest way to integrate a scanner component into your product or business process. The NLV-1001 is one of these stationary barcode scanners. With this barcode scanner, you don't have to keep pulling the trigger or pushing the button to scan. In fact, just a flip of the switch and NLV-1001 will do all the scanning work for you.
The NLV-1001 is a rugged scanner that is ideal for applications that demand high performance and a good durability. The NLV-1001 is special because it is equipped with an automatic trigger that can be switched on and off. Therefore it is the perfect stationary scanner to optimize your business process with. Furthermore, the laser performs at 100 scans per second and is equipped with a compact ABS housing with multiple mounting options for easy integration in your product.. In addition. the NLV-1001 is available with a RS-232, USB and keyboard wedge interface to fit your design or implementation wishes. The size, without cable, is 30 x 20 x 43.3 mm and weights in at 18.5 g. In conclusion, the NLV-1001 is a compact and fast stationary scanner.
Features
The NLV-1001 is a rugged scanner that is ideal for applications that demand high performance and a good durability. The NLV-1001 is special because it is equipped with an automatic trigger that can be switched on and off. Therefore it is the perfect stationary scanner to optimize your business process with. Furthermore, the laser performs at 100 scans per second and is equipped with a compact ABS housing with multiple mounting options for easy integration in your product.. In addition. the NLV-1001 is available with a RS-232, USB and keyboard wedge interface to fit your design or implementation wishes. The size, without cable, is 30 x 20 x 43.3 mm and weights in at 18.5 g. In conclusion, the NLV-1001 is a compact and fast stationary scanner.
Features
- Compact Fixed-Position Design
At just 18.5 g (0.7 oz) without a cable and 3 cm (1.2 in) wide, the light and ultra-compact design of the
Opticon NLV1001 allows for integration into small spaces. - Plug and Scan Installation
The Opticon NLV1001 comes with mounting holes located on the sides and bottom of the compact housing to maximize mounting options and several interfaces that provide for fast integration. - High Performance Laser Engine
The advanced laser scan engine used in the Opticon NLV1001 offers reliable and improved scanning of all 1D codes including poorly printed and low quality symbols. - Integrated Auto Triggering
In addition to the standard software and manual trigger options, the Opticon NLV1001 integrates an Auto Trigger that automatically initiates scanning of codes all in a compact form factor. - Ensure Data Accuracy
Embedded feature for scanning barcodes twice reduces discrepancies and ensures data accuracy even if the code is oriented in reverse.
Product Specifications
| Scan Engine | Laser |
| Light Source | 650 nm visible laser diode |
| Scan Pattern | Single Line Bi-Directional |
| Scan Rate | 100 Scans/sec |
| Resolution | 0.127 mm / 5 mil |
| Depth of field | 40 - 500 mm (res. 1.0 mm / 39 mil), 20 - 350 mm (res. 0.5 mm / 20 mil) 20 - 200 mm (res. 0.25 mm / 10 mil) 20 - 100 mm (res. 0.15 mm / 6 mil) 30 - 70 mm (res. 0.127 mm / 5 mil) at PCS 0.9, Code 39 |
| Tilt Angle | -20 to 0Degrees, 0 to +2 Degrees |
| Pitch Angle | -35 to 0 Degrees, 0 to +35 Degrees |
| Skew Angle | -50 to -8 Degrees, +8 to +50 Degrees |
| Ambient Light Immunity | Fluorescent 3,000 lux max, Direct Sun 50,000 lux |
| Symbologies supported | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Composite codes, MicroPDF 417, PDF417 |
| Programming Method | Scan Barcodes from Manual |
| Indicators | 1 LED (red/green/orange) |
| Operating Modes | Manual Trigger, Auto Trigger, Stand Detection |
| Communication Type | Cabled |
| Interfaces | RS232 - DB9 PTF connector with external power supply Keyboard Wedge - MiniDIN6 F/M connector USB - Ver. 1.1, HID/VCP, USB-A connector |
| Supply Voltage | 5 V 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232) |
| Power Consumption | Max. 100 mA (typical use) |
| Drop Specification | 1.5 m / 5 ft drop onto concrete surface 10 - 100 Hz with 2G for 1 hour |
| Environmental Sealing | IP42 |
| Operating Environment | -5 to 50 Degrees Celsius RH 5 - 95 % (non-condensing) |
| Storage Environment | -20 to 60 Degrees Celsius RH 5 - 95 % (non-condensing) |
| EMC/Safety Standards | CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
| External Dimensions (WxDxH) | Scanner 56 x 149 x 109 mm Stand 146 x 106 x 295 mm |
| Weight | Scanner 80 g (excl. Cable) Stand 385 g |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

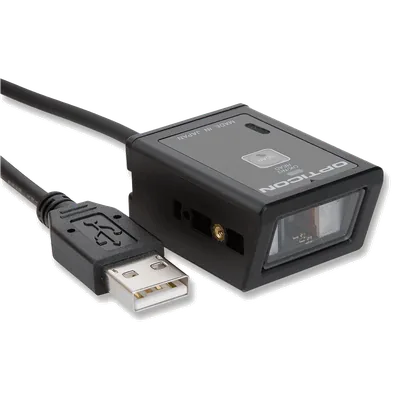

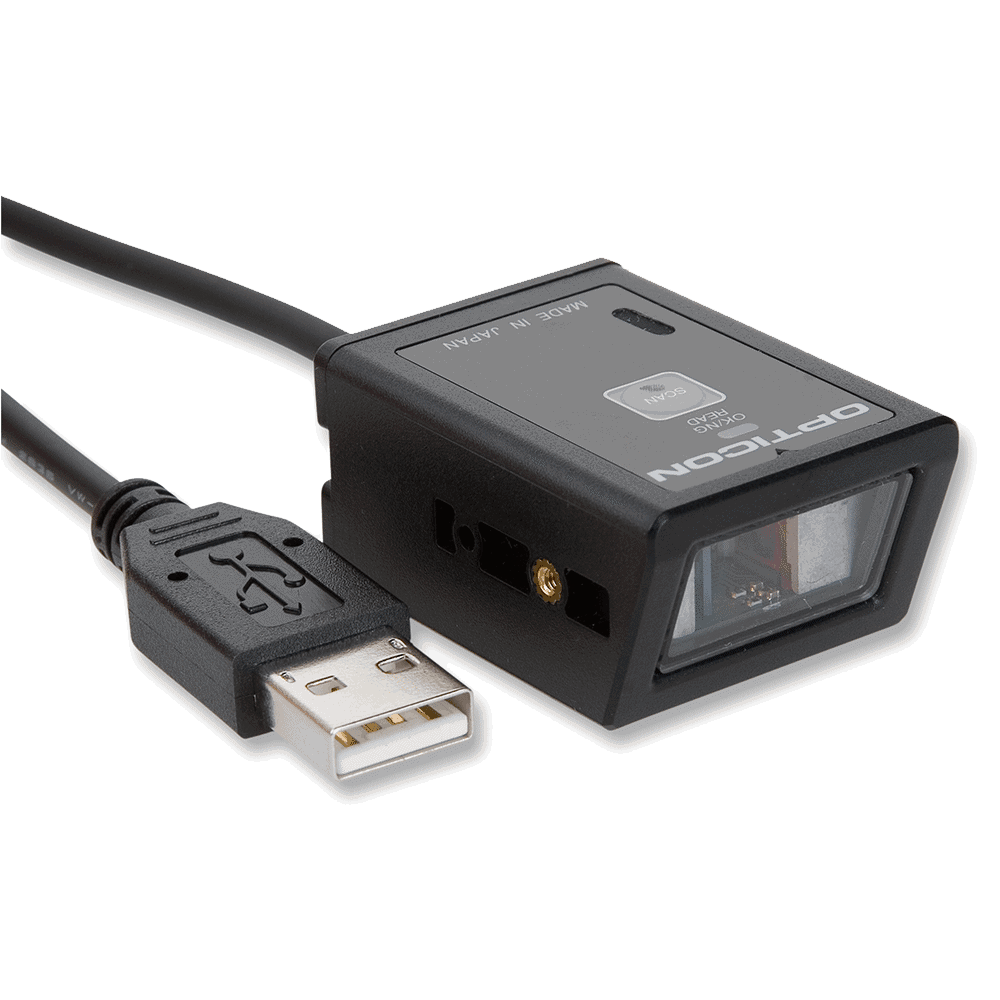

| 11614 | NLV1001 Fixed Mount Laser Scanner. USB HID Interface | $267.78 | Add to Cart | |
| 11613 | NLV1001 Fixed Mount Laser Scanner. RS232 (Serial) Interface | $267.78 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Goodson Plug Pack | Optional PSU - Power Supply Unit (Plug pack) | $32.84 | View Product |
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
nlv-1001 brochure | 827KB | Download |
|
nlv-1001 Specifications Manual | 728KB | Download |
|
nlv-1001 Leaflet | 423KB | Download |
