POSMarket SKU: Z20018
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

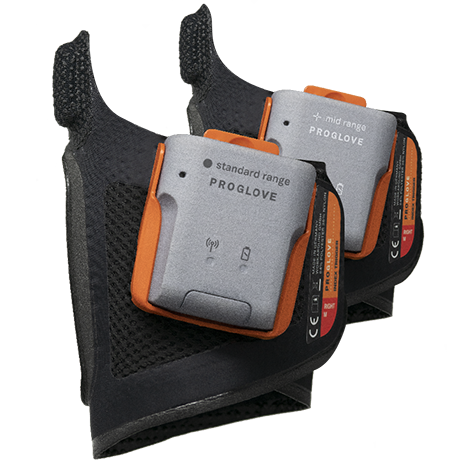

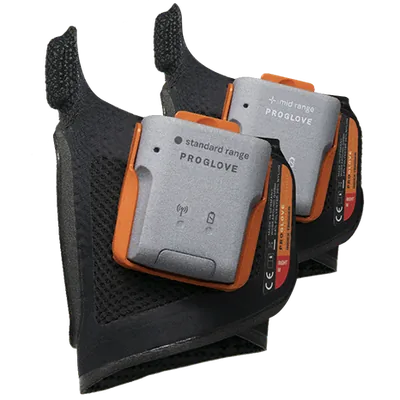

Mark Basic series, Mid Range and Standard Range, 1D and 2D barcode scanner
| ProGlove MARK Basic (mid range or standard range) | |
| Wireless Communication | |
| Bluetooth Low Energy | |
| Bluetooth radio | Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0 |
| Frequency range | Frequency band used BLE: 2400-2483.5 MHz |
| Max radio-frequency Power transmitted | < 20dBm |
| Transmission Range | |
| 3rd party device Free field: 40 m (131 ft ) Indoor: 10-20 m (33-66 ft) | ProGlove Gateway Free field: 70 m (230 ft ) Indoor: 30-40 m (100-130 ft) may decrease in industrial environments (e.g. due to walls, metal shelving, machines) |
| Barcode Decoding Capabilities | |
| 1D | Auto decodes all standard 1D codes including GS1 DataBar linear codes et al. |
| 2D | PDF417, MicroPDF417, Data matrix, QR Code, Micro QR Code, Aztec, MaxiCode et al. |
| POSTAL | US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal (KIX) et al. |
| Electrical Properties | |
| Battery | 335 mAh, Lithium polymer (rechargeable) |
| Charging time | 2 hours with ProGlove Charging Station |
| Operating time/ Scans | Approx. 7000 scans depending on the application and environmental conditions |
| Mechanical Properties | |
| Dimension | 50 x 45 x 16 mm (1.47 x 1.77 x 0.63 in) |
| Weight | 40 g (1.41 oz) |
| Environmental Conditions | |
| Drop resistance | Resists 50 drops from 2 m (6.5 ft) onto concrete |
| Protection against dust and water | IP43 |
| Temperature | |
| Operating Temperature | 0°C - 50°C (32°F – 122°F) |
| Charging Temperature: | 5°C - 40°C (41°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Humidity | 5% - 95% non condensing |
| Electrostatic discharge (ESD) | ±8kVdc air discharge ±4kVdc contact discharge |
| Interfaces | |
| BlueTooth | HID Profiles |
| Android | HID, Insight Mobile (Android) (App/SDK) |
| IOS | HID, Insight Mobile (iOS) (SDK) |
| USB | ProGlove Gateway |
| Scanner Properties | |
| Reading field of view | Standard range: horizontal: 48°, vertical: 36.7° Mid range: horizontal: 31°, vertical 23° |
| Skew, Pitch & Roll | Skew tolerance: ±60° Pitch tolerance: ±60° Roll tolerance: 360° |
| Ambient light | 0 - 96,900 lux |
| Aimer | 650 nm, 1 mW |
| ScanRanges | |
| Minimum distance determined by symbol length, scan-angle and environmental conditions. | |
| Standard Range 3 mil code 39 5 mil code 128 5 mil code PDF417 10 mil DataMatix 100% UPCA 20 mil code | Possible distance between user and barcode 2.8 in./7.1 cm to 6.2 in./15.8 cm 2.3 in./5.8 cm to 8.7 in./22.1 cm 3.0 in./7.6 cm to 8.1 in./20.6 cm 2.4 in.6.1 cm to 10.6 in./26.9 cm 1.6 in./4.1 cm to 23.0 in./58.4 cm 1.6 in./4.1 cm to 36.3 in./92.2 cm |
| Mid Range | |
| The smallest symbol in the barcode (the mil-inch (mm) number indicates the size of the smallest function in the barcode) | Possible distance between user and barcode |
| 5 mil (0.127 mm) code 128 | 7.4 in./18.8 cm to 16.0 in./40.6 cm |
| 5 mil (0.127 mm) PDF417 | 8.1 in./20.6 cm to 13.1 in./33.3 cm |
| 10 mil (0.254 mm) DataMatrix Example: A 10 mil DataMatrix symbol, which can carry 25 alphanumeric characters, has a size of 4.57 mm * 4.57 mm | 7.0 in./17.8 cm to 17.0 in./43.2 cm |
| 100% UPCA | 2.3 in./5.8 cm to 38.0 in./96.5 cm |
| 20 mil (0.508 mm) code 39 | 2.1 in./5.3 cm to 54.0 in./137.2 cm |
| 100 mil (2.54 mm) code 39 | 11.0 in./ 27.9 cm to 172.0 in./ 436.9 cm |
| Utilities & Accessories | |
| Configuration & device management | https://insight.proglove.com |
| Digital documentation | https://docs.proglove.com |
| Android integration | Insight Mobile (Android): Provides a full featured integration for Android enterprise applications. |
| IOS integration | Insight Mobile (iOS): Provides an SDK for basic integration for iOS enterprise applications. |
| Gateway integration | ProGlove Gateway: Hardware connector to enable the full capabilities of the ProGlove Ecosystem via USB-Interface. |
| Trigger | Scanner can be triggered only with ProGlove wearables (REEL, IndexTrigger et al.) *More Information on www.proglove.com |
| Warranty | 12 months factory warranty |
| proGlove Care | 36 and 60 months maintenance contracts available. |
| Safety and regulatory | |
| Radio and electromagnetic compatibility | EU: 2014/53/EU Radio Equipment Directive (RED) FCC ID: 2AOJL-MARK-2 IC: 23450-MARK2 ELECTRICAL SAFETY EU: acc. to 2014/53/EU Radio Equipment Directive (RED) EN 62368-1:2014 + A11:2017 INTERNATIONAL: IEC 62368-1:2014 US: UL 62368-1, 2nd Ed, 2014-12-01 and CAN/CSA C22.2 No. 62368-1-14 LED Classification Standard Range: Excluded risk group LED product according to IEC/EN 62471 LASER Classification Mid Range: According to EN 60825-1: 2014 and IEC 60825-1 (Ed. 3.0) Laser class 2 device. Caution Laser Radiation - Do not stare into beam. Environmental RoHS Directive 2011/65/EU; Amendment 2015/863, REACH SVHC 1907/2006; WEEE |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

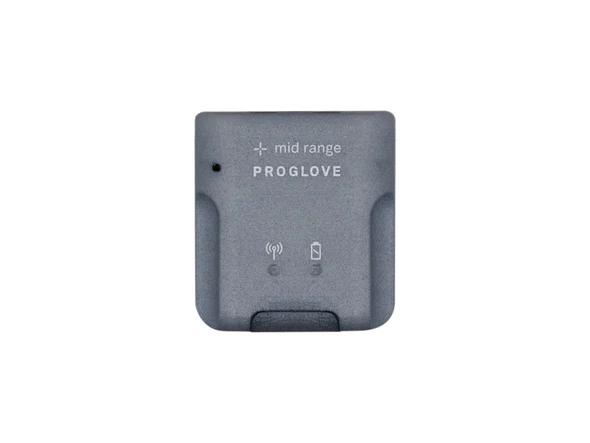

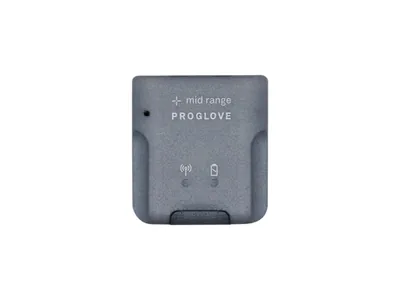

| M005-AP | Mark Basic Mid Range | $1,504.97 | Add to Cart | |

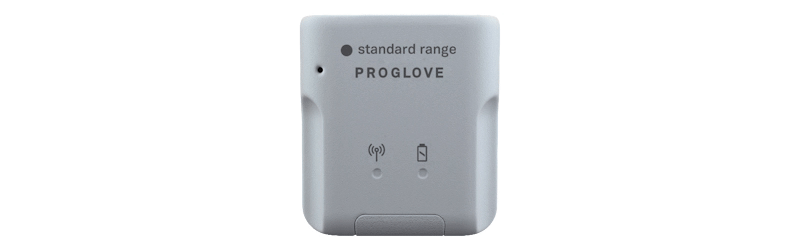

| M007 | Mark Basic Standard Range | $1,504.97 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| ProGlove Charging Station Bundle | Charging station bundle - INT for MARK scanner | $390.57 | View Product |
| ProGlove Index Trigger | Cuff /wrap with side trigger and fixing clip. Pick right or left; Small, medium or large | $289.28 | View Product |
| ProGlove Reel | Reel Bundle, option comes with lanyard | $18.32 | View Product |
| ProGlove ProGlove Care service for Mark Basic | Maintenance service contract for Mark basic barcode scanners | $441.42 | View Product |
| ProGlove Hand Strap | Wrap with side trigger. Pick right or left; One size | $201.38 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
ProGlove MARK Basic Mid_Standard Range Datasheet.pdf | 123KB | Download |
