POSMarket SKU: Z20022
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

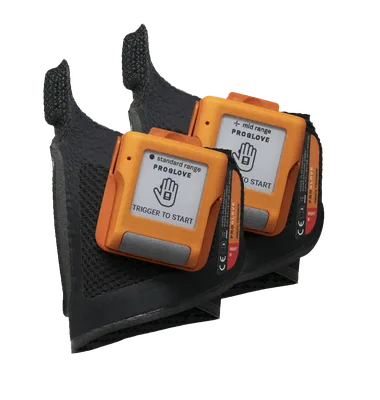

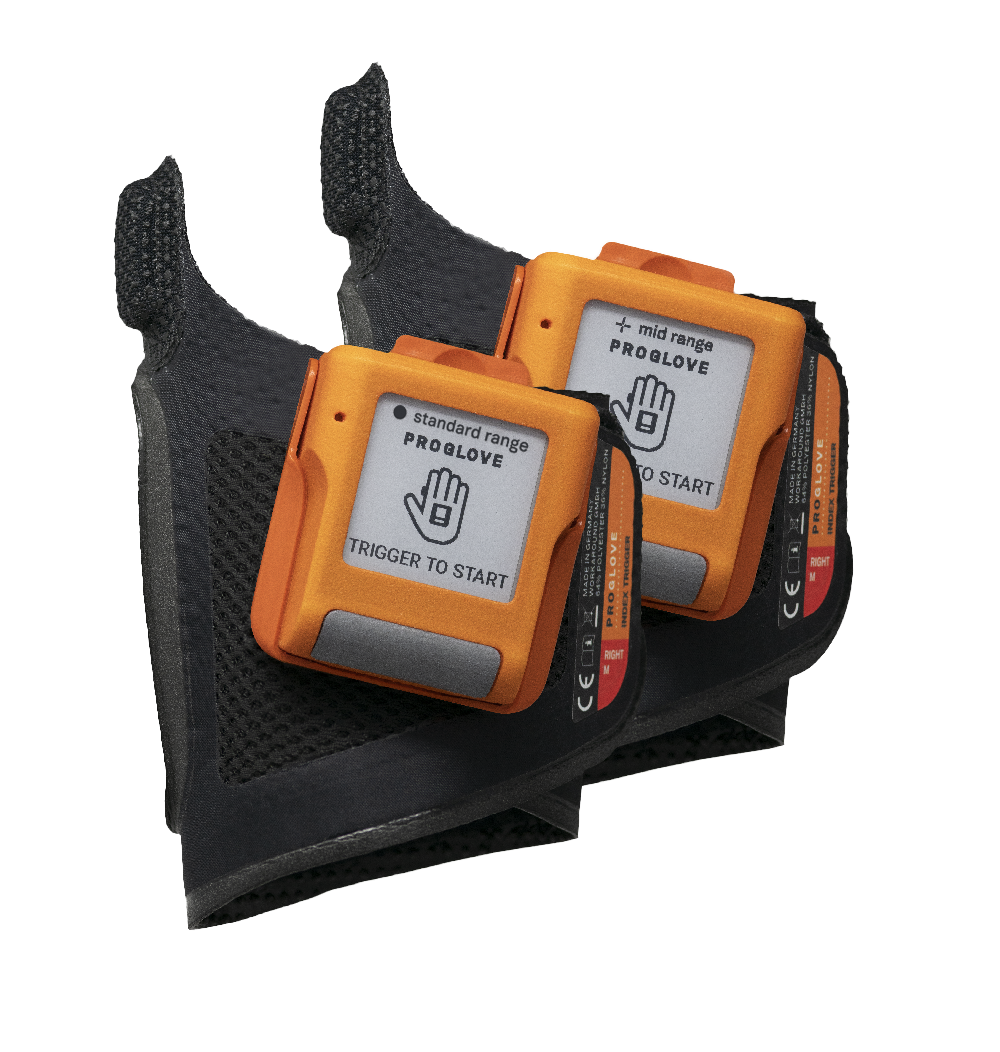

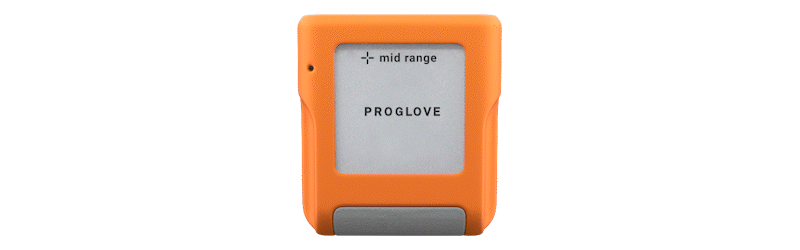

Mid range/ Standard Range; 1D and 2D barcode scanner with 1.54 display
| Mark Display (mid range or standard range) | |
| Wireless Communication Bluetooth low energy | |
| Bluetooth radio | Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0 |
| Frequency range   | Frequency band used BLE: 2400-2483.5 MHz |
| Max radio-frequency Power transmitted  | < 20dBm  |
| Transmission range | Free field: 40 m (131 ft )* Indoor: 10-20 m (33-66 ft)* *may decrease in industrial environments (e.g. due to walls, metal shelving, machines) |
| Barcode Decoding Capabilities | |
| 1D | Auto decodes all standard 1D codes including GS1 DataBar linear codes et al. |
| 2D | PDF417, MicroPDF417, Data matrix, QR Code, Micro QR Code, Aztec, MaxiCode, et al. |
| Postal | US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal (KIX) et al. |
| Display | |
| Display | E- Paper display |
| Size | 1.54 inch |
| Resolution | 200 x 200 pixel resolution, 188 Dpi |
| Electrical Properties | |
| Battery | 670 mAh, Lithium polymer (rechargeable) |
| Charging time | 2 hours with ProGlove Charging Station |
| Operating time / Scans | approx. 7500 scans depending on the application and environmental conditions |
| Mechanical Properties | |
| Dimensions | 50 x 45 x 18 mm (1.47 x 1.77 x 0.7 in) |
| Weight | 48 g (1.7 oz) |
| Environmental Conditions | |
| Drop resistance | 50 drops from 2 m (6.5 ft) onto concrete |
| Tumbles | 500 tumbles from 1 m |
| Protection against dust and water | IP 54 |
| Temperature | |
| Operating Temperature | 0°C - 45°C (32°F – 113°F ) |
| Charging Temperature | 5°C - 40°C (41°F – 104°F ) |
| Storage Temperature | -20°C - 60°C (-4°F – 140° F) |
| Humidity | 5% - 95% non-condensing |
| Electrostatic Discharge (ESD) | +/-19kVdc air discharge +/-17kVdc contact discharge |
| Interfaces | |
| Android | Insight Mobile (App/SDK) |
| IOS | ProGlove iOS SDK |
| USB | ProGlove Gateway |
| Scanner Properties | |
| Reading field of view | Standard range: horizontal: 48°, vertical: 36.7°
Mid range: horizontal: 31°, vertical 23° |
| Skew, Pitch & Roll | Skew tolerance: ±60°
Pitch tolerance: ±60° Roll tolerance: 360° |
| Ambient light | 0 - 96,900 lux |
| Aimer | 650 nm, 1 mW |
| Scan Ranges | Minimum distance determined by symbol length, scan-angle and environmental conditions |
| Standard range | |
| The smallest symbol in the barcode (the mil-inch (mm) number indicates the size of the smallest function in the barcode) | Possible distance between user and barcode |
| 3 mil code 39 | 2.8 in./7.1 cm to 6.2 in./15.8 cm |
| 5 mil code 128 | 2.3 in./5.8 cm to 8.7 in./22.1 cm |
| 5 mil code PDF417 | 3.0 in./7.6 cm to 8.1 in./20.6 cm |
| 10 mil DataMatix | 2.4 in.6.1 cm to 10.6 in./26.9 cm |
| 100% UPCA | 1.6 in./4.1 cm to 23.0 in./58.4 cm |
| 20 mil code | 39 1.6 in./4.1 cm to 36.3 in./92.2 cm |
| Mid Range | |
| 5 mil (0.127 mm) code 128 | 7.4 in./18.8 cm to 16.0 in./40.6 cm |
| 5 mil (0.127 mm) PDF417 | 8.1 in./20.6 cm to 13.1 in./33.3 cm |
| 10 mil (0.254 mm) DataMatrix Example: A 10 mil DataMatrix symbol, which can carry 25 alphanumeric characters, has a size of 4.57 mm * 4.57 mm | 7.0 in./17.8 cm to 17.0 in./43.2 cm |
| 100% UPCA | 2.3 in./5.8 cm to 38.0 in./96.5 cm |
| 20 mil (0.508 mm) code 39 | 2.1 in./5.3 cm to 54.0 in./137.2 cm |
| 100 mil (2.54 mm) code 39 | 11.0 in./ 27.9 cm to 172.0 in./ 436.9 cm |
| Warranty | 12 months factory warranty |
| ProGlove care | 36 and 60 months maintenance contracts available. For more information please contact your ProGlove representative or visit https://proglove.com |
| Safety and Regulatory | |
| Radio and electromagnetic compatibility | EU: 2014/53/EU Radio Equipment Directive (RED) FCC ID: 2AOJL-MARK-2 IC: 23450-MARK2 |
| Electrical safety EU | acc. to 2014/53/EU Radio Equipment Directive (RED) EN 62368-1:2014 / A11: 2017 INTERNATIONAL: IEC 62368-1:2014 US: UL 62368-1, 2nd Ed, 2014-12-01 and CAN/CSA C22.2 No. 62368-1-14 |
| LED classification | Standard Range: Excluded risk group LED product according to IEC/EN 62471 |
| Laser classification | According to EN 60825-1: 2014 and IEC 60825-1 (Ed. 3.0) Laser class 2 device. Caution Laser Radiation - Do not stare into beam. |
| Environmental | RoHS Directive 2011/65/EU; Amendment 2015/863, REACH SVHC 1907/2006, WEEE |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| M006-AP | Mark Display Mid Range, orange | $2,446.74 | Add to Cart | |
| M008 | Mark Display Standard Range, orange | $2,446.74 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| ProGlove Charging Station Bundle | Charging station bundle - INT for MARK scanner | $390.57 | View Product |
| ProGlove Index Trigger | Cuff /wrap with side trigger and fixing clip. Pick right or left; Small, medium or large | $289.28 | View Product |
| ProGlove Reel | Reel Bundle, option comes with lanyard | $18.32 | View Product |
| ProGlove ProGlove Care service for Mark Display | Maintenance contract service for Mark Display barcode scanners | $585.87 | View Product |
| ProGlove Hand Strap | Wrap with side trigger. Pick right or left; One size | $201.38 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
ProGlove User Manual | 4MB | Download |
|
MARK Family Quickstart Guide | 2MB | Download |
|
MARK Display | 167KB | Download |
