POSMarket SKU: Z7588
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

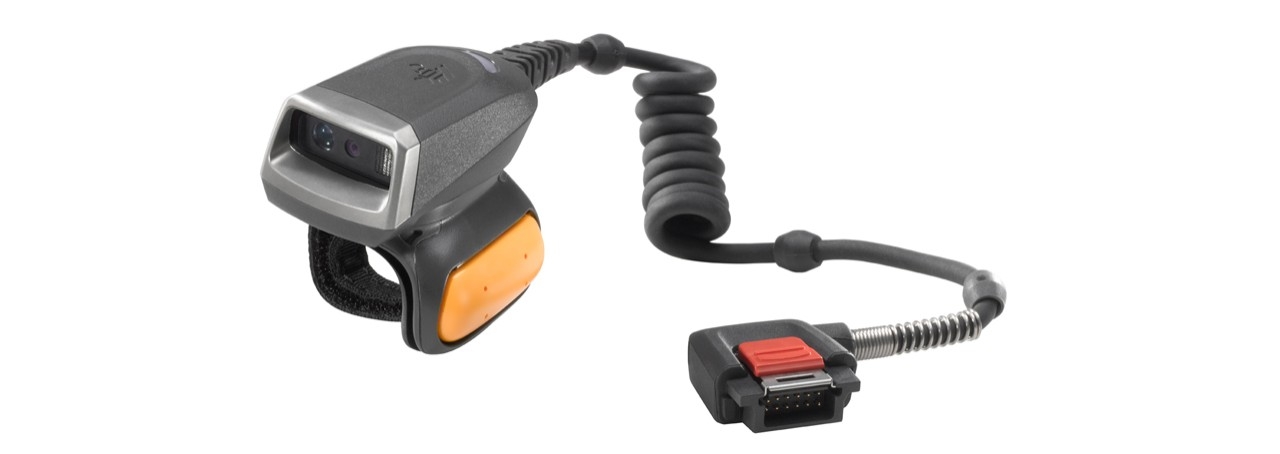

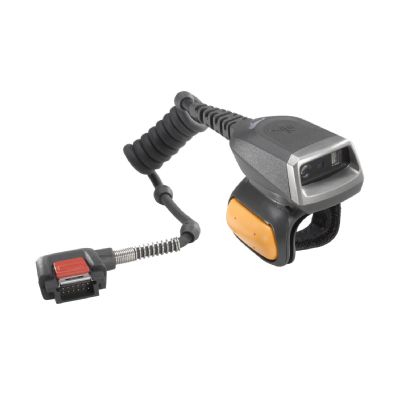

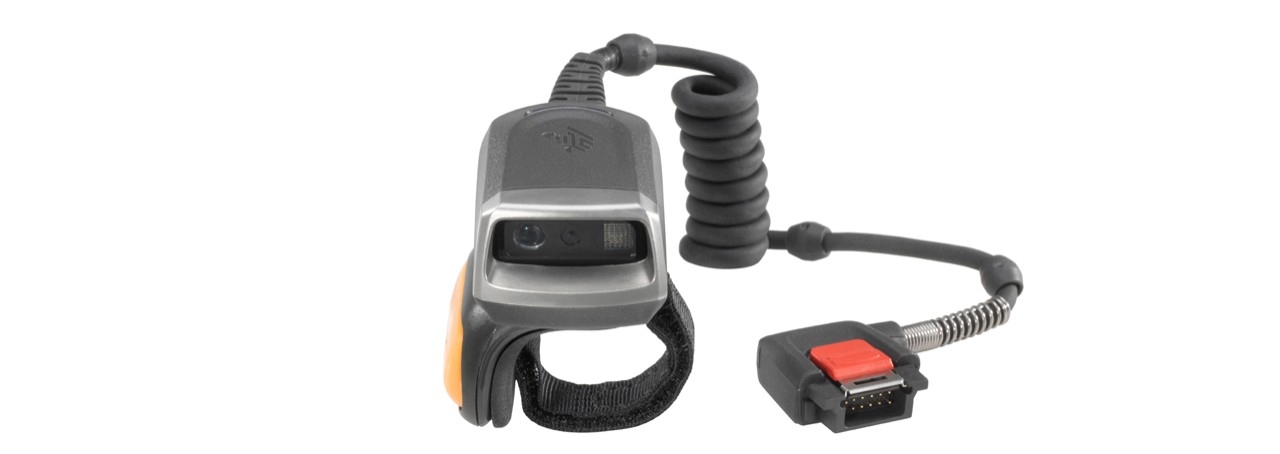

The RS5000 Ring Scanner is Zebra's wearable scanner designed for challenging warehouse & manufacturing environments. Suitable for sub-zero environments, it can be used in freezers and warehouse aisles and supports 1D and 2D scanning.
MODELS | |
RS5000 Short Cable version for WT6000 (RS5000-LCFSWR)
RS5000 Long Cable version for WT6000 (RS5000-LCFLWR) RS5000 Short Cable version for WT41N0 (RS5000-LCBSWR) | |
PHYSICAL CHARACTERISTICS | |
Dimensions | 51.5mm L x 32mm W x 27.5mm |
Weight | WT41 version weight: 92 g
WT6000 short cable version: 76 g WT6000 long cable version: 112 g |
PERFORMANCE CHARACTERISTICS | |
Optical Resolution | 1280 x 800 pixels |
Roll; Pitch; Skew | 360°; ±60° from normal; ±60° from normal |
Aiming Element | 610nm LED |
Illumination | One Hyper Red 660nm LED |
Field of View | Horizontal: 42°, Vertical: 28.0° |
Ambient Light Immunity (from total darkness) | Indoor: 450 ft. candles (4,845 lux)
Outdoor: 9,000 ft. candles (96,900 lux) |
Supported 1D Symbologies | Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma) |
Supported 2D Symbologies | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes. |
USER INTERFACE | |
LED | Two color red/green scan status LED |
Scan Triggering | Manual ambidextrous trigger |
USER ENVIRONMENT | |
Operating Temp. | -22°F to +122°F/-30°C to +50°C |
Storage Temp. | -40°F to +140°F/-40°C to +60°C |
Humidity | 5% to 95% non-condensing |
Drop rating | Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range |
Tumble Rating | 1,000 tumbles @ 0.5 m at room temperature |
Sealing | IEC 60529: IP65 |
Vibration | Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis |
Electrostatic Discharge (ESD) | +/-20kVdc air discharge +/-10kVdc contact discharge |
SE4710 FOCUS RANGE* | |
Symbology | Near - Far |
5 mil Code 39 | 2.75 in./6.9 cm - 12 in./30.4 cm |
5 mil Code 128 | 3.5 in./8.89 cm - 7.5 in./19.0 cm |
5 mil PDF417 | 4.25 in./10.8 cm - 7.25 in./18.4 cm |
10 mil DataMatix | 3.75 in./9.5 cm - 9 in./22.8 cm |
100% UPCA | 1.8 in./4.5 cm - 19.75 in./50.1 cm |
20 mil Code 39 | 2 in./5.0 cm - 25 in./63.5 cm |
Model | Description | Price | Stock | |
---|---|---|---|---|
RS5000-LCBSWR | RS5000 Ring Scanner. 2D Standard Range, Trigger, Short Cable, for WT41N0 | $1,349.76 | Add to Cart | |
RS5000-LCFLWR | RS5000 Ring Scanner. 2D Standard Range, Long Cable, for WT6000 | $1,325.72 | Add to Cart | |
RS5000-LCFSWR | RS5000 Ring Scanner. 2D Standard Range, Short Cable, for WT6000 | $1,263.74 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
Zebra ONECARE SELECT RS5000 | Zebra OneCare service is the foundational service offering, with comprehensive coverage that includes printer cleaning and adjustment, technical support during your local business hours and 3-day turnaround time on repairs. | $360.53 | View Product |
Zebra OneCare Essential for RS5000 | Comprehensive Repair/Replace, Software & Technical Support for RS5000. | $478.17 | View Product |
Zebra OneCare Essential ​RS5000 1 Yr Comp | OneCare Essential RS5000 1 Yr Comp | $197.34 | View Product |
Zebra Onecare Essential RS50XX 5 Year Comp+Comm+Dash | Onecare Essential RS50XX 5 Year Comp+Comm+Dash | $647.68 | View Product |
Zebra Onecare Essential RS5000 3 Year Comp | Onecare Essential RS5000 3 Year Comp | $287.16 | View Product |
Zebra Trigger Assembly rs5000 | Trigger Assembly rs5000 | $35.42 | View Product |
Zebra Finger Strap Trigger Velcro 10pk RS6000 | Finger Strap Trigger Velcro 10pk RS6000 | $17.71 | View Product |
Zebra PAD WRIST MOUNT REPLACEMENT RS5000 5PK | PAD WRIST MOUNT REPLACEMENT RS5000 5PK | $16.45 | View Product |
Filename | Size | ||
---|---|---|---|
Zebra RS5000 brochure | 455KB | Download | |
Zebra RS5000 Quick Start Guide | 3MB | Download |
