POSMarket SKU: Z4234
This product has been replaced by the Zebra RS6100. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

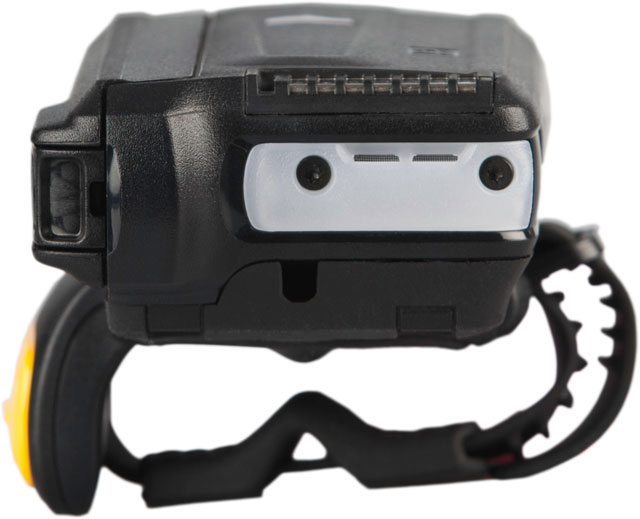

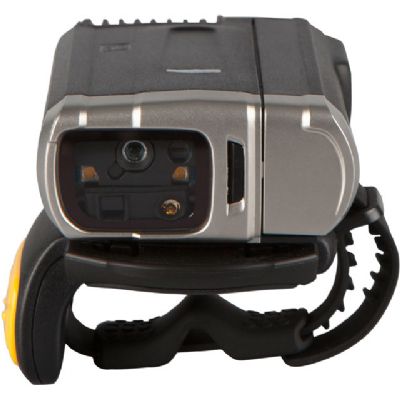

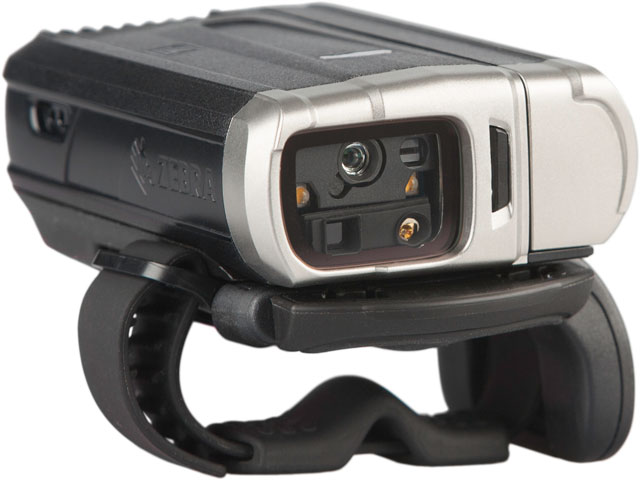

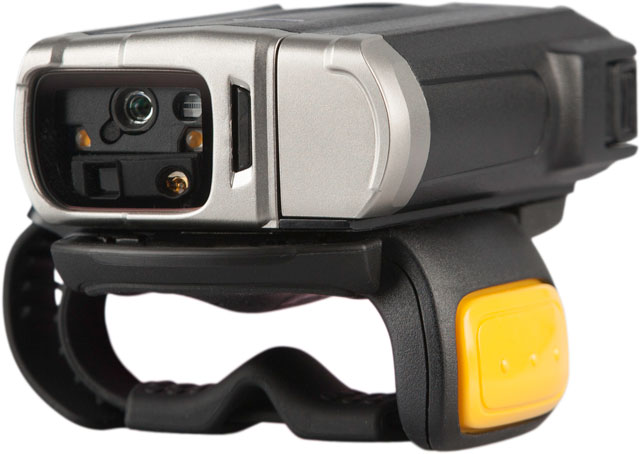

The Zebra RS6000 1D 2D Bluetooth Ring Scanner is the most advanced & rugged Bluetooth ring scanner in the industry. With the ability to scan faster and almost 4 times farther than the competition, and up to 5 times longer battery life, the RS6000 is the choice for hands free scanning in warehouses & logistics industries.
PHYSICAL CHARACTERISTICS | |
Dimensions | 74 mm L x 54 mm W x 33 mm |
Weight | Triggered, with battery: 6.46 oz./183 g Triggerless, with battery: 6.00 oz./170 g |
Power | 3350 mAh capacity; PowerPrecision+; Li-Ion Battery Pack |
PERFORMANCE CHARACTERISTICS | |
Optical Resolution | 1280 x 960 pixels |
Roll; Pitch; Skew | 360°; ±60° from normal; ±60° from normal |
Aiming Element | |
Illumination | 655nm Laser |
Illumination Element | Two (2) warm white light LEDs |
Field of View | SR: Horizontal: 48°, Vertical: 36.7° MR: Horizontal: 31°, Vertical: 23° |
Ambient Light Immunity (from total darkness) | Indoor: 450 ft. candles (4,845 lux)
Outdoor Triggered: 9,000 ft. candles (96,900 lux) Outdoor Triggerless: up to 2,000 ft. candles (21,528 lux) |
Motion Tolerance | 25 inch per second, typical |
Supported 1D Symbologies | Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma) |
Supported 2D Symbologies | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
Supported OCR Symbologies | OCR-A, OCR-B, MICR E13B, US Currency |
Supported Aiming Modes | Class 2 Laser, cross hair with bright center for sunlight visibility; Pick List mode configurable |
Connectivity | Bluetooth: Class I, v 4.0 with Bluetooth Low Energy (BLE)
Supporting Profiles: Serial Port Profile (SPP), Human Interface Device Profile (HID), Service Discovery Application Profile (SDAP) NFC Tag: Tap-to-Pair; used to simplify the pairing process. Pairing: by reading terminal BT address as a barcode on the host Zebra device. |
USER INTERFACE | |
LED | Line of Sight (LOS) 2 RGB LEDs located at the back side of the device (programmable) Radio and battery capacity status 1 RGB LED located on the top side of the device |
Beeper | Up to 85 dBA @ 10 cm from the back of the device beeper port |
Restore Key | User accessible for emergency warm boot and Bluetooth reconnect (after disconnect timeout) |
Scan Triggering | Manual or automatic via Proximity Sensor technology |
USER ENVIRONMENT | |
Operating Temp | -22°F to +122°F/-30°C to +50°C |
Storage Temp | -40°F to +140°F/-40°C to +60°C incl. battery
-40°F to +158°F/-40°C to +70°C excl. battery |
Humidity | 5% to 95% non-condensing |
Drop Rating | Multiple 6 ft. /1.8 m drops to concrete over the operating temperature range |
Tumble Rating | 1,000 tumbles @ 0.5 m |
Sealing | IEC 60529: IP65 |
Vibration | Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis |
Electrostatic Discharge (ESD) | +/-20kVdc air discharge +/-10kVdc contact discharge |
Model | Description | Price | Stock | |
---|---|---|---|---|
RS60B0-MRSCWR | RS6000 Ring Scanner. 2D Mid Range scanner, Bluetooth, Manual trigger with Cam buckle, 3350mAh Standard battery | $1,515.47 | Add to Cart | |
RS60B0-MRSTWR | RS6000 Ring Scanner. 2D Mid Range scanner, Bluetooth, Manual trigger, 3350mAh Standard battery, Proximity sensor | $1,515.07 | Add to Cart | |
RS60B0-SRSCWR | RS6000 Ring Scanner. 2D Standard Range scanner, Bluetooth, Manual trigger with Cam buckle & Nylon strap, 3350mAh Standard battery, Proximity sensor | $1,486.38 | Add to Cart | |
RS60B0-SRSTWR | RS6000 Ring Scanner. 2D Standard Range scanner, Bluetooth, Manual trigger, 3350mAh Standard battery, Proximity sensor | $CALL |
Model | Description | Prices From | |
---|---|---|---|
Zebra WT6000 RS6000 USB Multi Dock | Introducing the WT6000/RS6000 2-slot USB cradle, designed to charge one wearable terminal and one ring scanner simultaneously. | $371.91 | View Product |
Zebra OneCare Essential for HS31XX | Comprehensive Repair/Replace, Software & Technical Support for HS31XX. | $93.61 | View Product |
Zebra AllTouch Terminal Emulation Support Software | Service Contracts for Zebra products. | $65.78 | View Product |
Zebra Enterprise Browser 2 Software Support | 1 year software support for Zebra Enterprise Browser | $29.10 | View Product |
Zebra SOTI MobiControl Software Support | 3 Year Software Support for SOTI. | $5.06 | View Product |
Zebra TekTerm Client Software Support | 1 year maintenance for TekTerm Client (TekTerm Server maintenance is to be purchased separately). | $82.23 | View Product |
Zebra OneCare Essential for OMNICH | Comprehensive Repair/Replace, Software & Technical Support for the OMNICH. | $55.66 | View Product |
Zebra OneCare Essential for WAP3XX | Comprehensive Repair/Replace, Software & Technical Support for WAP3XX. | $225.17 | View Product |
Zebra OneCare Select RS6000 Comp+Comm+Dash | With three service levels to choose from - Essential, Select and Premier - you'll find a Zebra OneCare for budget. | $311.19 | View Product |
Zebra OneCare Essential for RS6000 Comp | Zebra OneCare Essential service is our foundational service offering, with comprehensive coverage, technical support during your local business hours and 3-day turnaround time on repairs. | $142.95 | View Product |
Zebra RS6000 Replacement Strap Holder | rs6000 Replacement Strap Holder | $53.13 | View Product |
Zebra Finger Strap Trigger Velcro 10pk RS6000 | Finger Strap Trigger Velcro 10pk RS6000 | $17.71 | View Product |
Zebra Buckles for velcro finger strap 10pk RS6000 | Buckles for velcro finger strap 10pk RS6000 | $39.22 | View Product |
Zebra Dock Charge/Comms 1-Bay RS6000 | Zebra, RS6000 Single Slot USB Cradle Charger, With Spare Battery Charging, Charges One Ring Scanner And One Spare Battery, Requires USB Cable, Power Supply And AC Line Cord. | $371.91 | View Product |
Zebra Battery Standard 3350mah wt6000/rs6000 | Battery Standard 3350mah wt6000/rs6000 | $156.86 | View Product |
Filename | Size | ||
---|---|---|---|
Zebra RS6000 User Guide | 11MB | Download | |
Zebra RS6000 Quick Start Guide | 3MB | Download | |
Zebra RS6000 Brochure | 294KB | Download | |
Zebra wearable computers accessory guide | 3MB | Download |
