Element MSR213
POSMarket SKU: Z9074

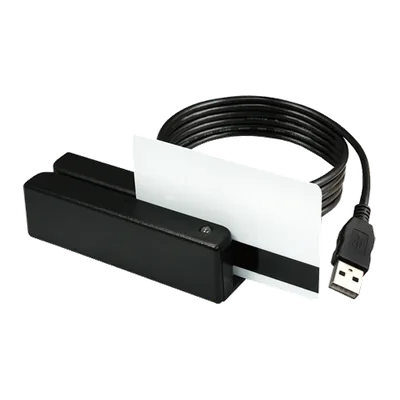

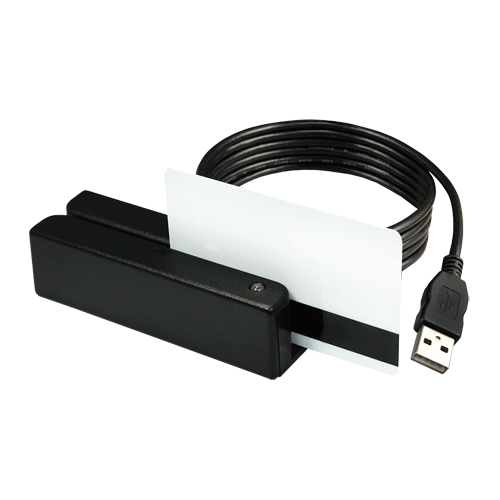

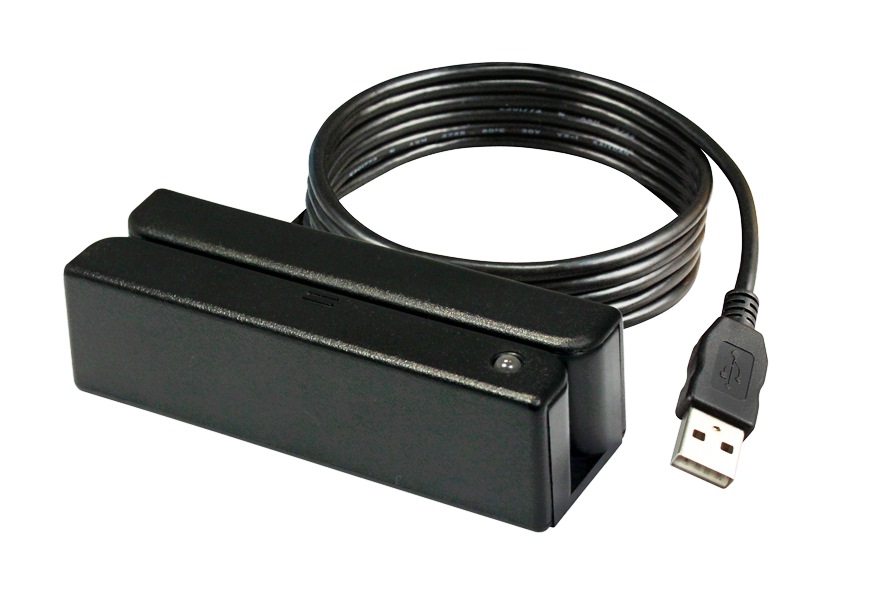

The UIC MSR213 is a USB Magnetic Stripe Card reader which is ideal for Retail, Time Keeping, Security and other card reading applications. It is a 3 Track Reader, so can read all tracks on Magnetic Stripe cards, including Loyalty Cards, Drivers Licenses, Medicare & Health fund cards
Product Overview
It features a USB-HID Keyboard connection, for plug and play installation and sends swiped data by "keyboard input". It can read all 3 tracks of Magnetic Stripe cards, so suitable for any application where MSR card reading is required.
Features
- Read and convert magnetic stripe data to USB HID/USB keyboard interface
- Firmware downloadable
- Read magnetic stripe cards that conform to ISO 7811, AAMVA and custom data formats
- Manual swipe, bi-directional with USB interface output
- Read high and low coercivity magnetic stripes (300- 4000 Oe)
- 15KV air ESD protection
- Reliable for over 1M swipes
- LED and beeper for reading status
Product Specifications
| Card Read Format | Track 1: Bit Density 210 bpi Track 2: Bit Density 75 bpi Track 3: Bit Density 210 bp |
| Card Types | Magnetic cards as per ISO7810, 7811, AAMVA |
| Read Capability | Magnetic stripe - dual or triple track of low/high coercivity (300-4000 Oe) |
| Card Thickness | 0.76 +/- 0.08mm |
| Error Rate | <0.5% |
| Magnetic Head Life | 1 Million Swipes |
| Card handling Method | Manual Swipe, Bi-Directional |
| Power Requirement | +5VDC +/- 10% from USB port |
| Interface | USB HID |
| Body Material | ABS 94V-0 |
| Dimensions | 100mm (L) x 34mm (W) x 128mm (H) |
| Weight Approx | 120g |
| Connector | USB Type A Plug |
| Warranty | 12 Months Return to Base |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 9000006215-R | Element MSR213 Magnetic Stripe Reader, USB-HID interface, Black | $144.38 | Add to Cart |
