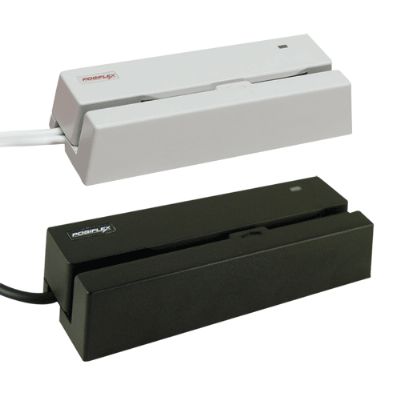

Posiflex MR-2000
POSMarket SKU: Z2126
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
MR Series Magnetic Stripe Card Reader.
Product Overview
TMSR Series is another small footprint version of MSR Series. It is built on a contemporary-designed 96mm-long housing. TMSR Series supports all the functionalities as that of MSR Series and is software configurable. The easy-to-use Windows utility further enhances the configurability of TMSR Series as compared with the dip switches implementation by MSR Series.
Fatures
- Magnetic Stripe Card Reader
- Heavy duty Die Cast Housing
- Bi-Directional Swipe (Single Head)
- 3-Track support
- Support ISO 7811 magnetic card
- Built in Interface, choice of KBW, RS232 or USB (HID/VCOM Selectable)
- Cable for interface included
- Built in decoder
Product Specifications
| READING PERFORMANCE | |
| Reader Type | Magnetic Swipe Card Reader ISO Single head |
| Card Feed Method | Manual Feed Bi-Directional |
| Read/Write Function | Read only |
| Card Type | Compatible card types: ISO7811 Can Also read AAMVA & CA DMV card (special order: JIS X 6302) |
| Card Feed Speed | 5 to 55 inches/sec |
| Card Data Format | Track 1: IATA Track 2: ABA Track 3: THRIFT |
| Transmission Speed | Reader<==>System: max. 12Mbits/sec |
| Programming Method | dipswitches |
| Indicators/Controls | Dual LED Status Display |
| CONNECTIVITY | |
| Communication Type | Cabled, Bi-directional Communication |
| Interfaces | USB - Ver. 2.0 RS-232 Special Order KBW |
| POWER | |
| Supply Voltage | 5 V 5 % |
| Power Consumption | Typical. 100 mA |
| USER ENVIRONMENT | |
| Operating Environment | 0 to 50 C RH 5 - 90 % (non-condensing) |
| Storage Environment | -20 to 65 C RH 5 - 90 % (non-condensing) |
| PHYSICAL CHARACTERISTICS | |
| External Dimensions (WxDxH) | 46 x 145 x 34 mm |
| Weight | approx. 490 g (excl. cable) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

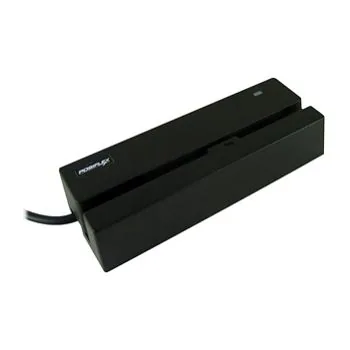

| MR*2106UR3BGV | MR-2100 3 Track MSR, Serial (RS232) interface. Does not include Power supply (add separately if required) | $171.88 | Add to Cart | |
| MR*2106UU3BGD | MR-2100 3 Track MSR, USB interface | $171.88 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Posiflex AD5VR10P2.5 | Plug Pack for Posiflex MR-2000 MR-2100 | $29.54 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
2021 POS Peripherals Solution Guide | 10MB | Download |
|
Posiflex MR-2000 Brochure | 639KB | Download |
|
Posiflex MR-21002200 Series User Manual | 105KB | Download |
