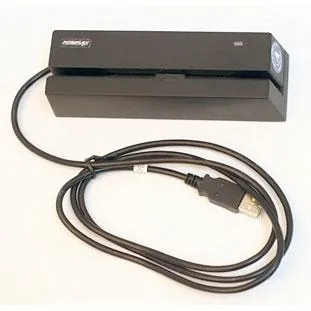

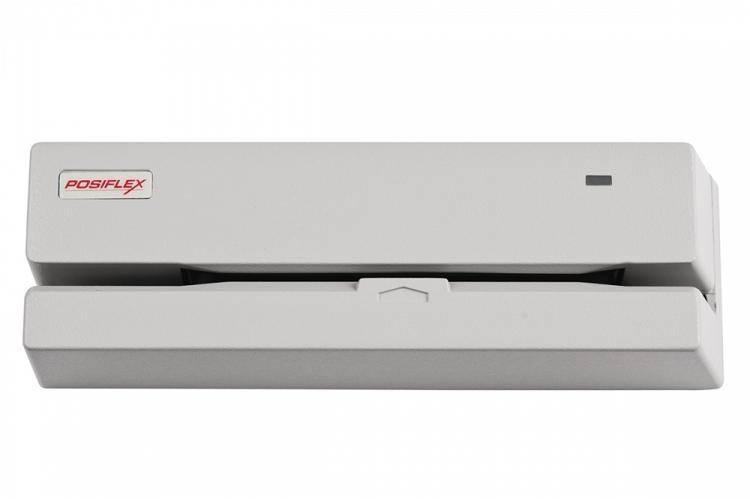

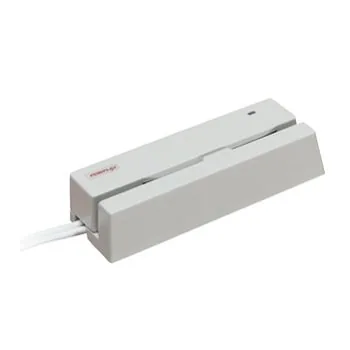

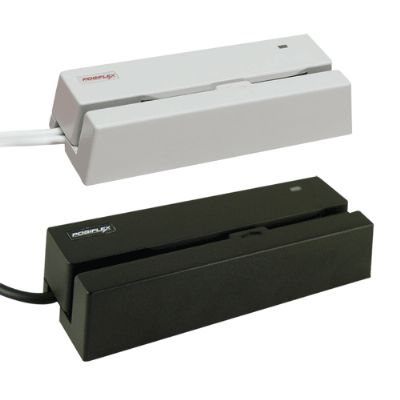

Posiflex MR-2200
POSMarket SKU: Z2127
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The Posiflex MR-2200 Series Magnetic Stripe Card Reader are heavy duty die-cast units designed to be used in stand alone desk environments. It is a dual-direction, dual head 3-track reader. It has a built in decoder and can be purchased with either a RS232 or USB interface.
Product Overview
- Magnetic Stripe Card Reader
- Heavy duty Die Cast Housing
- Bi-Directional Swipe (Dual Head)
- 3-Track support
- Support ISO 7811 magnetic card
- Built in Interface, choice of KBW, RS232 or USB (HID/VCOM Selectable)
- Cable for interface included
- Built in decoder
Product Specifications
| Reader Type | Magnetic Swipe Card Reader ISO Dual head |
| Card Feed Method | Manual Feed Bi-Directional, readers on both sides |
| Read/Write Function | Read only |
| Card Type | Compatible card types: ISO7811 Can Also read AAMVA & CA DMV card |
| Card Feed Speed | 5 to 55 inches/sec |
| Card Data Format | Track 1: IATA Track 2: ABA Track 3: THRIFT |
| Chipcard Protocol | N/A |
| Transmission Speed | Reader<==>System: max. 12Mbits/sec |
| Software Interface | N/A |
| Programming Method | dipswitches |
| Indicators/Controls | Dual LED Status Display |
| Communication Type | Cabled, Bi-directional Communication |
| Interfaces | USB - Ver. 2.0 RS-232 Special Order KBW |
| Supply Voltage | 5 V 5 % |
| Power Consumption | Typical. 100 mA |
| Operating Environment | 0 to 50 °C RH 5 - 90 % (non-condensing) |
| Storage Environment | -20 to 65 °C RH 5 - 90 % (non-condensing) |
| External Dimensions (WxDxH) | 46 x 145 x 34 mm |
| Weight | approx. 495 g (excl. cable) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| MR-2200R-3-B | MR-2200 Dual Head 3 Track MSR, Serial (RS232) interface with USB Power stealer | $176.34 | Add to Cart | |
| MR-2200U-3-B | MR-2200 Dual Head 3 Track MSR, USB interface | $163.28 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
ume User manual | 105KB | Download |
