POSMarket SKU: Z15241
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
DS-6900UDI Series Decoders support resolutions of up to 4K (3,840 x 2,160 @ 30 Hz) via HDMI output interfaces.
| DS-6900UDI Series | |
| Decorder | |
| VGA And Dvi-I Input | WSXGA:1690×1050/60Hz WXGA:1440×900/60Hz WXGA:1280×800/60Hz,1366×768/60Hz 1080P:1920×1080@50/60Hz UXGA:1600×1200@60Hz XVGA:1280×960@60Hz 720p:1280×720@50Hz/60Hz SXGA:1280×1024@60Hz XGA:1024×768@60Hz |
| BNC Output | 8-ch,2 DB 15 |
| HDMI Output | 4K:3840×2160@30Hz(for odd interface only) 1080p:1920×1080@50/60Hz WSXGA:1680×1050/60Hz UXGA:1600×1200@60Hz(for odd interface only) 720p:1280×720@50Hz/60Hz SXGA:1280×1024@60Hz XGA:1024×768@60Hz |
| Decoding Resolution | Up to 12MP |
| Decoding Channel | 128-ch |
| Decoding Capability | 12MP@20fps:16-ch 8MP@30fps:32-ch 5MP@30fps:48-ch 3MP@30fps:80-ch 1080p@30fps/3Mbps:128-ch |
| Split Screen | 1/4/6/8/9/12/25/36 |
| Network Interface | 2,10/100/1000 Mbps self-adaptive management network interface 2,10/100/1000 Mbps self-adaptive Ethernet interface 16,10M/100 Mbps self-adaptive Ethernet interface |
| Two-Way Audio In | 1-ch,3.5 mm connector(2.0 Vp-p,1kΩ) |
| Serial Interface | 1 RS-232(RJ45),1 RS-485 |
| Power Consumption | ≤ 108W |
| Dimensions(W*D*H) | 440×311×80 mm (17.32×12.24×3.15 inch) |
| Two-Way Audio Out | 1-ch,3.5 mm connector(2.0 Vp-p,1kΩ) |
| Audio Output | 16-ch,2 DB 15 |
| Alarm Out | 8-ch |
| Alarm Input | 8 |
| Power Supply | 100 to 240 VAC |
| Working Temperature | -10°C to +55°C（14°F to 131°F） |
| Working Humidity | 10% to 90% ≤ 6.4 kg（14.11 lb） |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-6908UDI | 8 Channel Output 4K Decoder, 8x 12MP, 16x 8MP, 24x 5MP, 40x 3MP | $3,851.93 | Add to Cart | |
| 6904UDI | 4 Channel Output 4K Decoder, 4x 12MP, 8x 8MP, 12x 5MP, 20x 3MP, 32x 2MP | $2,524.64 | Add to Cart | |

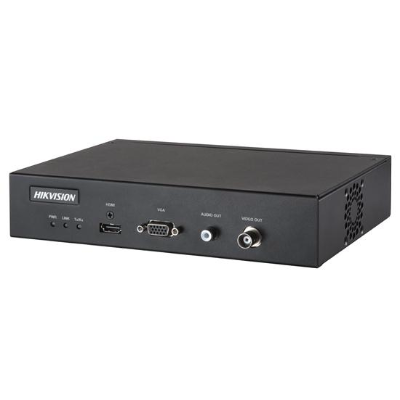

| DS-6901UDI | 1 Channel Output 4K Decoder, 2x 12MP, 4x 8MP, 6x 5MP, 10x 3MP, 16x 2MP | $1,194.46 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
DS69xxUDI Datasheet.pdf | 306KB | Download |
|
DS69xxUDI User Manual.pdf | 3MB | Download |
