POSMarket SKU: Z15243

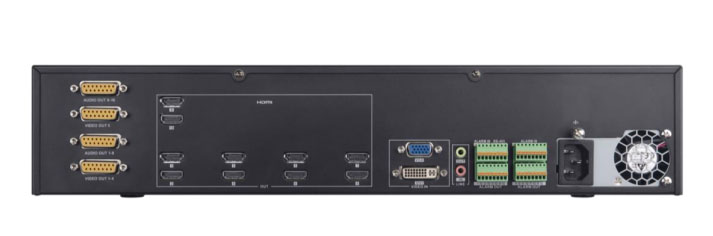

10 Channel, 4K decoder
| Model DS-6910UDI | |
| Decoding | |
| Decoding Resolution | Up to 12MP |
| Decoding Channel | 80-ch |
| Decoding Capability | 24MP@30fps: 5-ch, 12MP@20fps: 10-ch, 8MP@30fps: 20-ch, 5MP@30fps: 30-ch, 3MP@30fps: 50-ch 1080p@30fps: 80-ch |
| Split Screen | 1/4/6/8/9/12/16/25/36 |
| Input/Output | |
| Input | VGA, DVI-I |
| Input Resolution | VGA, DVI-I: WSXGA: 1680×1050/60Hz, WXGA: 1440 × 900/60Hz, WXGA: 1280×800/60Hz, 1366×768/60Hz,1080p: 1920 × 1080@50/60Hz, UXGA: 1600 × 1200@60Hz, XVGA: 1280 × 960@60Hz, 720p: 1280 × 720@50Hz/60Hz, SXGA: 1280 × 1024@60Hz, XGA: 1024 × 768@60Hz Output HDMI: 10-ch, BNC: 5-ch, 2 DB 15 |
| Output Resolution | HDMI: 4K: 3840 × 2160@30Hz ( for odd interface only) 1080p: 1920 × 1080@50/60Hz WSXGA: 1680×1050/60Hz UXGA: 1600 × 1200@60Hz (for odd interface only) 720p: 1280 × 720@50Hz/60Hz SXGA: 1280 × 1024@60Hz XGA: 1024 × 768@60Hz |
| Interface | |
| Network Interface | 2 10/100/1000 Mbps Ethernet interface |
| Serial Interface | 1 RS-232 (RJ45), 1 RS-485 |
| Audio Output | 10-ch, 2 DB 15 |
| Two-way Audio In | 1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ) |
| Two-way Audio Out | 1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ) |
| Alarm In | 8 |
| Alarm Out | 8 |
| General | |
| Power Supply | 100 to 240 VAC |
| Power Consumption | ≤ 108 W |
| Dimensions(W × D × H) | 440 × 311 × 80 mm (17.32 × 12.24 × 3.15 inch) |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Weight | ≤ 6.4 kg (14.11 lb) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DS-6910UDI | 10 Ch Output 4K Decoder, 10x 12MP, 20x 8MP, 30x 5MP, 50x 3MP, 80x 2MP | $4,708.55 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
DS6910UDI Data Sheet.pdf | 884KB | Download |
|
DS69xxUDI User Manual.pdf | 3MB | Download |
