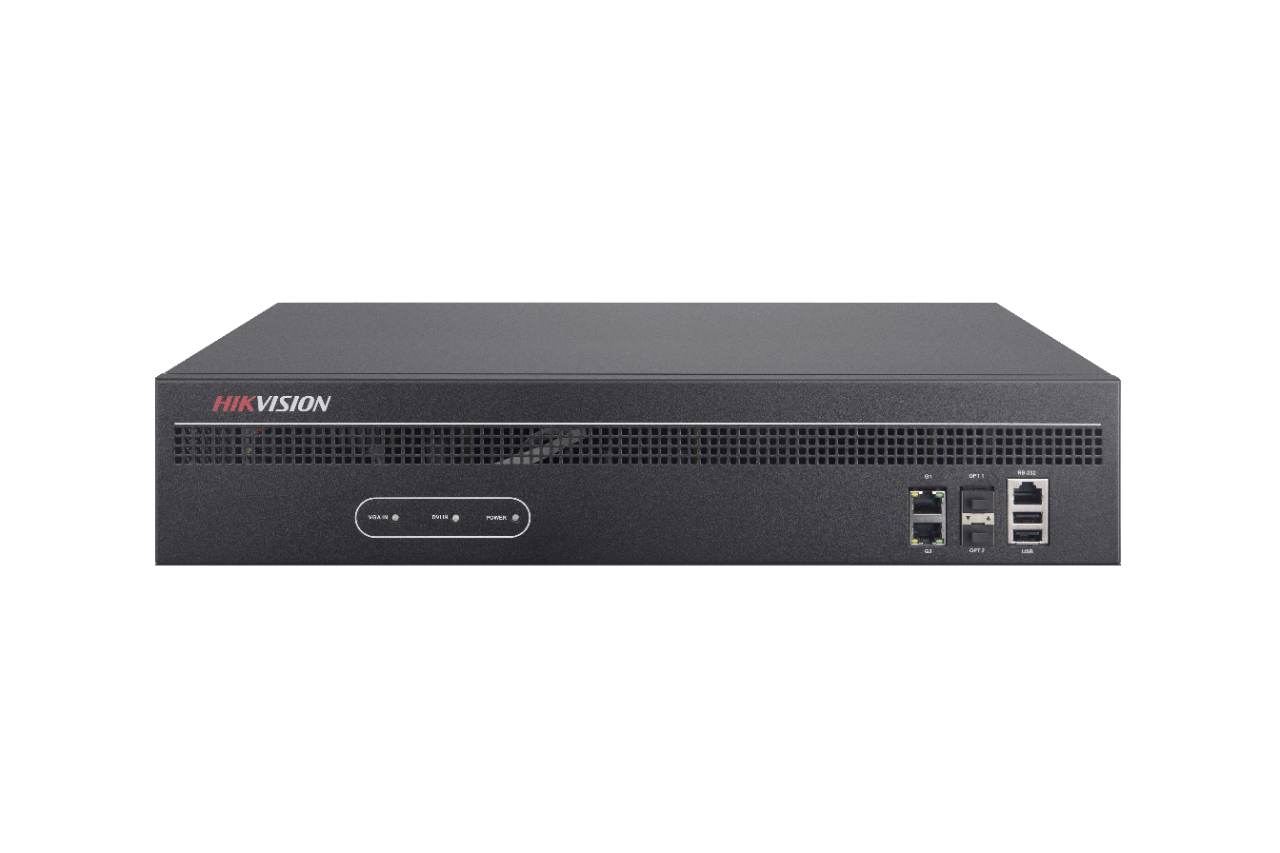

Hikvision DS-6916UDI

from $5,069.49 (incl. GST)

POSMarket SKU: Z15245

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

16 Channel Output 4K Decoder

Product Rating
Product Overview
Designed for the high-definition video monitoring system, The Hikvision HIK-6916UDI Decoder is developed on the basis of embedded hardware platform, ensuring high reliability and stability of system running. The HIK-6916UDI Decoder is capable of 16ch@12MP, 32ch@8MP, 48 ch@5MP, 80ch@3MP and 128ch@2MP simultaneous decoding, and outputting decoded video via BNC, VGA, or HDMI interfaces, and it also supports multiple video stream formats like H.265, H.264+, H.264 and MPEG4. The decoded video can be displayed on a video wall or large screen.

FEATURES
  • HDMI, VGA, and BNC output interfaces
  • Up to 4K (3840 x 2160@30Hz) via HDMI output interfaces (only for even interface)
  • Up to 16ch@12MP, 32ch@8MP, 48 ch@5MP, 80ch@3MP or 128ch@2MP
  • H.265+/H.265, H.264+/H.264, MPEG4 and MJPEG video compression
  • Supports multi-screen control with PC installed with RSC server
  • Flexible display configuration options
Product Specifications
DS-6916UD
Input/Output
Input VGA, DVI-I
Input Resolution VGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
Output HDMI × 16, BNC × 8 (DB15 × 2)
Output Resolution HDMI:
4K: 3840× 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz<br>
BNC:
PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Resolution Up to 24MP (only for 3 encoder tracks mode)
Decoding Channel 128-ch
Decoding Capability 24MP@30fps: 8-ch, 12MP@20fps:16-ch, 8MP@30fps: 32-ch, 5MP@30fps: 48-ch, 3MP@30fps: 80-ch, 1080p@30fps/3 Mbps: 128-ch
Split Screen 1/4/6/8/9/12/16/25/36
Interface
Network Interface RJ45 interface × 2, 10/100/1000 Mbps adaptive
Optic interface × 2, 100 base-FX/1000 base-X
An RJ45 interface and an optic interface form a combo.
Serial Interface RS-232 (RJ45) × 1, RS-485 × 1
Audio Output 16 (DB15 × 2)
Two-Way Audio Out 1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Alarm In 8
Two-Way Audio In 1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Alarm Out 8
General
Power Supply 100 to 240 VAC
Power Consumption ≤ 108 W
Dimensions(W × D × H) 440 mm× 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
≤ 6.4 kg (14.11 lb)
ModelDescriptionPriceStock
DS-6916UDI 16 Channel Output 4K Decoder, 16x 12MP, 32x 8MP, 48x 5MP, 80x 3MP, 128x 2MP $6,164.81
Call
 Add to Cart
DS-6912UDI 12 Ch Output 4K Decoder, 12x 12MP, 24x 8MP, 36x 5MP, 60x 3MP, 96x 2MP $5,069.49
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DS6916UDI Data Sheet.pdf 887KB Download
PDF Document DS69xxUDI User Manual.pdf 3MB Download
PDF Document DS6912UDI Data Sheet.pdf 921KB Download
