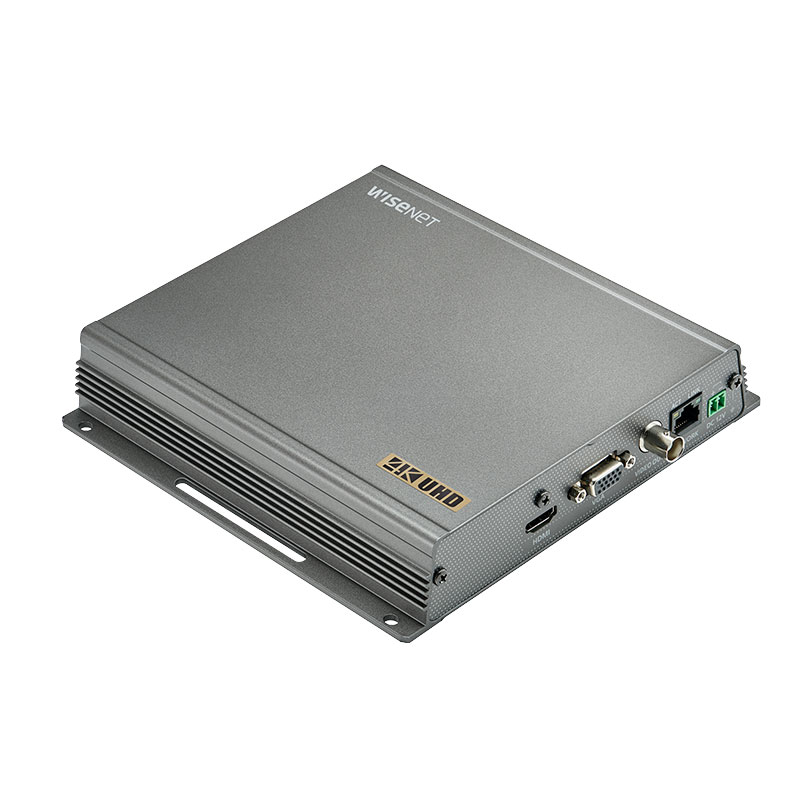

Hanwha SPD-150

$993.30 (incl. GST)

POSMarket SKU: Z15596

SPD-150: Wisenet Decoder 48ch, 120fps at 8MP, HDMI, VGA, BNC, PoE, 12VDC

48Channel Network Video Decoder

Product Rating
Product Overview
The Hanwha SPD-150 is Decoder, 49CH on 3 different monitors: HDMI 32 channel max, VGA 16 channel max, BNC 1 channel, H.265, H.264, MJPEG, Onvif support, decode up to 12MP, configurable through the attached monitor only no web based configuration, PoE or 12VDC.

FEATURES
  • Various view mode
  • H.265, H.264, MJPEG codec support
  • Video decoding up to 48 cameras on HDMI / VGA
  • 1 camera decoding on BNC
  • Clone & Expand mode support (HDMI, VGA)
  • Maximum 4K resolution@HDMI, 1080p@VGA
  • Decode @12MP, 8MP, 5MP, 3MP, 1080p, 720p, 4CIF
  • H.265, H.264, MJPEG codec support
  • Various view mode, Hallway View
  • (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 (32) / 2V / 3V
  • (VGA) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V
  • Up to 20 layouts and sequence
  • Management using local UI & USB mouse
  • Configuration export / import. Upgrade using USB
Product Specifications
SPD-150
General
Device Type Video decoder
Video Channels 48
TV System PAL
Image Resolution 704x576 (PAL)
Compression Format MJPEG, G.711, G.726, H.264, AAC, H.265
OS Provided Linux
Compliant Standards IEEE 802.3af
Color Dark gray
Networking
Network Interfaces Ethernet 10Base-T/100Base-TX/1000Base-T
Features Hallway view
Connections
Video Output Ports HDMI x 1, BNC x 1, VGA x 1
Network Port 10/100/1000Base-T
Other Ports USB 2.0 x 2
Power
Voltage 12 V / PoE
Power Consumption 8.4 Watt
Dimensions & Weight
Width 7 in
Depth 7.4 in
Height 1.3 in
Weight 23.98 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 85%
ModelDescriptionPriceStock
SPD-150 Wisenet Decoder 48ch, 120fps at 8MP, HDMI, VGA, BNC, PoE, 12VDC $993.30
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document SPD150 Installation Guide.pdf 17MB Download
PDF Document SPD150 User Manual.pdf 18MB Download
PDF Document SPD150 Datasheet.pdf 296KB Download
