Hanwha SPD-151

POSMarket SKU: Z15594

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

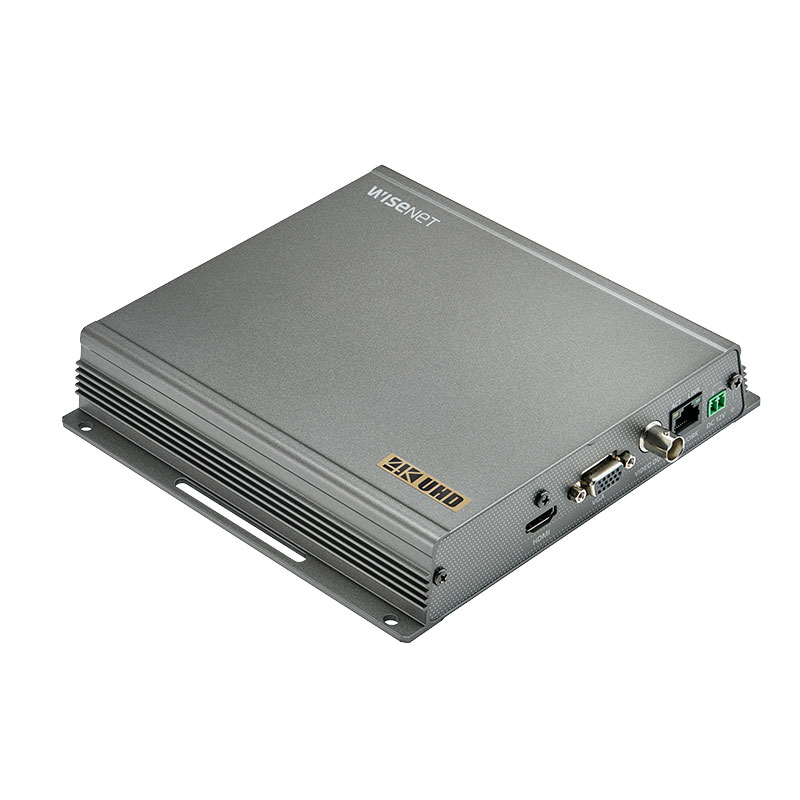

49-Channel Network Video Decoder

Product Rating

Product Overview

You can now implement video decoding into your home or business surveillance system with the SPD-151 49-Channel Network Video Decoder from Hanwha Techwin. This unit provides video decoding at up to 12MP resolution for up to 48 cameras via HDMI/VGA, along with video decoding for a single camera via BNC, for a maximum video decoding total of 49 cameras. The HDMI port delivers video output up to 4K UHD. Interfaces on the unit include a Gigabit Ethernet port, an audio output, and two USB 2.0 ports.

FEATURES
  • Video decoding up to 48 cameras on HDMI / VGA
  • 1 camera decoding on BNC
  • Clone & Expand mode support (HDMI, VGA)
  • Maximum 4K resolution@HDMI, 1080p@VGA
  • Tile merge function
  • Decode @12MP, 8MP, 5MP, 3MP, 1080p, 720p, 4CIF
  • H.265, H.264, MJPEG codec support
  • Various view mode, Hallway View
  • (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 (32) / 2V / 3V
  • (VGA) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V
  • Up to 20 layouts and sequence
  • Management using web interface

Product Specifications

SPD-151
IP Encoding/Decoding
IP Video H.264/H.265/MJPEG:
4000 x 3000 (200 Mb/s) Decoding
IP Audio AAC-LC/G.711/G.726: Decoding

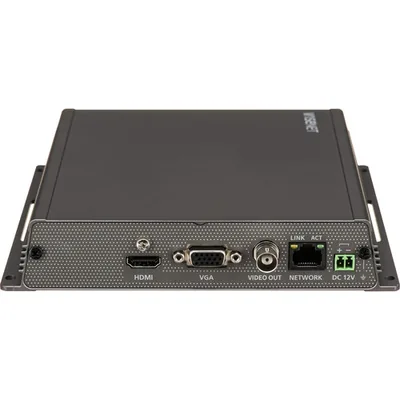

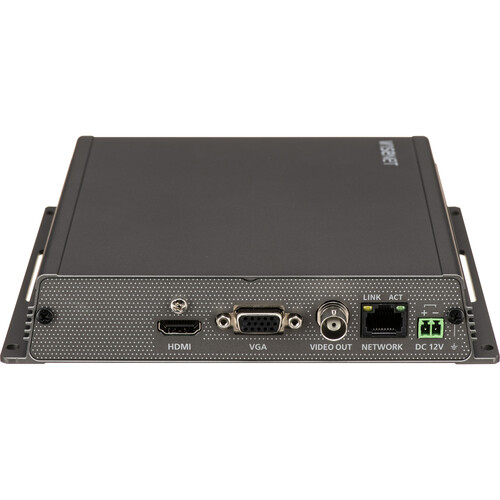

Interfaces
Video Connectors 1 x HDMI
1 x DE-15/DB-15 (VGA)
1 x BNC
Audio Connectors 1 x 1/8" / 3.5 mm TS
Other I/O 2 x USB Type-A USB 2.0
PoE Support PoE 802.3af
Power
Power Connector 1 x RJ45 Input
1 x Barrel Input
Power Consumption Device: (8.4 W)
Power Supply: 12 VDC (8.4 W)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 85%
General
Materials Metal
Dimensions 7.4 x 7 x 1.3" / 187.8 x 178 x 34 mm
Weight 1.5 lb / 0.7 kg
ModelDescriptionPriceStock
SPD-151 Wisenet Decoder, 48ch, 30fps at 8MP, HDMI, VGA, BNC, PoE, 12VDC $749.79
Call
 Add to Cart

Product Accessories

Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document SPD-151 Data Sheet 356KB Download
PDF Document SPD-151 Quick Guide 4MB Download
PDF Document SPD-151 User Manual 7MB Download
