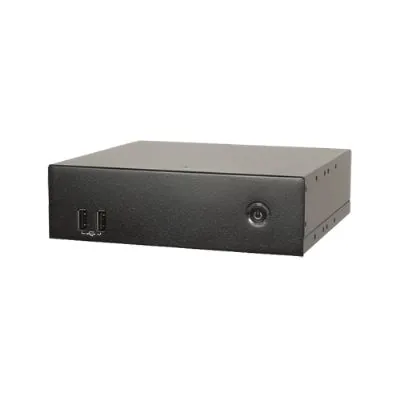

AOPEN DE-6140

from $1,753.13 (incl. GST)

POSMarket SKU: Z2018

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

The DE6140 takes computing power to a whole new level. This small and powerful system enables multi-display capabilities, for up to four Full HD screens. Whether powering a 2x2 or 4x1 video wall, or powering several screens on different locations, the DE6140 is the ideal machine for multiscreen purposes.

Product Rating
Product Overview
  • Digital Media Engine
  • Support AMD Embedded R-series APU Dual/Quad core mobile processor
  • Supports AMD Eyefinity Technology which supports 3 Independent Displays
  • 320GB HDD
  • 4 GB DDR3 RAM expandable to 16GB
  • 4 x HDMI Port for 2x2, 4x1 Video wall output
  • 1 x RS232 Port
  • eSATA for expansion options
  • Optional SSD drives available
Product Specifications
CPUSocket: Socket FS1r2
Type: Support AMD Embedded R-series APU Dual/Quad core mobile processor TDP<35W
AOpen Thermal Module
Chipset: FCH AMD A70M chipset
Graphics Chipset: AMD Radeon HD 7660G(build in APU R-464L)
MemoryDual Channel
Type: DDRIII SO-DIMM x 2
Speed Grade: 1333/1600Mbps
Standard 4GB, Max memory 16G (based on OS support)
Storage device(s)2.5" SATA II 320GB HDD
SDD optional
Expansion Slot
mini Card Slot: Full size x1 (support mSATA)
I/O PortsFront Panel IO
USB 2.0 Port x 2
Rear Panel IO
DC Jack x 1
DVI Port N/A
VGA Port N/A
HDMI Port x 4
Display Port N/A
USB 2.0 Port x 4 (2 ports combine with eSATA)
USB 3.0 Port N/A
eSATA port x 2
RJ-45 LAN Jack x 1 (10/100/100Mbps)
Legacy RS232 Serial Port (COM Port) : x 1
Audio Set Line-In : N/A
Audio Set Line-Out : x 1
Audio Set Mic-In : x 1
Upgrade for Antenna Port : x 2
Kensington Lock Hole : x 1
AudioRealtek HD Audio Codec ALC662 Channel: Stereo
Operating Environment0 ~ +50 C
95% RH non condensing @ 50 C
Storage Environment-30 ~ +60 C
95% RH non Condensing @ 50 C
Power Supply19V DC Power Adapter (90W) 4.74A
AC 100V-240V
External Dimensions (WxDxH)166mm x 157mm x 48mm
Weight1.12 Kg
EMC/Safety StandardsFCC/CE/UL/CB
ModelDescriptionPriceStock
91.DE800.G4A0 AMD R464L CPU, 4GB RAM, 320GB HDD, Windows 7 Pro Embedded Operating System $2,083.13
Call
 Add to Cart
91.DE800.G4B0 AMD R464L CPU, 4GB RAM, 320GB HDD, No operating system $1,753.13
Call
 Add to Cart
ModelDescriptionPrices From
AOPEN HDMI Splitter 4-Way HDMI Splitter $443.85 View Product
AOPEN Aopen HDMI Cable 1.5m HDMI Cable $49.50 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document de6140 datasheet 73KB Download
