POSMarket SKU: Z7543

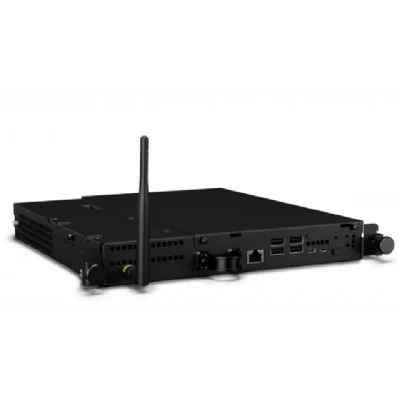

The Android ECM AECM featuring the powerful Qualcomm Snapdragon APQ8064 CPU provides the performance needed to manage demanding media-rich interactive software applications while enabling omni-channel consistency when coupled with EloView. Together they allow customers to securely leverage existing online and mobile digital content with minimal investment and development time.
Part Number(s) | Elo IDS Android Computer Module for IDS 01 Series - Elo P/N: E000739 Elo IDS Android Computer Module for IDS 02 Series - Elo P/N: E336899 |
Enclosure Color | Black |
Processor | Qualcomm APQ8064 |
Memory (RAM) | 2GB RAM |
Storage | 16GB EMMC Flash |
Max/Slot | SD slot inside box |
Cooling system | Fanless Technology |
Control Buttons | Power LED, Home button |
Interface | 1x HDMI (OPS slot) |
Wireless | IEEE 802.11b/g/n WEP/WPA/WPA2 capable |
Bluetooth | Bluetooth 4.0+EDR |
USB Ports | 4x USB 2.0 on front panel 1x USB On-The-Go (micro USB) |
Ethernet Port | 1x Giga bit Ethernet |
GPIO | 2x input (TTL), 1x output (TTL) Details available in User Guide |
OS | Android 4.4.2 |
Power Supply | +19V power supplied via Elo Interactive Digital Signage monitor |
Power Consumption (Typical) | ON: 28.5 W IDLE: 5 W |
Dimensions | 252.7mm x 36.1mm x 272.85mm |
Shipping Box Dimensions | 386mm x 357mm x 112mm |
Weight (Unpackaged) | 1.46 kg |
Weight (Packaged) | 2.24 kg |
Operating Temperature | 0C to 40C / 32F to 104F |
Storage Temperature | -20C to 60C / -4F to 140F |
Humidity | Operating: 20% to 80% Storage: 10% to 95% |
Real-Time Clock | lithium-ion battery |
MTBF | 30,000 hours demonstrated |
Regulatory approvals and declarations | UL, cUL, FCC, IC, RCM, CB, CE |
Warranty | 3-year |
Model | Description | Price | Stock | |
---|---|---|---|---|
E000739 | Elo IDS Android Computer Module for IDS 01-Series, Qualcomm Snapdragon APQ8064 CPU, 2GB RAM, 16GB flash 4x USB 2.0 ports, 1GB LAN, Wi-Fi 802.11 b/g/n, Bluetooth 4.0, Antenna Included | $1,354.38 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
ELO AECM DS | 483KB | Download |
![]() |
User Guide | 575KB | Download |
![]() |
Quick Installation Guide | 14MB | Download |
