Part Number | Infrared (Worldwide) - E268254 |
Enclosure Color | Black |
Touch Technology & Capacity | Infrared - 10 Touch |
Diagonal Size | 54.6" diagonal, Active matrix TFT LCD (LED) |
Active Area (mm) | 47.6" x 26.8" / 1209.6mm x 680.4mm |
Aspect Ratio | 16:9 |
Resolution | Full HD 1920 x 1080 |
Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
Number of Colors | 1073.7 million |
Brightness (typical) | LCD Panel: 500 nits IR: 450 |
Response Time-total (typical) | 6.5 msec |
I/O Ports | Input: AC power, RJ45 Remote Connector, VGA, HDMI, DisplayPort, USB type B, Audio Line In Output: Headphone Out |
Input Video Format | Analog VGA, HDCP-capable HDMI 1.3, Display port 1.1a. |
Input Video Signal Connector | Female DE-15 for Analog VGA HDMI Type A receptacle Display part 1.1a Connector. |
Input Video Frequency | Horizontal: 31.5 - 73 KHz Vertical: 47 - 63 Hz |
Audio Input Connector | 3.5 mm TRS jack |
Audio Input Signal Range | 1Vrms max stereo signal (standard PC line out) |
Headphone Output Connector | 3.5 mm TRS jack |
Speakers | Internal 4 x 5W stereo speakers |
Dimensions | 49.8" x 29" x 3.4" / 1267mm x 738mm x 87mm |
Weight | Monitor Only: 98.9 lbs / 44.85 kg Monitor with Computer Module: 103.2 lbs / 46.82 kg |
Operating Temperature | 0°C to 40°C / 32°F to 104°F |
Mounting Options | VESA 4-hole mount per MIS-F, 600, 600, 6mm |
Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
MTBF | 50,000 hours demonstrated |
Model | Description | Price | Stock | |
---|---|---|---|---|

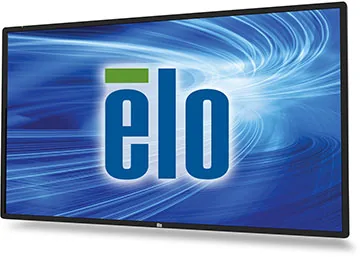

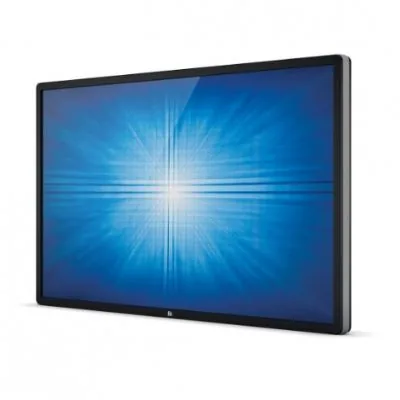

E268254 | 5501LT, 55"wide Interactive Display, IDS 01-Series, Infrared 10-touch, USB, Bezel, Gray | $CALL |
Model | Description | Prices From | |
---|---|---|---|
ELO AECM Android | The Android ECM AECM featuring the powerful Qualcomm Snapdragon APQ8064 CPU provides the performance needed to manage demanding media-rich interactive software applications while enabling omni-channel consistency when coupled with EloView. | $1,354.38 | View Product |
Filename | Size | ||
---|---|---|---|
Elo 5501LT Brochure | 273KB | Download | |
Elo 5501LT Manual | 847KB | Download |
