POSMarket SKU: Z18135

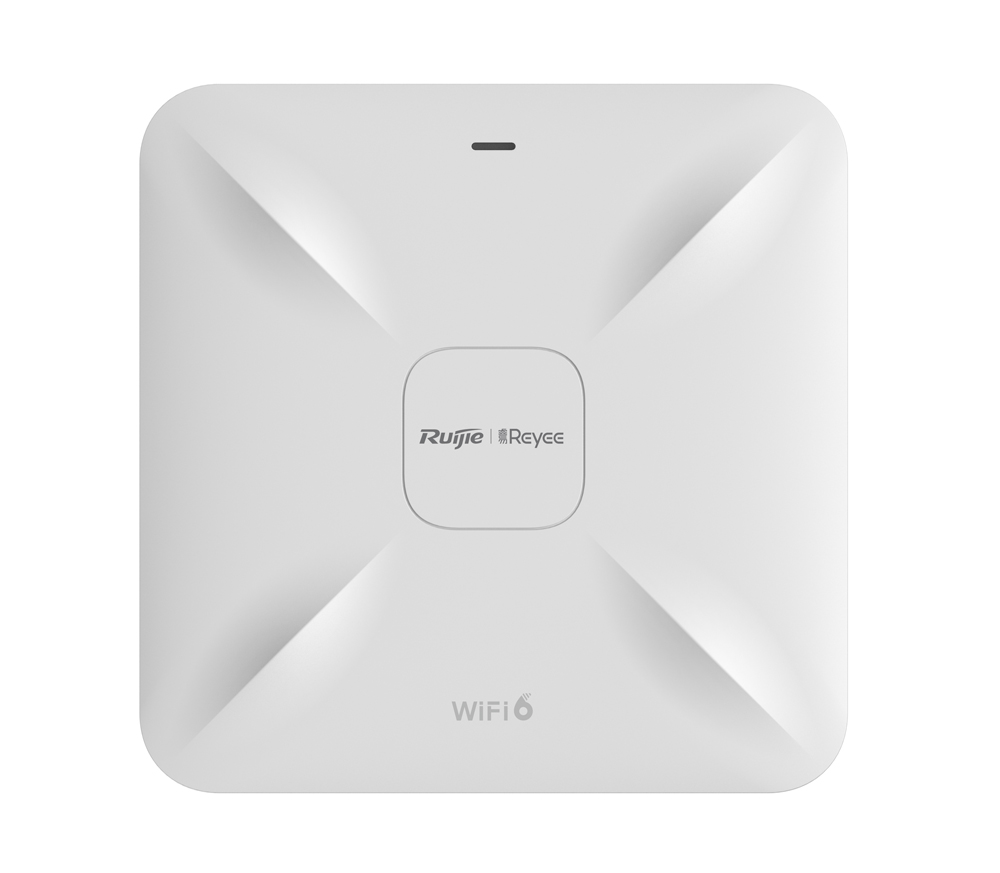

High-performance entry Wi-Fi 6 Dual Band Ceiling Mount Access Point
| RG-RAP2260(G) | ||
| Hardware Specifications | ||
| Radio | Dual-stream dual-band | |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n | |
| Operating Bands | 802.11b/g/n/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific) | |
| Antenna | Internal antennas(2.4G: 3dBi，5G: 3dBi) | |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO | |
| Max Throughput | Up to 574Mbps at 2.4G Up to 1201Mbps at 5G 1.775Gbp per AP | |
| Modulation | ||
| OFDM | BPSK@6/9Mbps，QPSK@12/18Mbps，16QAM@24Mbps，64QAM@48/54Mbps | |
| DSSS | DBPSK@1Mbps，DQPSK@2Mbps, and [email protected]/11Mbps | |
| MIMO-OFDM | BPSK，QPSK，16QAM ，64QAM，256QAM and1024QAM | |
| OFDMA | ||
| Receive Sensitivity | ||
| 11b | -96dBm(1Mbps)，-93dBm(5Mbps)，-89dBm(11Mbps) | |
| 11a/g | -91dBm(6Mbps)，-85dBm(24Mbps)，-80dBm(36Mbps)，-74dBm(54Mbps) | |
| 11n | -90dBm(MCS0)，-70dBm(MCS7)，-89dBm(MCS8)，-68dBm(MCS15) | |
| 11ac | 20MHz：-88dBm(MCS0), -63dBm(MCS9) 40MHz：-85dBm(MCS0), -60dBm(MCS9) 80MHz：-85dBm(MCS0), -60dBm(MCS9) | |
| Maximum output power of the transmitter (single stream) | 2.4GHz(2.4~2.4835GHz)：23dBm 5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm (country-specific，comply with local laws) | |
| Adjustable Power | 1dBm | |
| Dimensions | 194mm×194mm×35mm (excluding mounting kits) | |
| Weight | 0.56kg (excluding mounting kits) | |

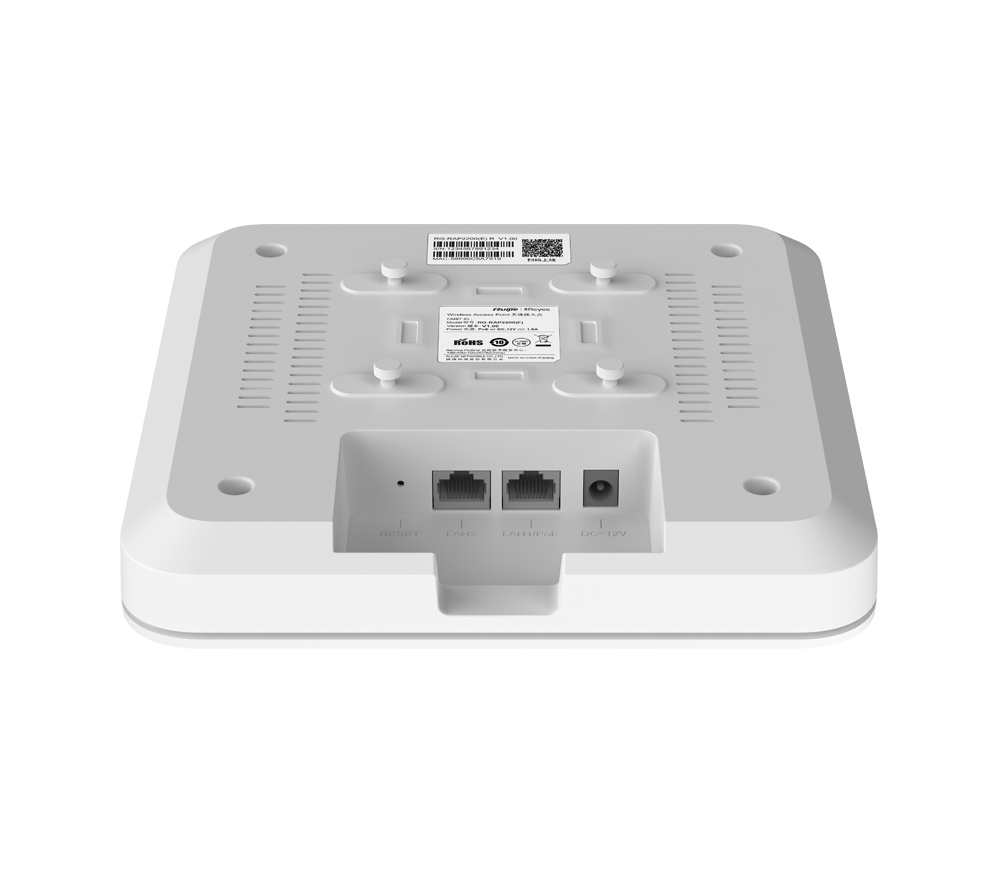

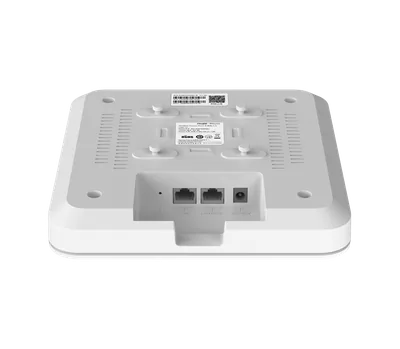

| Service Ports | 2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE | |
| Management Port | NA | |
| LED Indicator | Single indicator (green light) | |
| Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) | |
| Power Consumption | ≤ 15.3W | |
| Environment | ||
| Operating temperature | 0°C～40°C | |
| Storage temperature | -40°C～70°C | |
| Operating humidity | 5％～95％ (non-condensing) | |
| Storage humidity | 5％～95％ (non-condensing) | |
| Installation | Ceiling/wall-mountable | |
| Safety Standard | GB4943, IEC 62368-1 | |
| EMC Standard | GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 | |
| Vibration Standard | IEC61373 | |
| Radio Standard | EN300 328, EN301 893 | |
| MTBF | >400000H | |
| Software Features | ||
| Operating Mode | AP mode and routing mode | |
| WLAN | ||
| Maximum number of clients | 512 | |
| Recommended number of clients | 100 | |
| Up to 8 SSIDs | Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation | |
| Roaming | Support Layer 2 and Layer 3 roaming | |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption Support Black List / White List： Maximum 256 rules per SSID Maximum 1024 rules per AP | |
| Routing | Support static IP address, DHCP, PPPoE Dial Up | |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform | |
| Platform management features | Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform | |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| RAP-2260(G) | Wi-Fi 6 Indoor AP | $320.25 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Reyee RGRAP2260 Datasheet | 14MB | Download |
|
Reyee RGRAP2260G Installation and Reference Guide.pdf | 744KB | Download |
|
Reyee Series Access Points WebBased Configuration Guide | 2MB | Download |
Reyee RG-EST310
Networking > Wireless
Reyee RAP1200(F)
Networking > Wireless

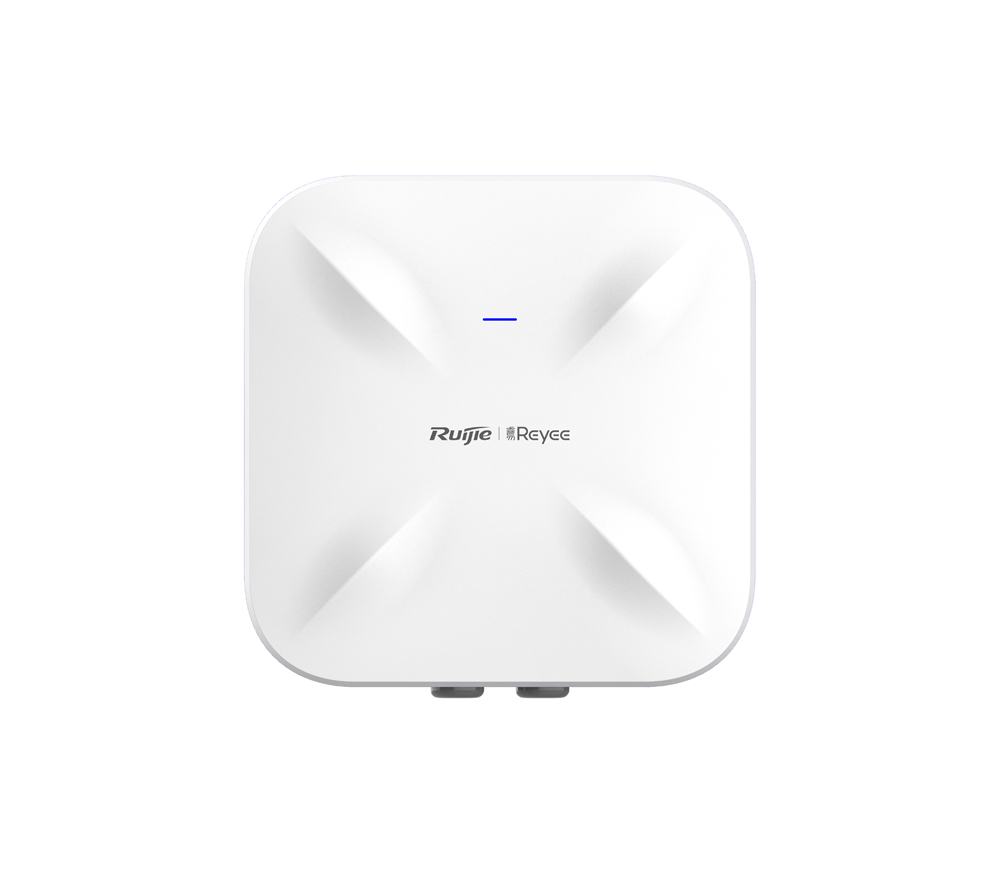

Reyee RG-RAP6260(G)
