POSMarket SKU: Z18133

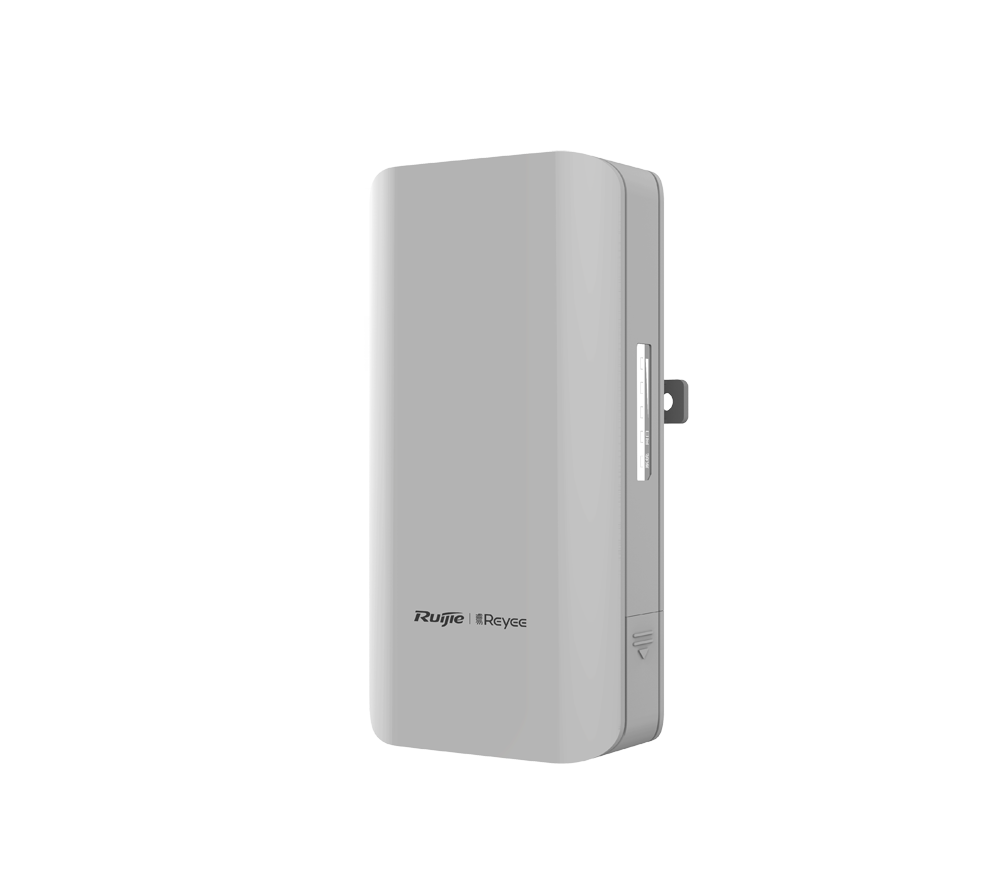

802.11ac outdoor wireless bridge for video surveillance backhaul or remote wireless transmission, operating at 5GHz, and provides up to 867Mbps throughput.
| RG-EST310 | |
| Hardware Specifications | |
| RAM/ Flash | 64MB/8MB |
| Radio | Dual-stream single-band 2x2 |
| Operating Band | 802.11a/n/ac：5.725～5.850GHz |
| Antenna | Built-in directional antennas, horizontal: 60°, vertical: 30°, gain: 10dBi |
| Spatial Streams | 2 |
| Maximum Throughput | Up to 867Mbps at 5GHz |
| Transmit Power | ≤250mW |
| Dimensions | 147mm(D)×76mm(W)×37mm(H) (Dimensions per device) (Same size for the transmitter and receiver, H: height of the device excluding the mounting kits) |
| Weight | 0.35kg |

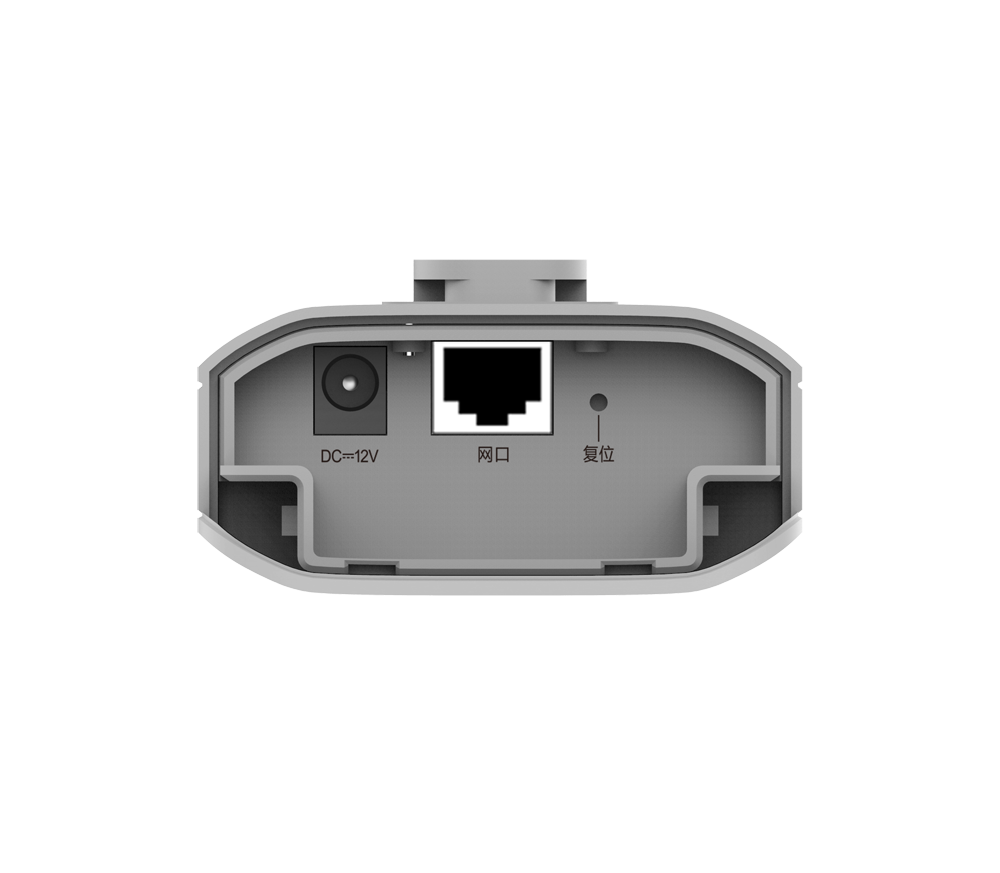

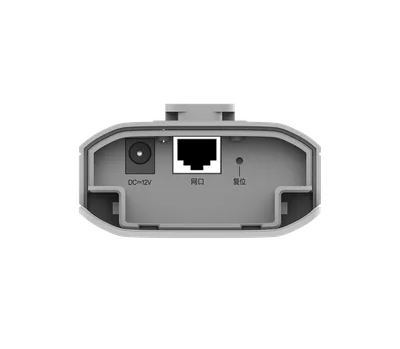

| Ports | 1 10/100Base-T Ethernet port, supports 24VDC passive PoE 1 DC port, supports 12VDC power supply |
| Hardware Button | 1 reset button |
| Status Indicators | System indicator: 1 Port indicator: 1 Bridge signal strength indicators: 3 |
| Power Supply | Support 12VDC power supply and 24VDC passive PoE |
| Power Consumption | ＜5W |
| Environment | |
| Operating temperature | -30°C～50°C |
| Storage temperature | -40°C～70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) |

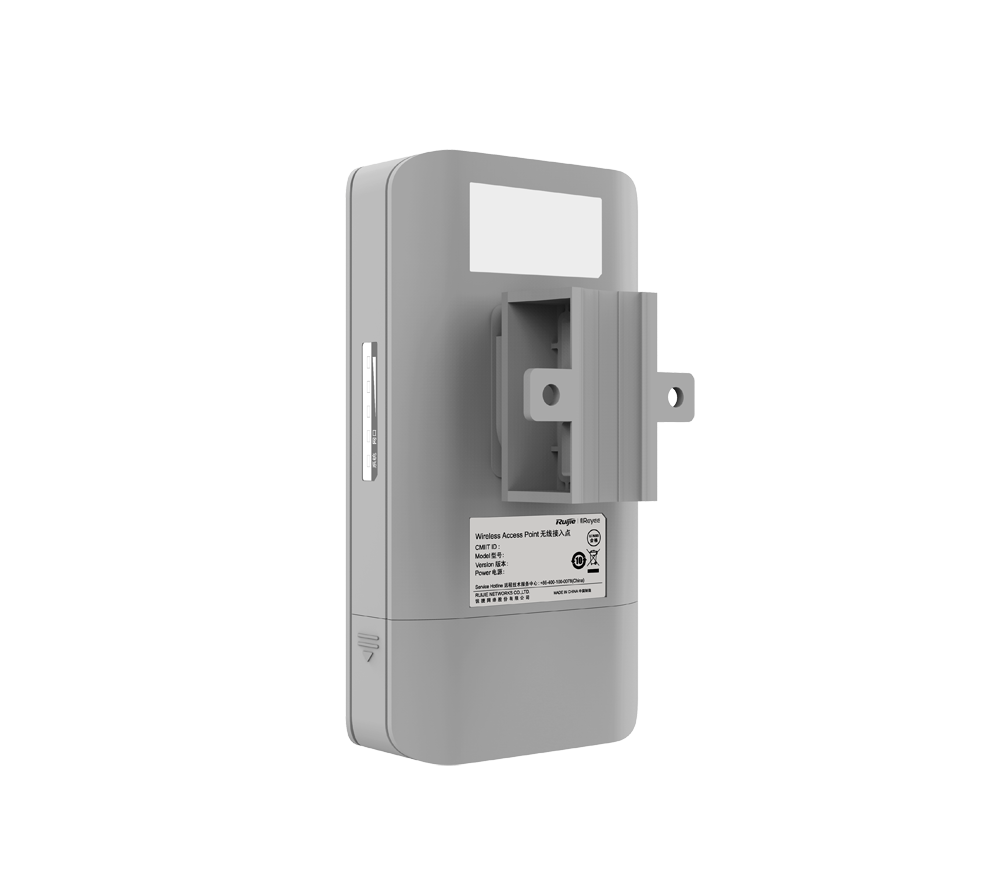

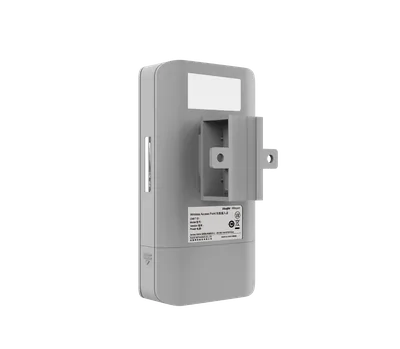

| Installation | Wall-mounted/ Pole-mounted (straps provided) |
| IP Rating | IP65 |
| Lightning Protection | 4KV |
| Radio Standard | SRRC certification |
| Warranty | 3 Years |
| Software Features | |
| Zero-Touch Configuration | Support Ruijie Cloud App remote configuration |

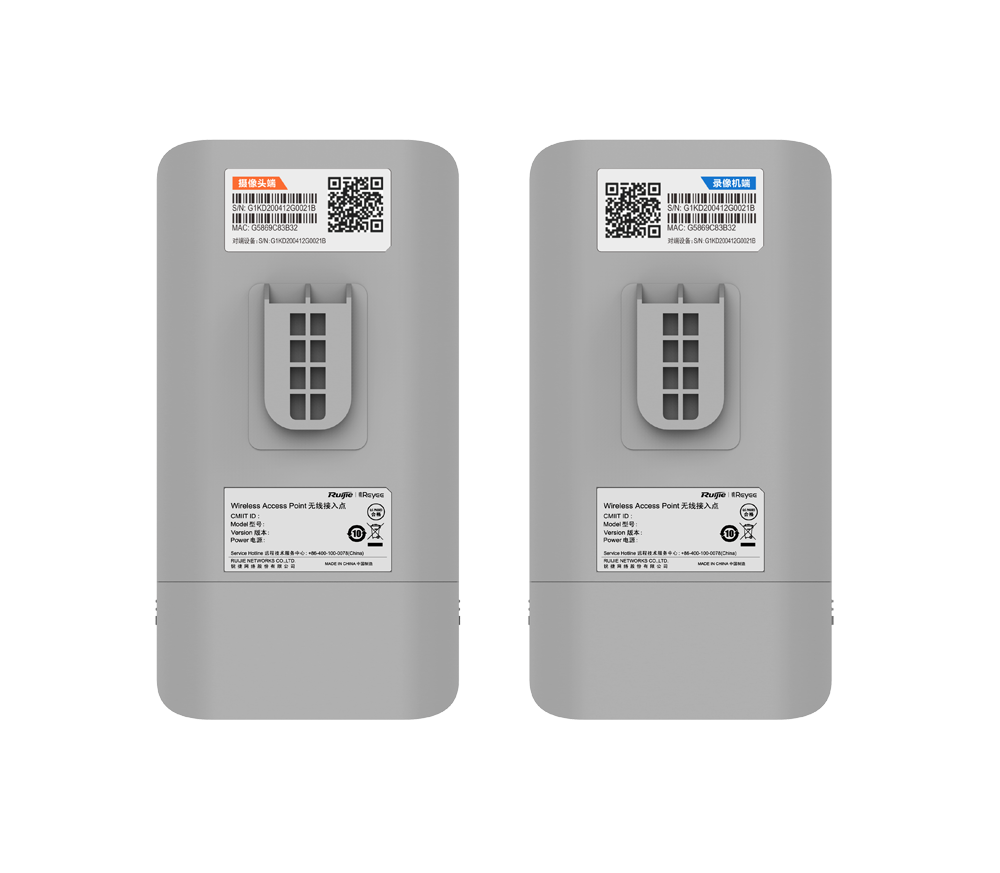

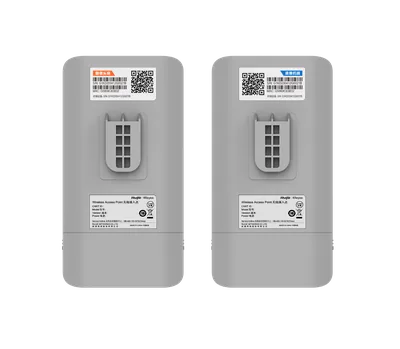

| Automatic Bridging | Support The recorder-end and camera-end are automatically paired for bridging by default |
| Device Configuration and Management | Support App/Web monitoring and management |
| QR Code Login | Users can log in to the device configuration interface by scanning the QR code of the device using the app |
| Self-healing | Automatic restart upon equipment failure |
| Automatic Channel Adjustment | Automatically adjust the channel upon power-on |
| Camera Support Reference: | |
| Antenna Polarization | 10dBi; H: 60°; V: 30° |
| Distance (Meters) | 100; 500; 1000; 2000 |
| RSSI (dBm) | -52; -65; -68; -75 |
| Negotiate speed (Mbps) | 400; 400; 240; 120 |
| Port Speed (Mbps) | 90; 80; 80; 40 |
| 3MP H.265 (Units) | 16; 16; 16; 6 |
| 4-5MP H.265 (Units) | 10; 10; 10; 4 |
| 6-7MP H.265 (Units) | 7; 7; 7; 3 |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| RG-EST310 | Outdoor Wireless Bridge | $213.13 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Ruijie RGEST310 V2 Wireless Bridge Datasheet0401.pdf | 1MB | Download |
|
RGEST Series Wireless Webbased configuration Guide.pdf | 2MB | Download |
|
Ruijie RGEST310 Series Wireless Bridges Hardware Installation and Reference GuideV1.1.pdf | 803KB | Download |
