POSMarket SKU: Z18137

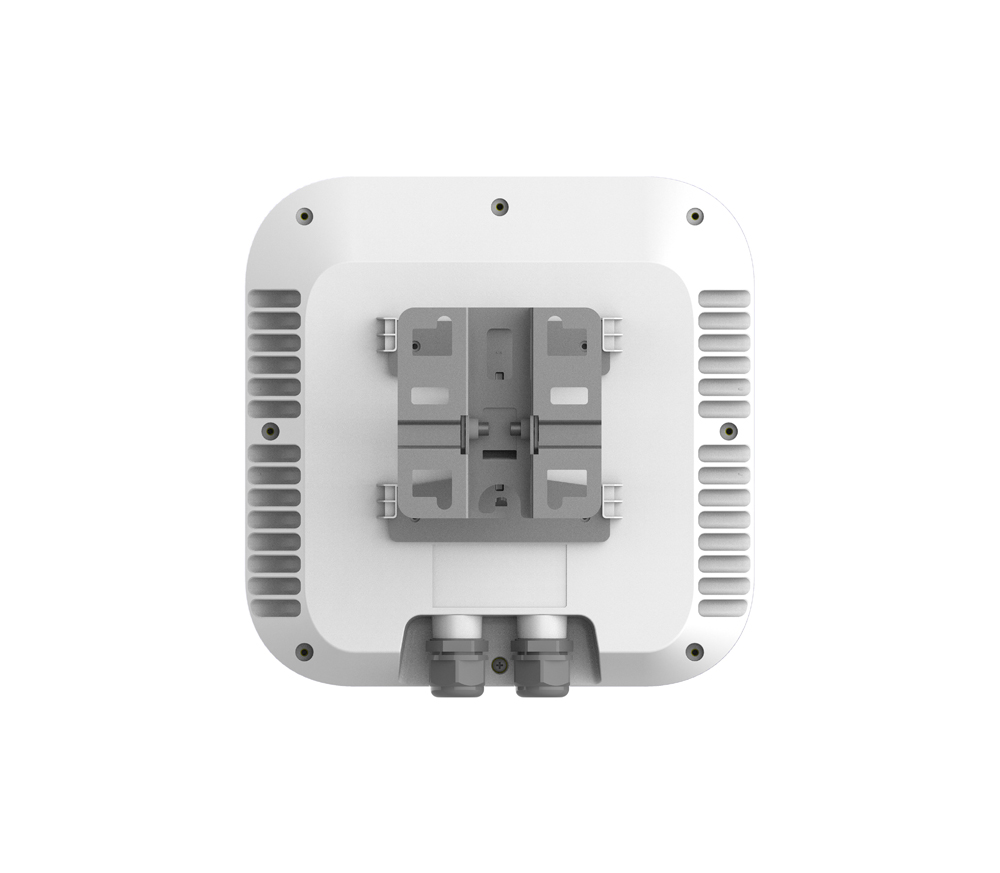

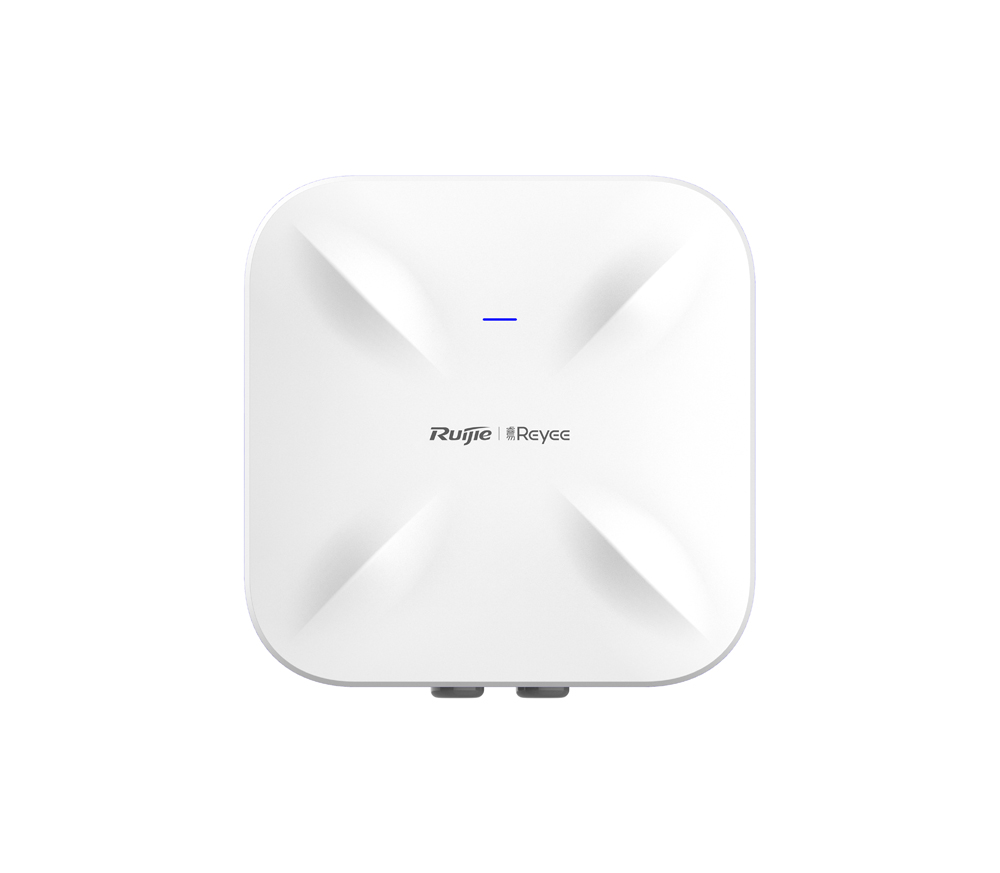

High-performance AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor Access Point
| RG-RAP6260(G) | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11a/b/g/n/ac/ax |
| Operating Bands | 802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific) |
| Antenna | Internal antennas (2.4G: 4dBi，5G: 6dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | Up to 575Mbps at 2.4G Up to 1200Mbps at 5G Totally 1775Mbps per AP |
| Modulation | DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM |
| Receive Sensitivity | 11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps) 11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） 11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11） |
| Maximum Output Power of the Transmitter (Single Stream) | 2.4GHz(2.4~2.4835GHz)：26dBm 5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm（country-specific，comply with local laws） |
| Adjustable Power | 1dBm |
| Dimensions | 298mm×298mm×65mm (excluding mounting kits) |
| Weight | ≤1.35kg (excluding mounting kits) |
| Service Ports | 1 10/100/1000 Base-T Ethernet port supports PoE INï¼› 1 100/1000 Base-X SFP Port |
| Management Port | N/A |
| LED Indicator | Single indicator (Blue light) |
| Power Supply | 802.3af/802.3 at PoE |
| Power Consumption | ≤17W |
| Bluetooth | Support |
| Environment | |
| Operating Temperature | -40°C～65°C |
| Storage Temperature | -40°C～85°C |
| Operating humidity | 0%～100%, non-condensing |
| Storage humidity | 0%～100%，condensing/non-condensing |

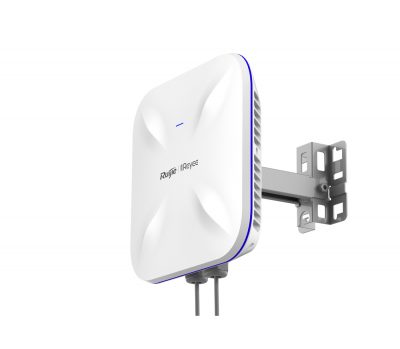

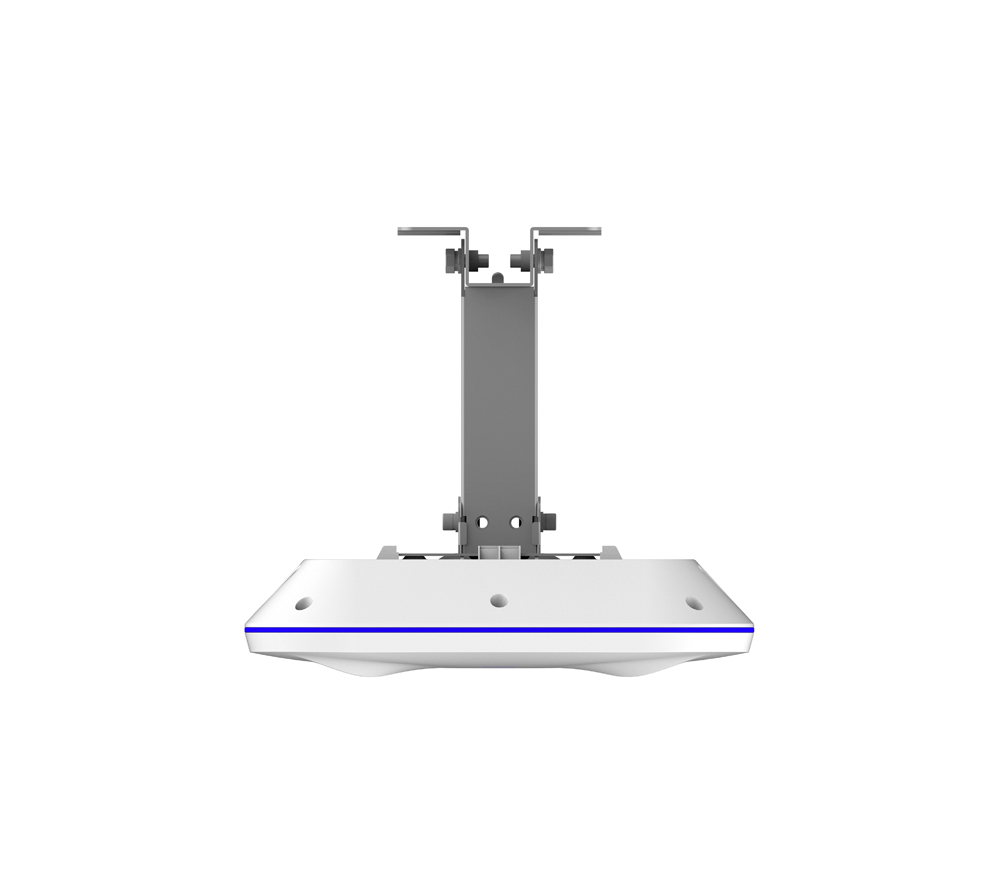

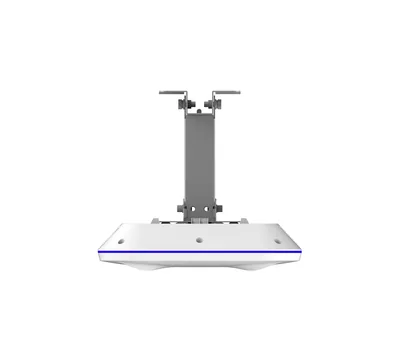

| Installation | Ceiling/Wall-Mountable |
| Safety Standard GB4943〠| IEC 60950-1 |
| EMC Standard GB9254 | ã€EN301 489，EN50155：EN50121 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328，EN301 893 |
| MTBF | >400000H |
| WLAN | Maximum number of clients: 512 Recommended number of clients: 100 Up to 8 SSID Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support layer 2 and layer 3 roaming |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial |
| Management and Maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud APP Support local management with web Support remote management with Ruijie Noc Cloud platform |
| Platform Management Features | Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| RG-RAP6260(G) | Outdoor AP | $442.75 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
RGRAP6260G AP Datasheet | 8MB | Download |
|
RGRAP6260G AP Installation and Reference Guide.pdf | 939KB | Download |
