POSMarket SKU: Z2047
This product has been replaced by the Bixolon SRP-275III. If you need this particular model rather than the replacement please contact one of our sales team on 1300 737 998.

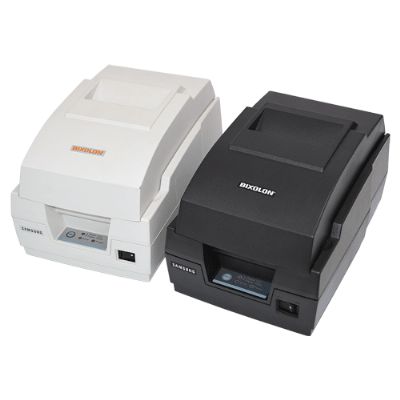

The SRP-270 is a Dot Matrix printer in the BIXOLON printer line-up which is fully packed with features and performance that are unmatched in a Dot Matrix printer. The SRP-270 is an ideal single station Dot Matrix printer for Retail and Hospitality applications and offers the same reliable quality you have come to expect from Bixolon.
Printing Method | 9 Pin Serial Dot Matrix Bi-directional Printing |
Printing Width | Up to 63.5 mm |
Dot Pitch | 80 dpi horizontal 144 dpi vertical |
Printing Speed (Max.) | 40 Column Printer Approx. 4.6 lines/sec |
Number of Columns | Font A: 33 Column Font B: 40 Column KOR: 20 Column CHN: 22 Column |
Character Size | Font A: 9 x 9 Font B: 7 x 9 KOR: 17 x 9 CHN: 16 x 16 |
Character Table/Code Pages | Alphanumeric: 95 Extended Graphics 128 x 7 Page International: 32 |
Bar-code Type | N/A |
Line Spacing | N/A |
Paper feed method | Friction |
Paper Type | Plain Bond Paper, 2 ply Paper or 3 ply Paper |
Paper Width | 76 mm +/-0.5 mm |
Paper Roll Diameter | Max 83.0mm |
Paper Thickness | 0.06 ~ 0.085 mm |
Paper Supply Method | Easy Paper loading |
Auto Cutter | SRP270C: Quilotine cutter |
Indicators/Controls | Power LED Green Paper LED Red Error LED Red |
Emulation | BXL/POS |
Print Buffer | 4K bytes |
NV Memory | 17 KBytes (Mono) |
Sensors | Paper end, Paper near end Sensor |
Drawer Port | 1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
External Device Port | N/A |
Interfaces | USB V1.1 FS RS232 Serial RS485 Parallel |
Driver available | Windows Driver, OPOS Driver, Linux CUPS ,Mac Driver |
Software Utilities | Utility Program |
Power Supply | External AC Adapter Rated input: 100-240 AV, 50/60 Hz |
Power Consumption | N/A |
External Dimensions (WxDxH) | SRP270A: 160 x 249 x 130 mm SRP270C: 160 x 249 x 149 mm |
Weight | SRP270A: 2.3 Kg SRP270C: 2.4Kg |
Operating Environment | 0 to 40 °C, 10 to 80 % RH (no condensation) |
Storage Environment | -20 to 90 °C, 10 to 90 % RH (no condensation) |
Reliability | 18 million Characters TPH: 300 Million Dots/Wire Auto Cutter: 0.5 Million Cuts |
EMC/Safety Standards | TUV-GS, CE marking, C-tick |
Model | Description | Price | Stock | |
---|---|---|---|---|
SRP270CIG/GOD | SRP-270 printer. Dark Grey, Auto-cutter, No Interface (must add interface) | $356.13 | Add to Cart | |
SRP-270CP/GOD | SRP-270 printer. White, Auto-cutter, Parallel Interface | $342.38 | Add to Cart |
Model | Description | Prices From | |
---|---|---|---|
POSMarket Ink Ribbons | Ink printer ribbons and supplies. | $4.54 | View Product |
POSMarket Paper Rolls | Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks. | $4.62 | View Product |
Goodson CAB-PR9F25M | RS232 Serial Cable DB9F to DB25M | $10.48 | View Product |
POSMarket CAB-PAR1.8 Parallel | Parallel Cable 1.8m | $31.19 | View Product |
Goodson CAB-PRUSB USB 2.0 | USB 2.0 A to B Cable | $6.34 | View Product |
Bixolon Interface Board SRP-F/S printers | Bluetooth; Ethernet; Parallel Serial Interface Board SRP-350PLUSIII/SRP-F310/SRP-F310II/SRP-380/SRP-S300 | $37.95 | View Product |
Calibor Bond Paper 76MM X 76MM 50 Rolls/Box Plain | Bond Paper 76MM X 76MM 50 Rolls/Box Plain | $56.21 | View Product |
Calibor Bond Paper 76X76 4 Rolls / Box | Bond Paper 76X76 4 Rolls / Box | $12.32 | View Product |
Calibor 3Ply Paper 76X76 50 Rolls / Box | 3Ply Paper 76X76 50 Rolls / Box | $98.56 | View Product |
POSMarket 2PLY Paper 76X76 50 Roll Box Plain | 2Ply/ 1 ply Plain Paper Roll | $67.30 | View Product |
Generic Compatible Ribbon Range for POS Printers | A large range of Ribbon Cassetes to suite many brands of POS Printers, Kiosk Printers, EFTPOS Machines, Logging Printers and Cash registers. | $5.31 | View Product |
Goodson Interface Fitting Charge | GOODSON Interface Fitting Charge | $27.50 | View Product |
POSMarket USB PRINTER CABLE A-B BLACK 2M | USB cable A to B for Printers | $11.55 | View Product |
Goodson USB Cable | USB Cable A to A; USB 2.0 A to B Cable | $6.90 | View Product |
Filename | Size | ||
---|---|---|---|
![]() |
SRP270 user manual | 794KB | Download |
![]() |
srp270 brochure | 760KB | Download |
