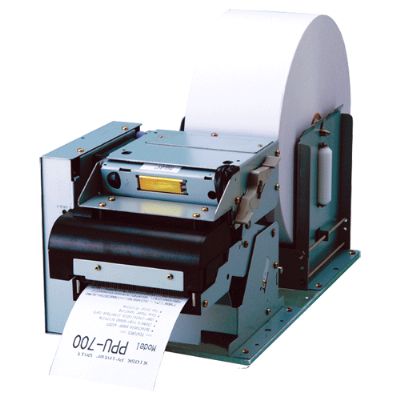

Citizen PPU-700
POSMarket SKU: Z2224
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
With a print speed of 150mm/sec, our PPU700 thermal printer, offers the flexibility to be used with a range of user selectable paper widths, from 58 to 83mm. The unit features a simple but efficient paper handling path, with an integrated paper presentation and retract system. There is a choice of interface cards, standard bitmap data registration and the option of a label or black mark function, while configuration is customisable via a software interface.
Product Overview
- 150 mm/sec high speed printing
- Easy Paper Handling: Presenter feeds out paper after docket is fully printed
- Selectable Paper width
- Two Colour printing
- Thicker Paper Capability (0.065-0150mm)
- Paper Auto loading
- Bar-code Printing
- NV Bitmap registration
- Easy customization software
- Capable of loading large diameter roll
- Either Serial (RS232), Parallel (Centronics) & USB User-installable Interface cards available.
- Equipped with Paper end sensor & Paper near end sensor
Product Specifications
| Printing Technology | Direct Thermal |
| Print Speed (maximum) | 150 mm /sec. |
| Print Width (maximum) | 54 / 60 / 72 /80 mm (on 58 / 60 / 80 / 83 mm paper) |
| Media Width (min to max) | 58 / 67 / 80 / 83 mm |
| Media Thickness (min to max) | 65 to 150 μm |
| Roll Size (max), Core Size | 203 mm outside diameter |
| Flash (Non-Volatile Memory) | 256K bytes |
| Size (W x D x H) and Weight | PPU-700: 163.2 (incl. control PCB) x 176 x 143mm, 2.1 Kg |
| Barcodes | UPC-A
UPC-E EAN-13 (JAN-13) EAN-8(JAN-8), Codabar, ITF CODE39 CODE93 CODE128 CODABAR(NW-7) |
| Media type | Thermal receipt paper |
| Cutter | Guillotine type, full and partial |
| Power supply | Input voltage: DC 24V+/- 7% |
| Reliability | 100 Million pulses or 100 Km, 1 million cuts |
| EMC and safety standards | CE
TUV UL C-UL (FCC class A) |
| Number of columns | On 80mm paper up to 48 digits (12 x 24 font A)
On 80mm paper up to 64 digits (9 x 17 font B) On 80mm paper up to 72 digits (8 x 16 font C) On 58mm paper up to 48 / 40 digits (9 x 17 font B) On 58mm paper up to 36 / 30 digits (12 x 24 font A) |
| Character table / Code page | Katakana
Thai code18 WPC1252 437 850 852 857 858 860 863 865 866 |
| Line spacing | 4.23mm (1/6 inch); adjustable by user command |
| Paper | Nippon Paper TF62KS-E
Nippon Paper TF50KS-E-2D |
| Input buffer | 4K bytes / 72 bytes |
| Operation environment | 0 to +50 C, 10% - 90% RH, non condensing |
| Storage environment | -20 to +60 C, 10% - 90% RH, non condensing |
| Power consumption | 100 W |
| Paper sensor | Paper near end sensor (adjustable, for PHU series) (Photo interrupter) |
| Blackmark sensor | Black mark sensor (Photo interrupter) |
| Resolution | 203 dpi |
| Optional interfaces | Serial (RS-232C compliant)
Parallel (IEEE 1284 compliant) USB |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| PPU700URKIT | Kit - Includes Printer (USB/RS232) , Roll Holder and Power supply | $1,025.41 | Add to Cart | |
| PPU700URSKIT | Kit - Includes Printer (USB/RS232) , Roll Holder (Side loading) and Power supply | $1,025.41 | Add to Cart | |
| PPU700RU | Kiosk Printer, USB/RS232, Presenter Unit included | $829.47 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Paper Rolls | Large range of High Quality Thermal coated Paper rolls to suite most Point of Sale (POS) receipt printers, Cash Registers, EftPOS terminals, ATM's and kiosks. | $4.62 | View Product |
| Citizen Interface board | Serial Interface Board for the CTS20004000PPU700II Series printers | $64.35 | View Product |
| Citizen CTS310 Power Adapter | Adapter for CTS310, amp PPU | $204.60 | View Product |
| POSMarket USB PRINTER CABLE A-B BLACK 2M | USB cable A to B for Printers | $11.55 | View Product |
| Citizen PHU-331 | Paper roll Holder designed for use with the PPU700 | $112.86 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
PPU 700 PHU 331 Spec Sheet | 205KB | Download |
|
ppu700 700II User Manual | 2MB | Download |
|
PPU 700 Command Reference | 2MB | Download |
