POSMarket SKU: Z15713

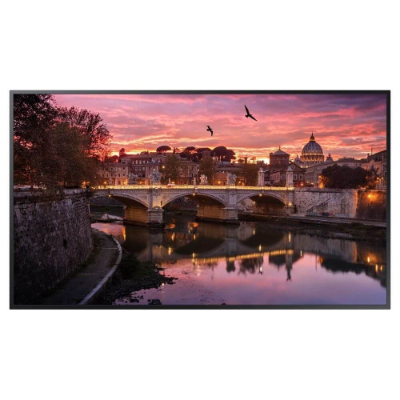

Samsung 55 Inch Screen Monitor, 4K
| QB55R | |
| Panel | |
| Diagonal Size | 55 |
| Type | Edge LED BLU |
| Resolution | 3840*2160 (4K UHD) |
| Pixel Pitch(mm) | 0.105 x 0.315 |
| Active Display Area(mm) | 1209.6(H) x 680.4(V) |
| Brightness(Typ.) | 350 nit |
| Contrast Ratio | 4000:1 |
| Viewing Angle(H/V) | 178/178 |
| Response Time(G-to-G) | 8ms(Typ.) |
| Display Colors | 16.7M(True Display) 1.07B (Ditherd 10bit) |
| Color Gamut | 92% (DCI-P3, CIE 1976) |
| Operation Hour | 16/7 |
| Haze | 2% |
| Display | |
| Dynamic C/R | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 594MHz |
| Sound | |
| Speaker Type | Built in Speaker(10W + 10W) |
| Connectivity | |
| Input | |
| RGB | DVI-D |
| Video | HDMI 2.0 (2) |
| HDCP | HDCP 2.2 |
| Audio | Stereo Mini Jack, DVI/HDMI/Audio(Common) |
| USB | USB 2.0 x 2 |
| Output | |
| Audio | Stereo Mini Jack |
| External Control | RS232C(in/out) thru stereo jack, RJ45 |
| External Sensor | IR |
| Power | |
| Type Internal | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption | |
| Max[W/h] | 143 |
| Typical[W/h] | 108 |
| Rating[W/h] | 130 |
| BTU(Max) | 487.6 |
| Sleep mode | 0.5 |
| Mechanical Specification | |
| Dimension (mm) | |
| Set | 1235.1 x 707.9 x 46.3 |
| Package | 1402 x 858 x 163 |
| Weight (kg) | |
| Set | 18.1 |
| Package | 23.6 |
| VESA Mount (mm) | 200 X 200 |
| Stand Type | Foot Stand (Optional) |
| Bezel Width (mm) | 9.2mm(U/L/R), 11.2mm(B) |
| Operational | |
| Operating Temperature | 0 °C~ 40 °C Humidity 10 % ~ 80 % |
| Feature | |
| Key Features | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 |
| Orientation | N/A |
| Remote Control | N/A |
| Special Features | H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| Internal Player | |
| Processor | Coretex A72 1.7GHz Quad-Core CPU |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
| Clock Speed | 1.7GHz |
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit |
| Graphics | Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.) |
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG |
| IO Ports | USB 2.0 |
| Operating System | Tizen 4.0 (VDLinux) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| QB55R | Samsung 55 Inch Screen Monitor, 4K, 16 hours / 7 days per week operation warranty | $2,812.43 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
QB55R Datasheet.pdf | 2MB | Download |
