POSMarket SKU: Z15195

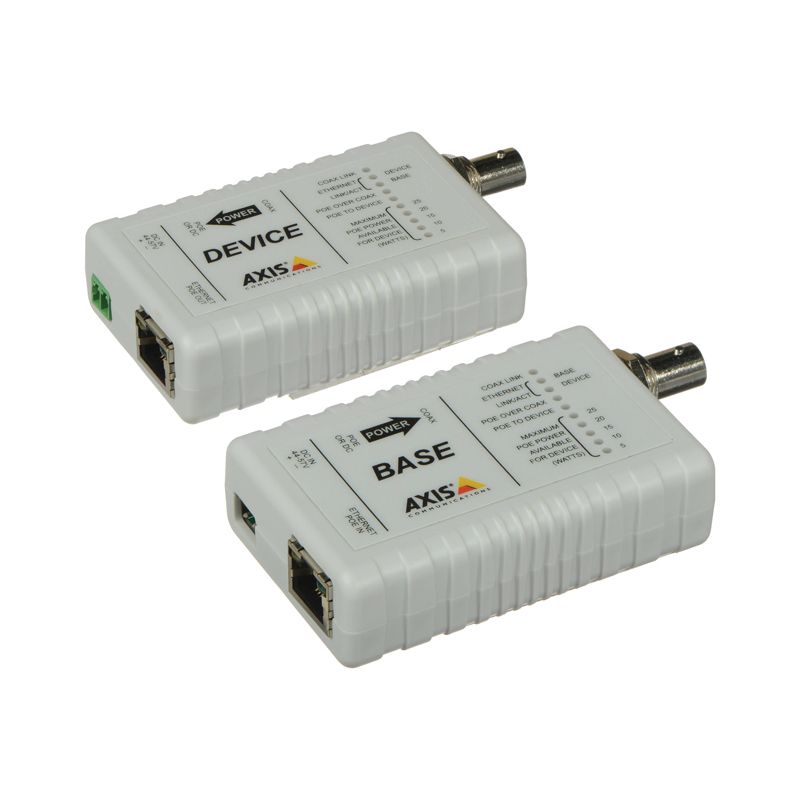

Axis' PoE+ over Coax Adapter Kit that gives cost-efficient migration to network video for smaller installations
| T8640 PoE+ over Coax Adapter Kit | |
| Data | |
| Data Rate | Coaxial cable: 100+100Mbps symmetrical to full range Ethernet cable: 100Base-TX Full Duplex |
| Connectors | Coaxial: BNC 75 ohms Ethernet: Shielded RJ-45, EIA 568A and 568B |
| Network Cables | Coaxial: Any 75 ohms coaxial (other impedances supported), to 1600' (500 m) at full rate Ethernet: patch or crossover, auto-detected shielded category 5 (or higher) |
| Power | |
| Output | AXIS T8641: PoE over coax with safe auto-detection and auto-cutout AXIS T8642: PoE (IEEE 802.3af/at) enabled to detected devices up to 25.5 W |
| Input | AXIS T8641: PoE (IEEE 802.3at Class 4 powered device) or DC power supply AXIS T8642: PoE over Coax or DC power supply DC Power supply: AXIS T8003 PS57 or 44 to 57 VDC Class 2 isolated supply (max 0.7 amps) Device power: 1.5 W |
| General | |
| Installation & Management | Plug-and-play installation; automatically detects PoE and High PoE-enabled devices and supplies in-line power Local LED management display |
| Display & Indicators | Network indicators: coax link, Ethernet link/activity x2 Power indicators: PoE over Coax, PoE to camera, maximum PoE power available for camera |
| Range | Low power PoE cameras using an 802.3af PoE switch (PoE IEEE 802.3af Class 1 or 2, < 6 W) CCS RG-59: 492’ (150 m) CC RG-59: 1148’ (350 m) CC RG-6: 1312’ (400m) CC RG-11: 1640’ (500m) Medium power PoE cameras using an 802.3af PoE switch (PoE IEEE 802.3af Class 1, 2 or 3, < 10 W) CCS RG-59: not supported CC RG-59: 1148’ (350 m) CC RG-6: 1312’ (400m) CC RG-11: 1640’ (500m) Full power PoE or PoE+ cameras using an 802.3af PoE switch (PoE IEEE 802.3af Class 3, >10 watts) or IEEE 802.3at Not Supported Custom High PoE cameras: PoE to camera not supported T8642 can be powered over coax cables with T8124 60 W Midspan for local power to camera |
| Compliance | IEEE 802.3af, IEEE 802.3at, RoHS, WEEE, CE |
| Mounting | Wall, rack, or din rail |
| Environment | Indoor |
| Approvals | FCC part 15, Class B with FTP cabling EN 55022 Class B (Emissions, PoE powered) EN 55022 Class A (Emissions, DC powered) EN 55024 (Immunity) |
| Operating Conditions | Temperature: 14 to 122°F (-10 to 50°C) Humidity: maximum 95% RH (non-condensing) |
| Storage Temperature | -40 to 165°F (-40 to 74°C) |
| Dimensions | 4.1 x 2.2 x 0.9" (104 x 54 x 24 mm) |
| Weight | 0.3 lb (140 g) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 5026-401 | T8640 PoE+ over Coax Adapter Kit, BNC & RJ45 | $1,004.85 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
T8640 Data Sheet.pdf | 642KB | Download |
|
T8640 Installation Guide.pdf | 1MB | Download |

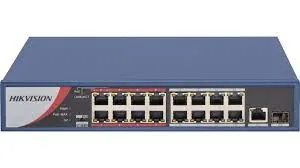

Hikvision DS-3E0318P-E/MB
Accessories > Switches and outlets
Hikvision DS-3D2228P
Accessories > Switches and outlets

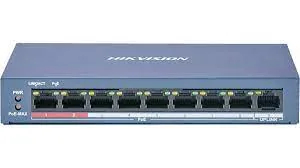

Hikvision DS-3E0109P-E MB
