Newland FM430
from $258.50 (incl. GST)
POSMarket SKU: Z8992
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

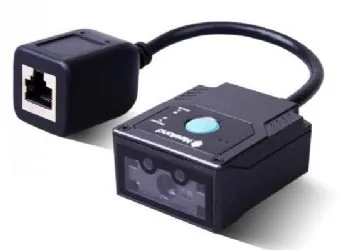

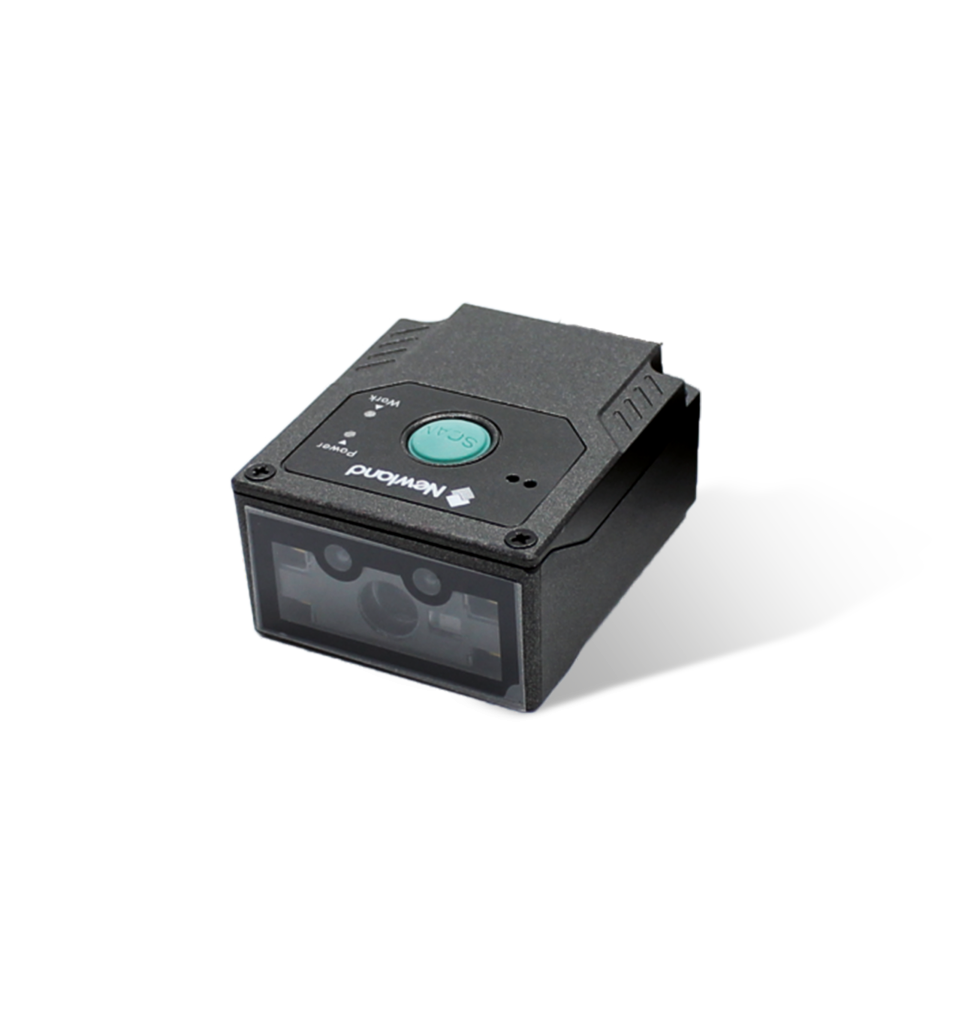

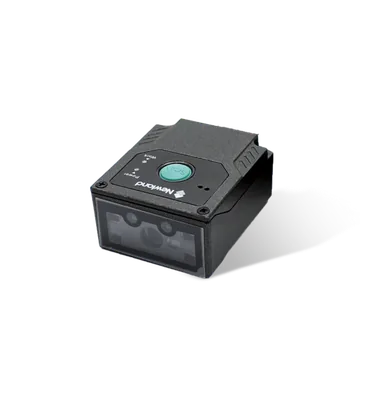

FM430 Barracuda 1D/ 2D Fixed- Mount Barcode Scanner. Unmatched Reading Performance.
Product Overview
The FM430 by Newland is there most aggressive and efficient fixed mount scanner to date. It's megapixel scan engine scans virtually any 1D and 2D barcode with impressive speed, exceeding the capabilities of similar scanners at a fraction of the cost.
Megapixel camera
The FM430 Barracuda is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small ones, with impressive speed and ease.
Snappy reading, in less than perfect conditions
A combination of the IR sensor and the light sensor helps to keep workers moving, even in low light conditions. Its strong, white light ensures barcodes are always well lit.
Handsfree or manual scanning
Companies looking for automatic scanning to relieve manual labour can set up the FM430 Barracuda for handsfree scanning. Alternatively, a manual trigger button can be used if preferred.
Intelligent programming
The sensors of the FM430 Barracuda automatically adjust the brightness of supplementary lighting based on the light that reflects off the barcode. This also makes it an optimal solution for scanning from mobile phone screens. Depending on the application, the scanner can be set to optimally read from close and long distance.
Reliable outdoor use
With an IP54 rating, this fixed mount scanner can be placed in a housing and used outdoors without worrying about dust or moisture.
Bright laser aimer (optional)
The FM430 Barracuda is available with a red cross laser that makes scanning easy and intuitive, even for the most inexperienced users.
Interface Options
The FM430 has the ability to use USB or Serial interface. It features an RJ45 connector so can be used with a supplied USB or Serial interface cable, or you can wire up a cable to suit your application (pin-outs are included in the user manual)
Applications
The FM430 is perfect for Self-service kiosks used in e-commerce, express delivery services, access control, loyalty, mobile payment, events ticket redemption, gaming cash outs, postal services, transport boarding passes, parking ticket machines, production line.
Megapixel camera
The FM430 Barracuda is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small ones, with impressive speed and ease.
Snappy reading, in less than perfect conditions
A combination of the IR sensor and the light sensor helps to keep workers moving, even in low light conditions. Its strong, white light ensures barcodes are always well lit.
Handsfree or manual scanning
Companies looking for automatic scanning to relieve manual labour can set up the FM430 Barracuda for handsfree scanning. Alternatively, a manual trigger button can be used if preferred.
Intelligent programming
The sensors of the FM430 Barracuda automatically adjust the brightness of supplementary lighting based on the light that reflects off the barcode. This also makes it an optimal solution for scanning from mobile phone screens. Depending on the application, the scanner can be set to optimally read from close and long distance.
Reliable outdoor use
With an IP54 rating, this fixed mount scanner can be placed in a housing and used outdoors without worrying about dust or moisture.
Bright laser aimer (optional)
The FM430 Barracuda is available with a red cross laser that makes scanning easy and intuitive, even for the most inexperienced users.
Interface Options
The FM430 has the ability to use USB or Serial interface. It features an RJ45 connector so can be used with a supplied USB or Serial interface cable, or you can wire up a cable to suit your application (pin-outs are included in the user manual)
Applications
The FM430 is perfect for Self-service kiosks used in e-commerce, express delivery services, access control, loyalty, mobile payment, events ticket redemption, gaming cash outs, postal services, transport boarding passes, parking ticket machines, production line.
Product Specifications
| PERFORMANCE | |
| Processor | 1GHz, X1500 |
| Image Sensor | CMOS 1280 x 800 |
| Illumination | White LED |
| Aiming | Laser diode or green LED |
| Scan Modes | Sense mode Continuous mode Level mode Pulse mode |
| Scan Rate | 60 frames per second |
| Depth of Field | EAN13 (13mil): 55 - 360mm CODE 39 (5mil): 70 - 180mm DPDF417 (6.67mil): 55 - 160mm Data Matrix (10mil): 50 - 170mm QR (15mil): 40 - 210mm |
| 1D Barcodes | EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar,UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25,COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code93, Code 49, Code 16K |
| 2D Barcodes | PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode,Micro QR, Micro PDF417, GM , Code One |
| MECHANICAL/ ELECTRICAL | |
| Dimensions | 41.5mm (W) x 49.5mm (D) x 24.3mm (H) |
| Weight | 75g |
| Material | PC, ABS |
| Interfaces | RS-232, USB |
| Notifications | Beep, LED indicator |
| ENVIRONMENTAL | |
| Drop Rating | 1.5m |
| Sealing | IP54 |
| Cable | USB Used to connect the NLS-FM430 to a host device. RS-232 Used to connect the NLS-FM430 to a host device. |
| OTHER | |
| Certifications | FCC Part15 Class B CE EMC Class B RoHS IEC60825 IEC62471 KC |
| Warranty | 2 years |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| FM430-RC | Newland FM430-RC. 2D Fixed scanner, 15cm Port, 2m RS232 interface cable, Power Adapter | $258.50 | Add to Cart | |
| SCNLNLSFM430LU | Newland FM430L. 2D Fixed scanner, USB interface cable | $CALL |
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
| Filename | Size | ||
|---|---|---|---|
 |
FM430 Barracuda Brochure | 2MB | Download |
|
FM430 User Guide | 4MB | Download |
